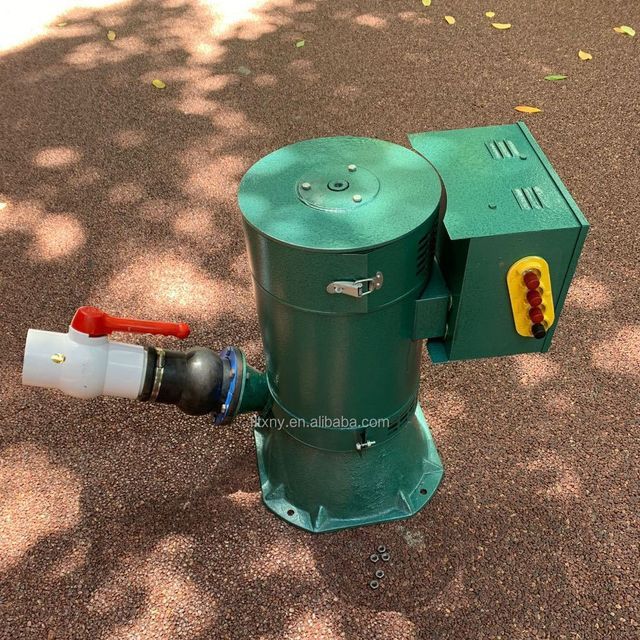

800w to 10kw hydro generator mini small hydro generator hydroelectric power

Product details
flow:0.009 cubic meters/secondapplication:generate electricity
Warranty:10 yearsCertification:CE
speed:500-1500 rpmPlace of origin:Jiangsu, China
strength:800 watts, 800 wattsflow:/
head:Homemade generator 220vbrand:FLTXNY
model:WP-800type:Water and electricity
weight:28kgcustom made:Yes
Package preview:payment terms:L/C, Western Union, T/T, MoneyGram
include:1x micro hydro generatorPackage Size:390x330x450mm
The output voltage:AC 220VVoltage:220 volts
Design header:/
1. Using the best NdFeB permanent magnets and high-grade pure copper windings, the generator can stably produce high power.
efficient. 2. Specially designed rotors and rotors have small starting resistance and good cooling effect. 3. No gears, direct connection
- Driven, low rare earth permanent magnet generator, easy to operate and maintain, safe. 4. Die-cast aluminum
Alloy shell, anti-corrosion, acid and alkali resistance, salt corrosion resistance Application: This unit can be used in remote areas
Temporary powers. The customer has connected this unit to a collapsible hose (fire hose) to provide temporary power while camping. suitable
Used for household lighting, televisions, electric stoves and other pure resistance household appliances. Not suitable for household appliances.
Such as refrigerators, washing machines, water pumps, etc. Installation procedure: After pouring concrete for the unit foundation
After solidification, install the unit in place and then water in sequence. Water level must be measured with water level gauge
Make sure the device is fixed in a horizontal position. The gap between the unit and the ground should be sealed with cement.
No water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. if
The machine is flexible and ready to install. Installation requirements: Close contact with the bottom surface of the turbine
with the base plane. Note: The 500w hydroelectric generator can only be used under the following two conditions: 1) Vertical water
The elevation difference between the unit foundation and the turbine generator must be within the range of 7-15M. 2) The water flow must be able to pass through fully.
Always fill water pipes with a diameter of more than 7.5cm

strength
500W
600W
800W
1000W
1500W
2000W
3000W
Voltage
220 (volts)
head
6-15m
7-15m
7-20m
10-25m
10-30m
flow
0.007 cubic meters/second
0.008 cubic meters/second
0.009 cubic meters/second
0.01 cubic meters/second
0.02 cubic meters/second
0.03 cubic meters/second
speed
500-1500 rpm
weight
23kg
25kg
28kg
35kg
38kg
55kg
58kg
pack
39x33x45 cm
43x35x45 cm
48x37x47 cm
5x4x55 cm
include
1x micro hydro generator
strength
4000W
5000W
Simplex
5000W
Three phases
10kW
20kW
Simplex
30kW
Three phases
40kW
Three phases
Voltage
400 (volts))
400 (volts)
head
10-35m
15-40m
30-60m
30-70 kilometers
30-80m
40-75m
flow
0.035 cubic meters/second
0.04 cubic meters/second
0.06 cubic meters/second
0.073 cubic meters/second
0.08 cubic meters/second
0.085 cubic meters/second
speed
1500 rpm
weight
64kg
82kg
82kg
145kg
220kg
235kg
245kg
pack
5x4x55cm
65x62x65
7x65x68
include

Advantages of Off-Grid Solar Systems
1.No access to utility grid
Off-grid solar systems are cheaper than extending power lines in some remote areas.
If you are more than 100 yards from the starting line, consider leaving the starting line. The cost of overhead transmission lines ranges from $174,000 per mile for rural construction to $11,000,000 per mile for urban construction.

2.Achieve energy self-sufficiency
It feels good to live off the grid and be self-sufficient. For some, this feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Off-grid wind systems will not be affected by utility grid outages.
Batteries, on the other hand, can only store a certain amount of energy, and on cloudy days, being connected to the grid is actually where the safety is. You should install a backup generator to handle such situations.
500W
600 watts
800w,1000w,1500w,2000w,3000w,4000w
5000w-40kw
