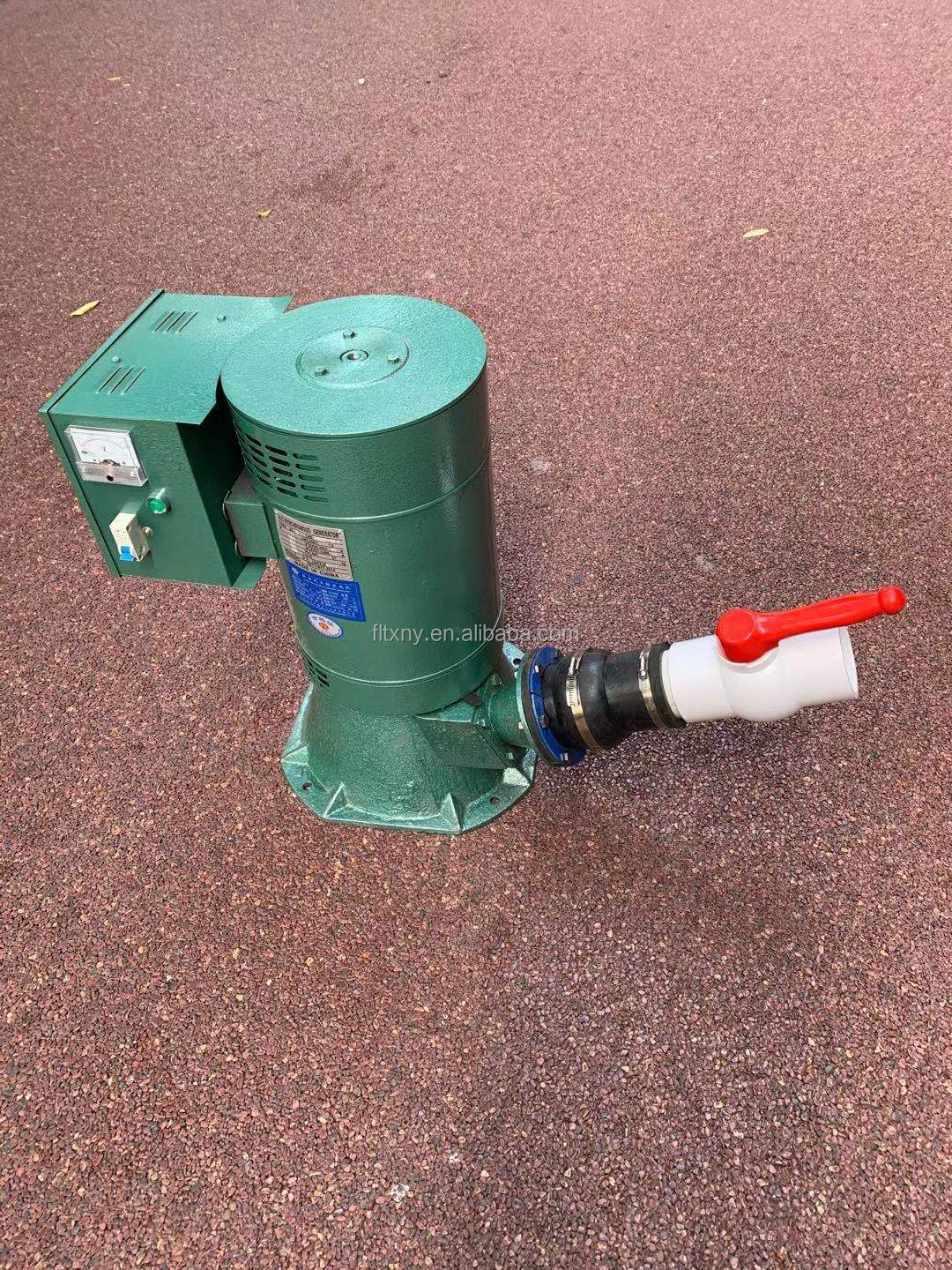

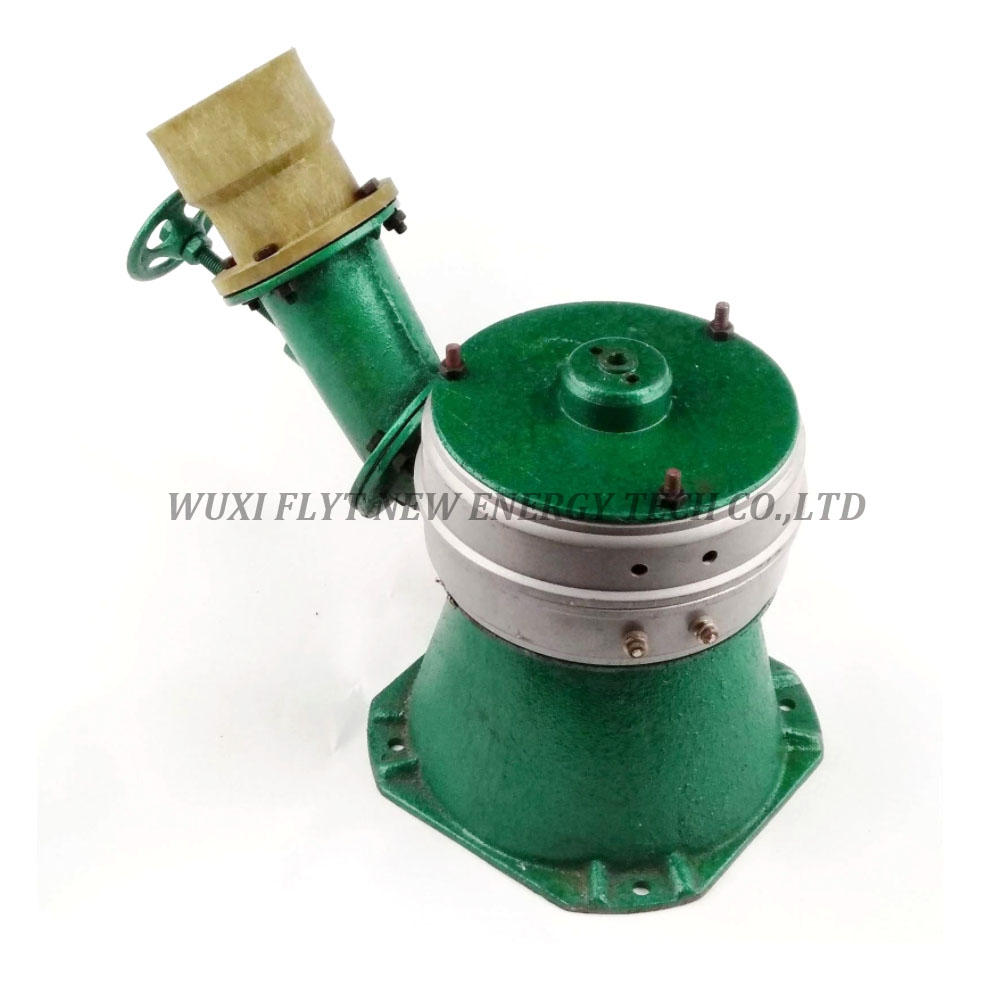

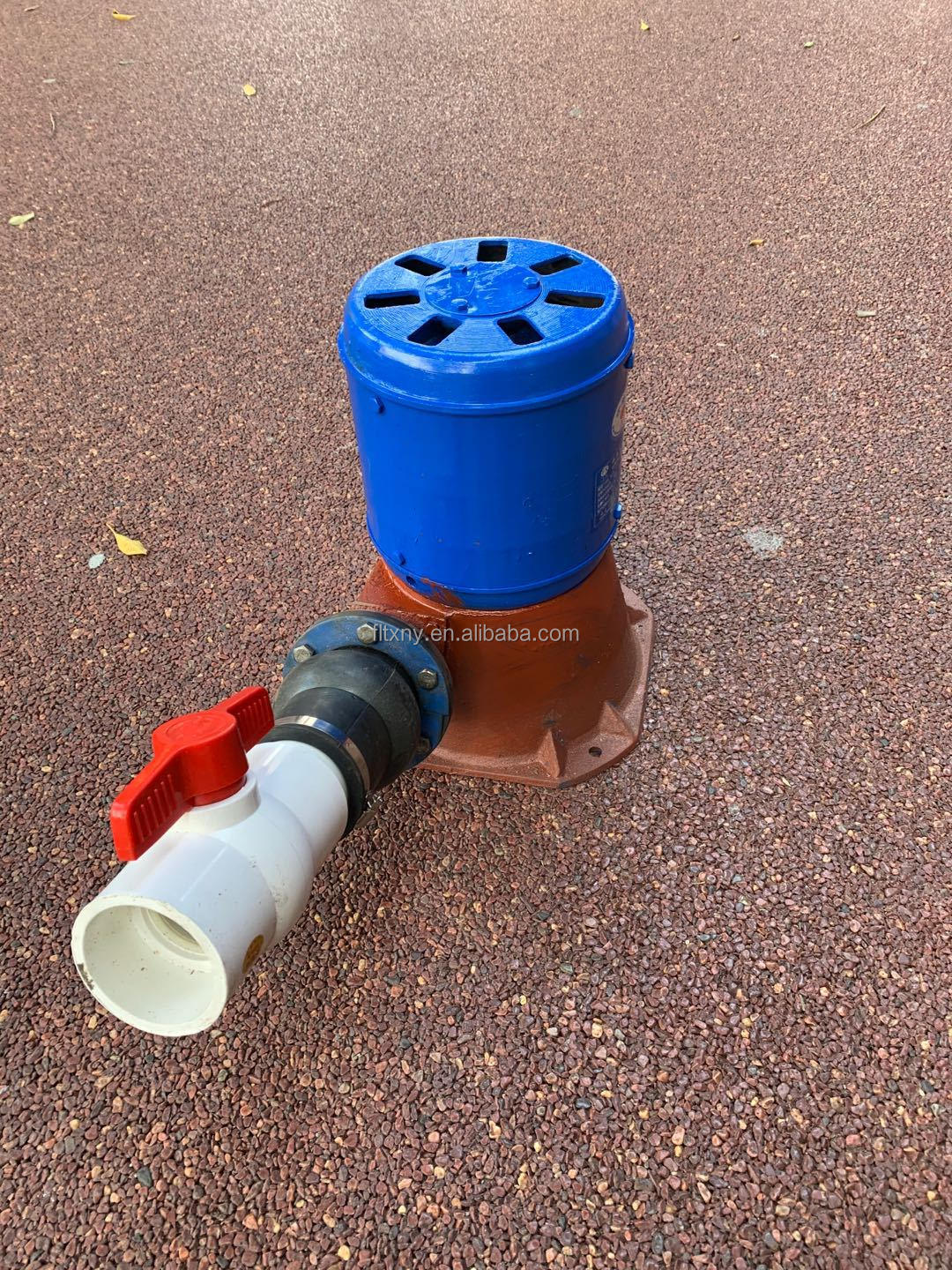

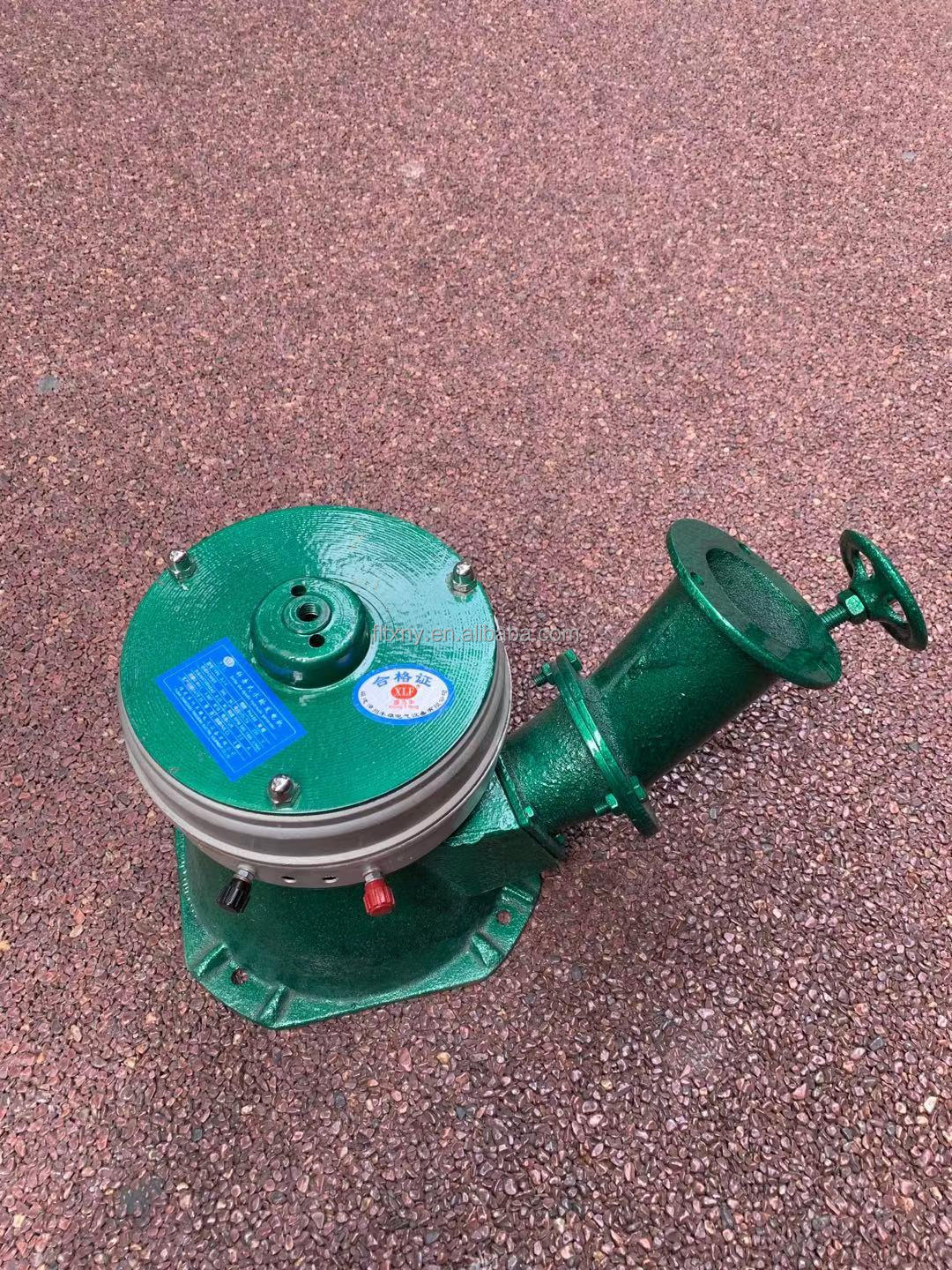

Micro Hydro Generator 5KW Micro Hydro Turbine For Hydro Generator Set

Supplier: Wuxi Flyt New Energy Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lora he
Price: $1946.00 / 1 - 1999 sets
$239.00 / >=2000 sets
Min. Order: 1 set

Click here to contact

Product details

custom made:	yes	weight:	28 kg
include:	1x Micro Hydro Generator	head:	Homemade generator 220v
payment terms:	L/C, Western Union, T/T, MoneyGram	application:	generate electricity
place of origin; place of origin:	Jiangsu, China	model:	WP-800
Design Leader:	/	flow:	/
Certification:	CE certification	flow:	0.009 cubic meters per second
The output voltage:	AC 220V	strength:	800w-10kw,800w-10kw
speed:	500-1500rpm	Types of:	hydropower
Package preview:		Package dimensions:	390x330x450mm
brand:	New York state	Voltage:	220 volts
Warranty:	10 years

1. Using the best NdFeB permanent magnets and high-grade pure copper windings, the output power of the generator is stable and the power is high
efficient. 2. Specially designed rotor and rotary body, small starting resistance and good cooling effect 3. No gear, direct
Drive, low rare earth permanent magnet generator, easy and safe to operate and maintain. 4. Die-cast aluminum
Alloy shell, anti-corrosion, acid and alkali resistance, anti-salt corrosion Application: This machine can be used in remote areas
temporary powers. Customers have attached this unit to a collapsible hose (fire hose) to provide temporary power while camping. suitable
For household lighting, TV, electric stove and other purely resistive household appliances Not suitable for household appliances

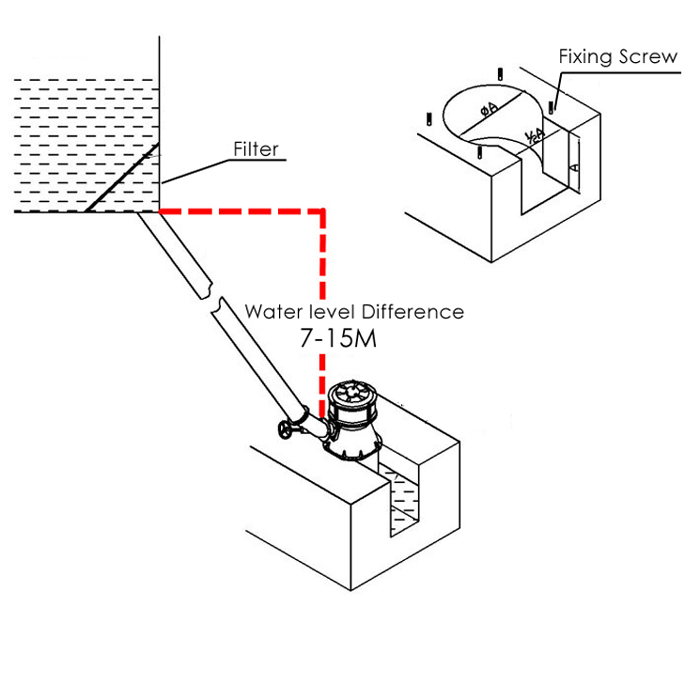

Such as refrigerators, washing machines, water pumps, etc. Installation steps: After the foundation of the unit is poured with concrete
After solidification, the unit is installed in place and watered in sequence. The water level must be measured with a level gauge to
Make sure the device is secured in a horizontal position. The gap between the unit and the ground shall be sealed with cement, and
Water seepage is not allowed. After the unit is installed, check it again and turn the turbine shaft of the water turbine by hand. if
The machine is flexible and the installation is complete. Installation requirements: close contact with the bottom surface of the turbine
with the base plane. Note: The 500w hydroelectric generator can only be used in the following two situations: . 1) Vertical water
The height difference between the foundation of the unit and the hydroelectric generator must be within this range: 7-15M 2) The water flow must be able to fully
Always fill the water pipe with a diameter of 7.5cm or more

strength

500W

600W

800W

1000W

1500W

2000W

3000W

Voltage

220 (five)

head

6-15 meters

7-15 meters

7-20 meters

10-25 meters

10-30 meters

flow

0.007 cubic meters per second

0.008 cubic meters per second

0.009 cubic meters per second

0.01 m3/s

0.02 cubic meters per second

0.03 cubic meters per second

speed

500-1500rpm

weight

23 kg

25 kg

28 kg

35 kg

38 kg

55 kg

58 kg

pack

39x33x45cm

43x35x45cm

48x37x47cm

5x4x55cm

include

1x Micro Hydro Generator

strength

4000W

5000W
Simplex

5000W
three phase

10 kW

20 kW
Simplex

30 kW
three phase

40 kW
three phase

Voltage

400 (V))

400 (volts)

head

10-35 meters

15-40 meters

30-60 meters

30-70 kilometers

30-80 meters

40-75 meters

flow

0.035 cubic meters per second

0.04 cubic meters per second

0.06 cubic meters per second

0.073 cubic meters per second

0.08 cubic meters per second

0.085 cubic meters per second

speed

1500 rpm

weight

64 kg

82 kg

145 kg

220 kg

235 kg

245 kg

pack

5x4x55cm

65x62x65

7x65x68

include

Advantages of off-grid solar systems
1.No access to the utility grid
Off-grid solar systems may be less expensive than extending power lines in some remote areas.
If you are more than 100 yards from the grid, consider going off grid. The cost of overhead transmission lines ranges from $174,000 per mile (for rural construction) to $11,000,000 per mile (for urban construction).

2.Achieving energy self-sufficiency
It feels good to live off the grid and be self-sufficient. For some, the feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Power failures in the utility grid will not affect off-grid wind power systems.
Batteries, on the other hand, can only store a certain amount of energy, and on cloudy days, being connected to the grid is actually where safety lies. You should install a backup generator for such situations.

500W

600w

800w, 1000w, 1500w, 2000w, 3000w, 4000w

5000w-40kw

Shipping methods and costs are not the best for all countries, please contact us to see the best shipping method to your address, we will try our best to give you the biggest discount.

1. Competitive price

--We are factory/manufacturer, so we can control production cost, then sell at the lowest price.

2. Quality controllable

--All products will be produced in our factory, so we can show you every detail of production and let you check the quality of your order.

3. Multiple payment methods

-- We accept online Alipay, bank transfer, Paypal, LC, Western Union, etc.

4. Various forms of cooperation

--We not only provide you with our products, if necessary, we can be your partner and design products according to your requirements. Our factory is your factory!

5. Perfect after-sales service

-- As a manufacturer of wind turbine and generator products for more than 4 years, we are very experienced in dealing with various issues. So no matter what happens, we will solve it as soon as possible.
