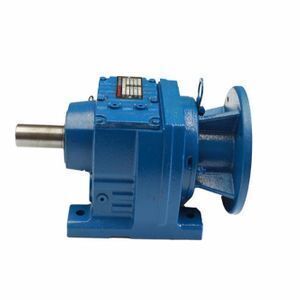

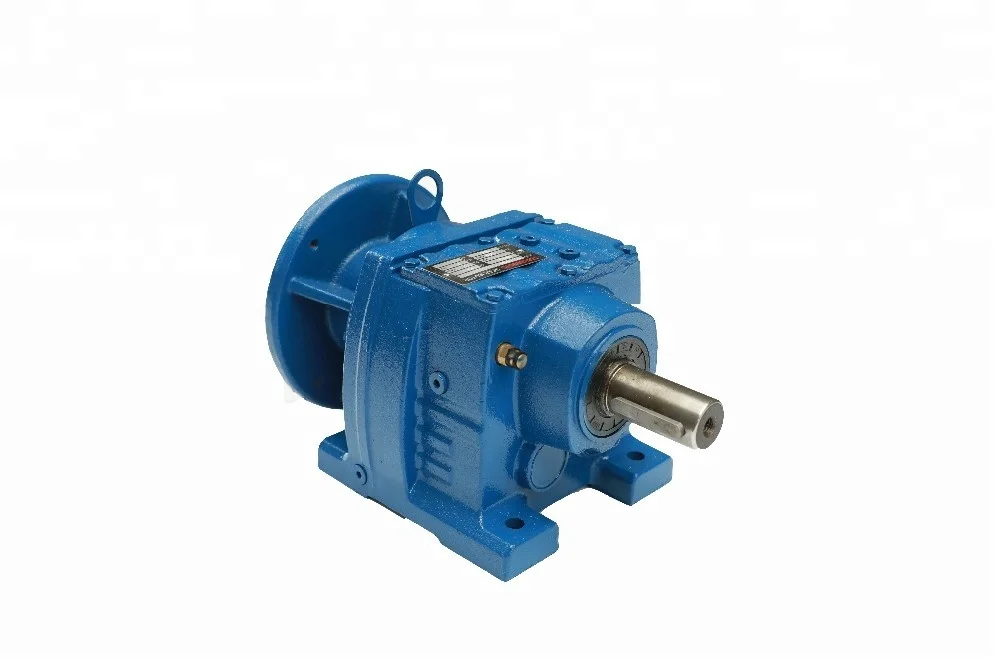

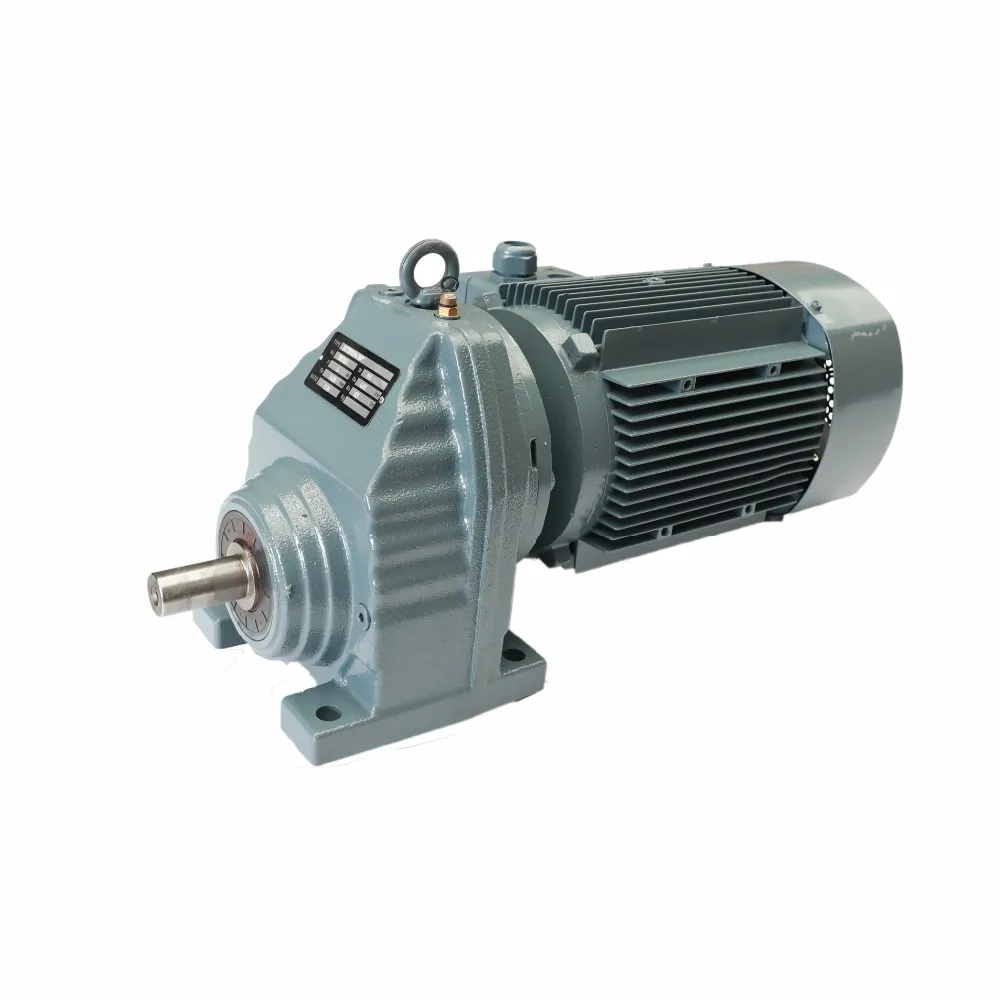

foot or flange mounted R series Helical Gear box

The products are easily connected with and driven by different types of motors or other kinds of input power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solutions for varied requirements.

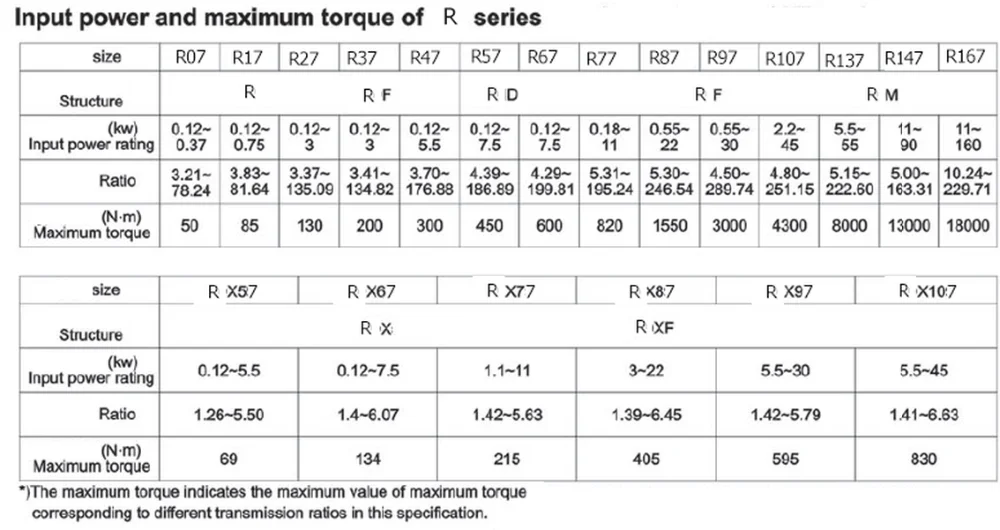

Ratio: Featured many closely divided ratios and wide range of hem. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.

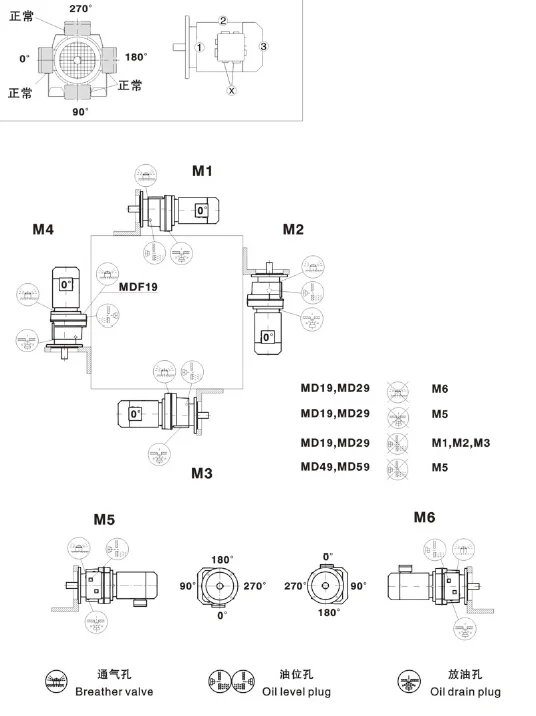

Mounting Arrangement: No strict limitation to the mounting arrangement.
High Strength, Compact Dimension: Housings are made of high strength cast iron, Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.
Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (except those easily disabled parts) can last as long as up to more than 25,000hours. Easily disabled parts include lubricating oil, oil seals, and bearings.
Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly how noise is reached.
High Efficiency: The efficiency of gear unit can reach 96%.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

about our service

(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
