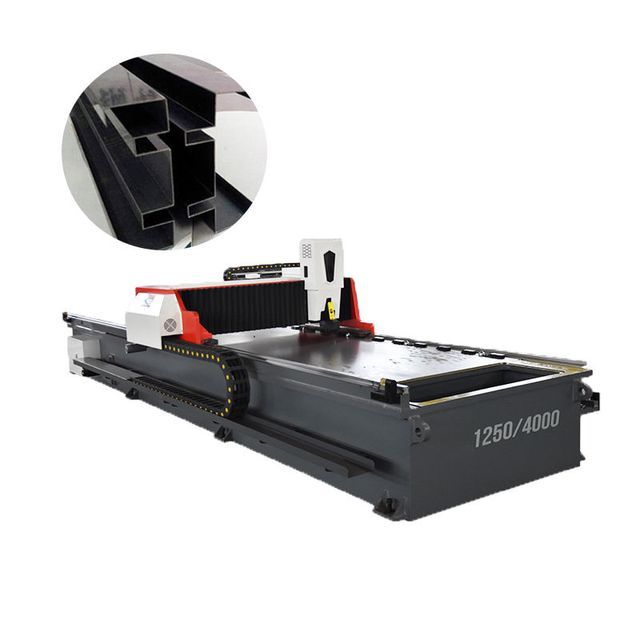

ALDM high safety level metal CNC gantry V-shaped slotting machine 4012 slot 3-axis Y1Y2 Z

Supplier: Nanjing Langdun Machine Tool Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr jackie rui
Price: $5000.00 / 1 - 4 sets
$4800.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	usage:	Shape grooving
Main selling points:	competitive price	Core component warranty:	2 years
payment terms:	L/C, Western Union, D/P, D/A, T/T	Supply capacity:	2 sets per month
Power (kW):	5.5	Core components:	Engine, motor, gear
Video outbound inspection:	if	V-groove milling cutter:	CNC V-shaped cutting machine
brand:	ALDM	Marketing type:	2020 new products
Cutting materials:	Metal stainless steel carbon steel	Mechanical test report:	if
application:	Steel plate grooving	product name:	Gantry type slotting machine
Key words:	Gantry metal grooving	Place of origin:	Jiangsu, China
Grooving thickness:	0.5-6mm	Weight (kg):	11000
Applicable industries:	Construction projects, machine repair shops, manufacturing plants	port:	Shanghai
Certification:	EU CE certification	Warranty:	2 years
Health status:	new	control:	CNC system

Product Description

This equipment is a fully CNC metal plate V-grooving machine. Adopting advanced CNC system and innovative design, it has the advantages of high processing precision, simple operation, no noise and no vibration. Widely used in processing irregular grooves such as V-shaped grooves and U-shaped grooves in metal sheets (including stainless steel, aluminum plates, aluminum plates, copper, iron, plastics, wood, acrylic plates and other special plates). Suitable for V-groove processing before sheet bending.

Model	maximum. Groove thickness(mm)	minute. Groove thickness (mm)	Grooving speed (m/min)	Knife LR resolution (mm)	Knife UD resolution (mm)	Position accuracy (mm)	pneumatic pressure (Public Affairs Administration)	aspect (length x width x height) (mm)
1220x2500	6	0.5	65	±0.001	±0.001	±0.01	6-8	4650x2300x1680
1220x3200	6	0.5	65	±0.001	±0.001	±0.01	6-8	5500x2300x1680
1220x4000	6	0.5	65	±0.001	±0.001	±0.01	6-8	6000x2300x1680
1220x5000	6	0.5	65	±0.001	±0.001	±0.01	6-8	7500x2300x1680
1220x6000	6	0.5	65	±0.001	±0.001	±0.01	6-8	8500x2300x1680
1500x4000	6	0.5	45	±0.001	±0.001	±0.01	6-8	6000x2550x1700
1500x6000	6	0.5	45	±0.001	±0.001	±0.01	6-8	8500x2550x1700

Our advantage

- The machine body is an all-steel plate welded structure with tempering aging and small deformation;
- Using numerical control (CNC) equipment for automated processing;
- Using pneumatic device, clamping and loosening are fully automated;
- The bottom surface of the planer can be adjusted after wear to extend the service life of the entire machine;
- Using five planers to work together, the planing efficiency is high;
- There is a removable bracket in front of the workbench to facilitate the processing of long workpieces;
- Full servo motor, accurate positioning and high precision;
- All operating systems of the machine are precisely integrated with electro-pneumatics, making operation easy and flexible.
It has high action efficiency, low noise and no environmental pollution.

detailed picture

CNC controller

Controlling machines is simpler, more convenient and more efficient

Hydraulic system

High pressure, reliable fastening force, low noise and low energy consumption

server Driver

Accurate positioning accuracy, short dynamic response time of motor deceleration, strong overload resistance, low heat generation and low noise

Front presser foot

The seal has been specially treated to double the pressure it can withstand, preventing the seal from being damaged by gouging wires and extending the service life of the front presser foot cylinder.

Linear Guides

The positioning accuracy is high, the wear is low, and the accuracy can be maintained for a long time. Suitable for high-speed movement, greatly reducing the driving horsepower required by the machine, while bearing up, down, left and right loads.

Application industry

ALWD has accumulated thousands of customers in 20 years of development. We insist on quality to survive and never lose any customers due to quality problems
