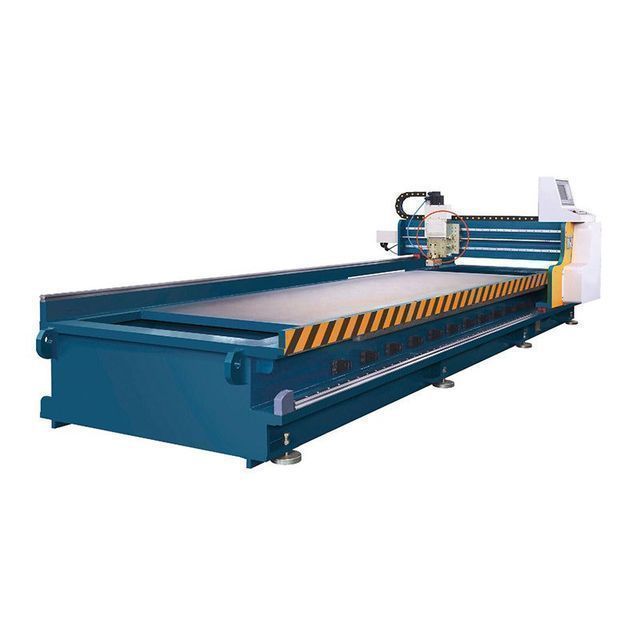

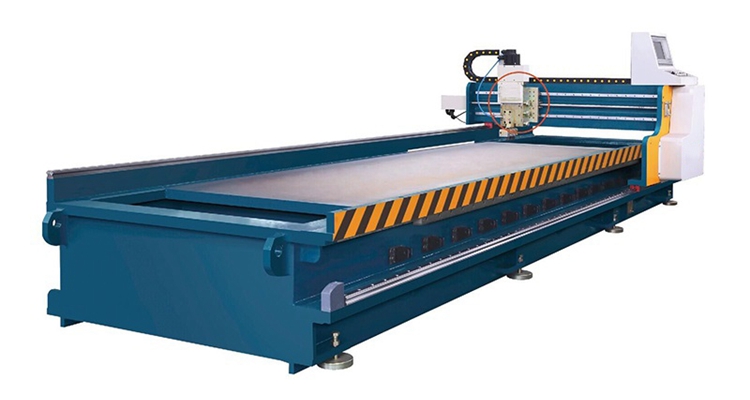

Automatic V Grooving Machine, Metal Grooving Machine, SS Grooving Machine Stainless Steel Cutting Machine

Click here to contact

Product details

Maximum processing width:	850-1500 mm	After warranty service:	Video technical support, online support, spare parts
Showroom location:	not any	Voltage:	380V 50HZ,220/380
Local service location:	Vietnam	application:	Steel plate slotting
Core component warranty:	1 year	port:	Shanghai
Packaging Details:	Bare wooden bag	color:	custom made
Weight (kg):	7500	product name:	CNC V-groove machine
type:	vertical gantry	Main selling points:	high accuracy
Applicable industries:	Energy and Mining, Household, Food and Beverage Stores, Hotels, Food and Beverage Plants, Construction Works, Building Materials Stores, Food Stores, Advertising Agencies, Machinery Repair Shops, Manufacturing Plants	place of origin; place of origin:	ANH
Maximum processing length:	6000 mm	OEM/Design Manufacturer:	Yes
usage:	Shape slotting	Video shipment inspection:	if
Health status:	new	Marketing Type:	normal product
payment terms:	wire transfer	brand:	NX
Core components:	PLC, engine, bearing, gearbox, motor, gear	Package preview:
Supply capacity:	100 sets per month	After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services, online support, free spare parts, video technical support
Power (kW):	7.5	Mechanical test report:	if
Certification:	CE ISO	Control System:	ASUS Taiwan
Warranty:	2 years	Dimensions (LWH):	590020502300

What are the features of our V-groove machines?

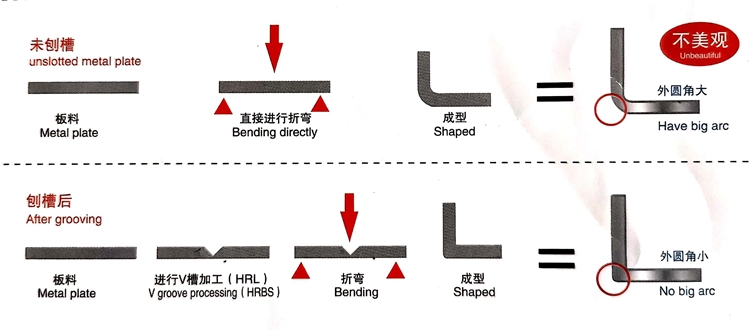

v miter groove

v Grooves can be made from any point on the plate

v minutes. The dimension of plate to slot is 100*100 mm.

v minutes. The width from plate to groove is 10 - 12 mm.

v power saving

v Environmental protection - no hydraulic oil

SI. number	title	unit	NX4015	NX6015
1	maximum. Slot width	mm	850-1500	850-1500
2	maximum. Slot length	mm	4000	6000
3	maximum. Grooving thickness	mm	0.5-6	0.5-6
4	Beam moving distance	mm	850-1500	850-1500
5	Beam moving speed	mm/min.	50-5000	50-5000
6	Maximum pallet moving distance	mm	4300	4300
7	Car moving speed	m/min	50	50
8	Length Tolerance	mm	+/-0.05	+/-0.05
9	position tolerance	mm	+/-0.05	+/-0.05
10	maximum. static travel	mm	100	100
11	total measurement	mm	590020502300

Model		NX3212	NX4012	NX6012
Material	Material	STS304 & Q345
	length	3200 mm	4000 mm	6000 mm
	width	1220 mm
	thickness	0.6 mm - 4 mm
	minute edge	8 mm

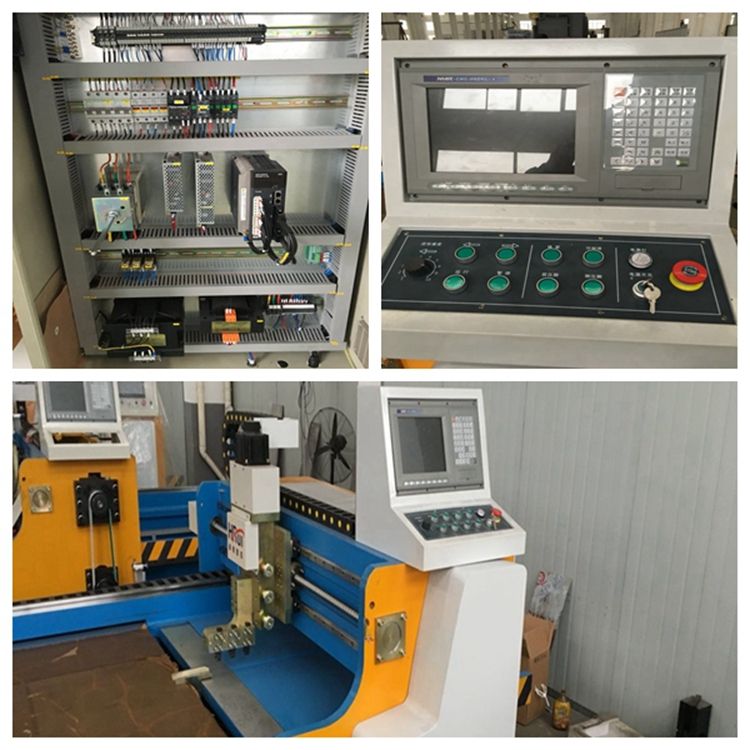

CNC Specifications	control type	4 axis CNC control - X Y1 Y2 Z
	exhibit	10-inch high-definition color LCD display
	Memory Capacity	20 groups of 112 SD cards are available
	work system	Ball screw/linear guide/rack and pinion
machine speed	X Forward - Cut	50M/min - adjustable
	X backwards	60 m/min
	Y1 & Y2 break	20 m/min
	Z up and down	20 m/min
machine precision	Y1 precision	0.01 mm
	Y1 itinerary	1250 mm
	Z precision	0.01mm
	Z stroke	50 mm
driving mode	x	4.5kw SEW variable frequency motor
	X - up and down	0.85 KW Yaskawa servo motor
	Y1	0.85 KW Yaskawa servo motor
	Y2	0.85 KW Yaskawa servo motor
clamping device	hydraulic	0.3-0.6MPa
total measurement	length	5200 mm	6000mm	8000mm
	width	2380mm
	high	1580mm
	weight	6200 kg	7500 kg	11000 kg
Table flatness		+/- 0.02 mm/m
main power		380V / 50HZ / 3 phase
