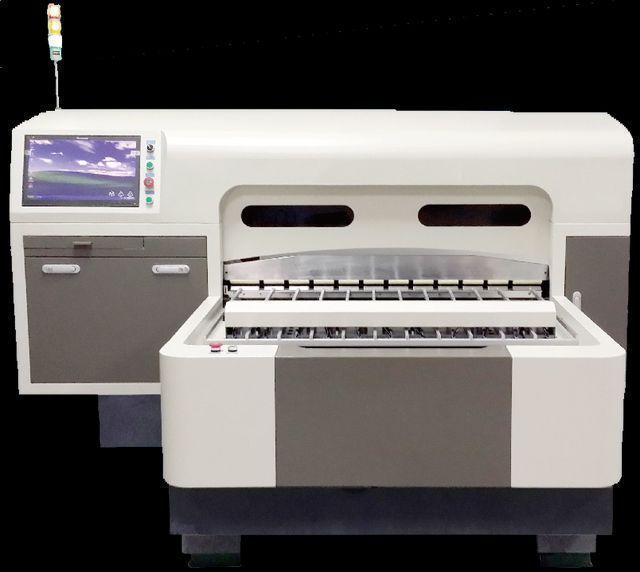

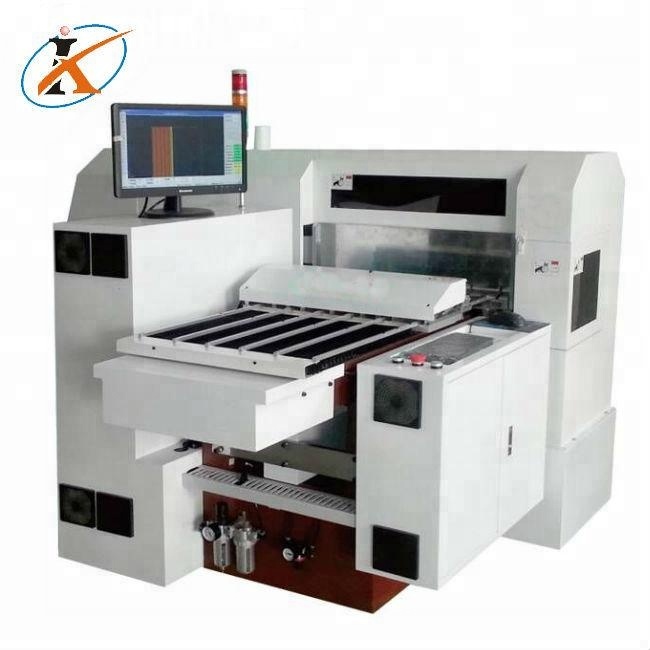

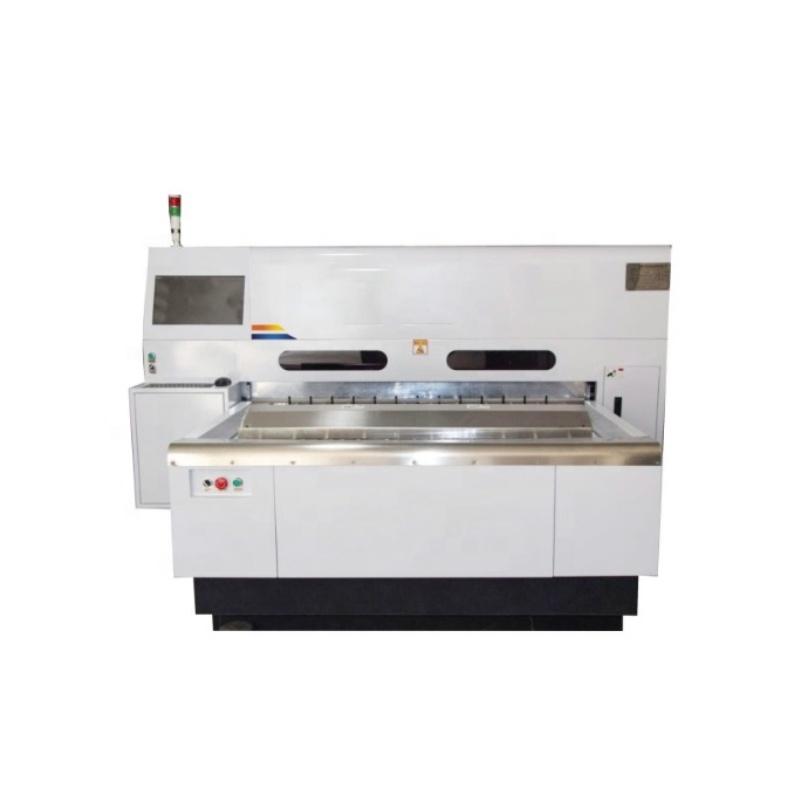

Low Price CNC V Knife Scribing Machine Jumping Knife PCB V Groove Cutting Making Machine

Click here to contact
Product details
Showroom location:IndiaVoltage:AC380V 4HP 50Hz
Packaging Details:wooden vacuum packVideo shipment inspection:if
Maximum processing area:680mm*650mmMechanical test report:if
V-cut parallel accuracy:±0.05mmbrand:Kexin
Supply capacity:10 sets per monthProcess thickness:0.3mm~3.2mm
Knife:12 blades (6 up and 6 down)Applicable industries:circuit board
After-sales service provided:Provide overseas third-party supportplace of origin; place of origin:Guangdong, China
Certification:International Organization for StandardizationPower (kW):3
Marketing Type:normal productWeight (kg):1500
year:2022Core component warranty:1 year
Main selling points:automaticDimensions (L*W*H):2000mm*1850mm*1400mm
payment terms:L/C, Western Union, D/A, T/TMinimum processing area:105mm*105mm
port:ShenzhenWarranty:1 year
State of health:newspeed:1~50m/min
Core components:not anyV-groove accuracy:±0.05mm
Processing position:Can reach 6.0mm from start to first cut
Technical Parameters
panel size
680mm×650mm
Panel minimum size
105mm×105mm
processing speed
0~50m/min
Processing thickness
0.3mm~3.2mm
Processing position
Can reach 6.0mm from start to first cut
Processing distance
Set by system parameters;
Fully closed loop control, automatic calibration
Knife jump frequency
Set by system parameters; unlimited
Precision
Residual thickness (X-axis accuracy): ±0.05mm
Parallelism: ±0.05mm
Pitch: ±0.05mm
Spindle speed
6000 rpm
Machine size
2000mm×1850mm×1400mm
machine weight
1500KG
strength
220V, 3KW, 50Hz
pressure
0.5MPa
vacuuming (air)
0.5MPa (5kg/cm²)
Electric control system introduction
The push plate adopts Mitsubishi or Fuji servo motor.
Accuracy 3μ;
Maximum speed 3,500 RPM, maximum power: 400W
The cutter shaft adopts Mitsubishi or Fuji servo motor.
Accuracy is 3μ;
Maximum speed 3,500 RPM, maximum power: 750W
Choose Mitsubishi or Fuji for the upper and lower cutters
servo motor. Accuracy is 5μ;
Maximum speed 8,000 RPM, maximum power 400W
The PLC module controller uses 6-axis motion
control can provide great stability
Electric control system introduction
The push plate adopts Mitsubishi or Fuji servo motor.
Accuracy 3μ;
Maximum speed 3,500 RPM, maximum power: 400W
The cutter shaft adopts Mitsubishi or Fuji servo motor.
Accuracy is 3μ;
Maximum speed 3,500 RPM, maximum power: 750W
Choose Mitsubishi or Fuji for the upper and lower cutters
servo motor. Accuracy is 5μ;
Maximum speed 8,000 RPM, maximum power 400W
The PLC module controller uses 6-axis motion
control can provide great stability
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is based on
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but do not pay for shipping.
Q: What is your MOQ?
A: 50pcs per size
Q: If it can be customized?
A: Yes, we can customize according to your requirements
Q: What's your payment terms?
A: Payment<=1000 USD, 100% in advance. Payment >= USD 1000, 50% T/T in advance, balance before shipment.
