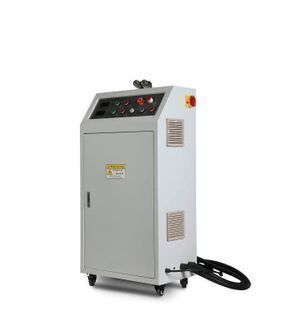

Atmospheric plasma treatment machine for surface cleaning and treating

With an adjustable power consumption of maximum 1000 W the BPS1000 is suitable for typical and high demanding plasma applications for cleaning and activation. Due to the high plasma performance the highest cycle time requirements can be reached.

Features:

High nozzle operating life
Wide range of nozzles
Optional potential-free
Set points:
Voltage
Override
Gas flow
Frequency
Ignition monitoring
Pressure monitoring
Regulation function
Double head version

Technic patameter

Input power supply: AC220V

Output power: 1650w

Output frequency:20-30khz

Inlet pressure:2-3bar

Machine size V1: 300(W)*550(D)*1000(H)mm

Machine size V2: 350(W)*630(D)*1130(H)mm

Processing Width:6-10mm

Weight V1: 55KG  Weight V2: 65KG

No. of plasma head: three heads

Surface treatment with Plasma treatment technology offers innovative solutions to adhesion and wetting problems in many industries.

Component preparation is an important step prior to bonding, painting, varnishing and coating processes. Plasma treatment provides an economical solution for the cleaning and activation of component surfaces before further processing. Plasma surface treatment improves wettability and adhesion of ink, glues and coatings on many different surfaces.

Plasma treatment provides surface treatment and an economical solution for the cleaning and activation of complex surfaces before further processing. This is especially true for profiles with complex surfaces that cannot be treated using regular corona treatment mechanisms.
