NN Type Connector Male RF Coaxial Connector Plug for LMR400 Cable for 3G 4G 5G LTE GPS WiFi RF Radio to Antenna
- 0.80 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging details: | Type N Connector N Male RF Coaxial Crimp Connector Plug for LMR400 Cable for 3G 4G 5G LTE GPS WiFi RF Radio to Antenna Standard Packaging (according to customer requirements) 1 piece in a plastic bag 2 100 piece pack In one carton 3 transparent plastic bags/standard export carton 4 according to customer requirements | Sales unit: | Single product |
| brand: | RF Wharton | Dielectric withstand voltage: | ≥2500V effective value, 50Hz |
| Single piece packaging size: | 10X10X10cm | impedance: | 50 ohms |
| Package: | Bag | Gross weight of single piece: | 0.030kg |
| describe: | N male crimp connector | Place of origin: | Jiangsu, China |
| insulator: | PTFE | Material: | brass |
| Insulation resistance: | 5000MΩ | letter of credit: | N male crimp connector |
| Certification: | CE/FCC/ROHS/ISO9001:2000 | type: | plug |
| model: | N male crimp connector, NM SKY 20 | plating: | Nickel plated or tri-metal |
| Low standing wave ratio: | Below 1.15(0-3Ghz) | frequency: | 0-6G |
Product Description

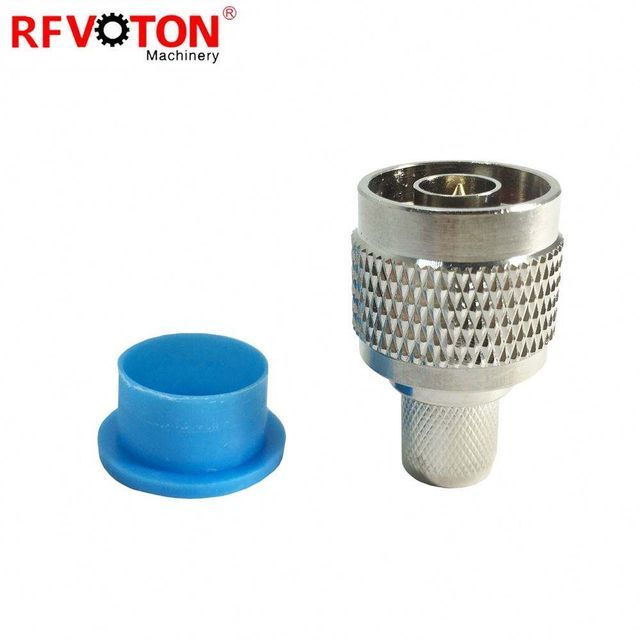

Type N Connector N Male RF Coaxial Crimp Connector Plug for LMR400 Cable for 3G 4G 5G LTE GPS WiFi RF Radio to Antenna
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We specialize in coaxial components
Our custom RF cable assemblies are built and shipped worldwide
50 Ohm RF cable assemblies can be ordered with the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 Ohm cable assemblies can be made using the following 75 Ohm connectors, e.g.
BNC, F, N, SMB, SMC, TNC and mini-SMB
RF cable assemblies include: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced in a variety of different connector types and custom lengths depending on your needs and applications. If you need a special RF cable assembly configuration not found here, you can call our sales department to create your own RF cable assembly configuration
We specialize in coaxial components
Our custom RF cable assemblies are built and shipped worldwide
50 Ohm RF cable assemblies can be ordered with the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 Ohm cable assemblies can be made using the following 75 Ohm connectors, e.g.
BNC, F, N, SMB, SMC, TNC and mini-SMB
RF cable assemblies include: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced in a variety of different connector types and custom lengths depending on your needs and applications. If you need a special RF cable assembly configuration not found here, you can call our sales department to create your own RF cable assembly configuration
temperature range | -40~+85℃ |
vibration | 100m/s2 (10~500Hz) |
impedance | 50 ohms |
Frequency Range | DC-11GHz |
Operating Voltage | Maximum 2700V |
Breakdown voltage | 4000V rms @ sea level |
Contact resistance | ≤0.4 OHM @ inner contact ≤1.5 OHM @ external contact |
average power | Maximum 3KW |
Insulation resistance | ≥10000M ohm |
standing wave ratio | ≤1.10 |
Durability (mating) | ≥500 (cycle) |

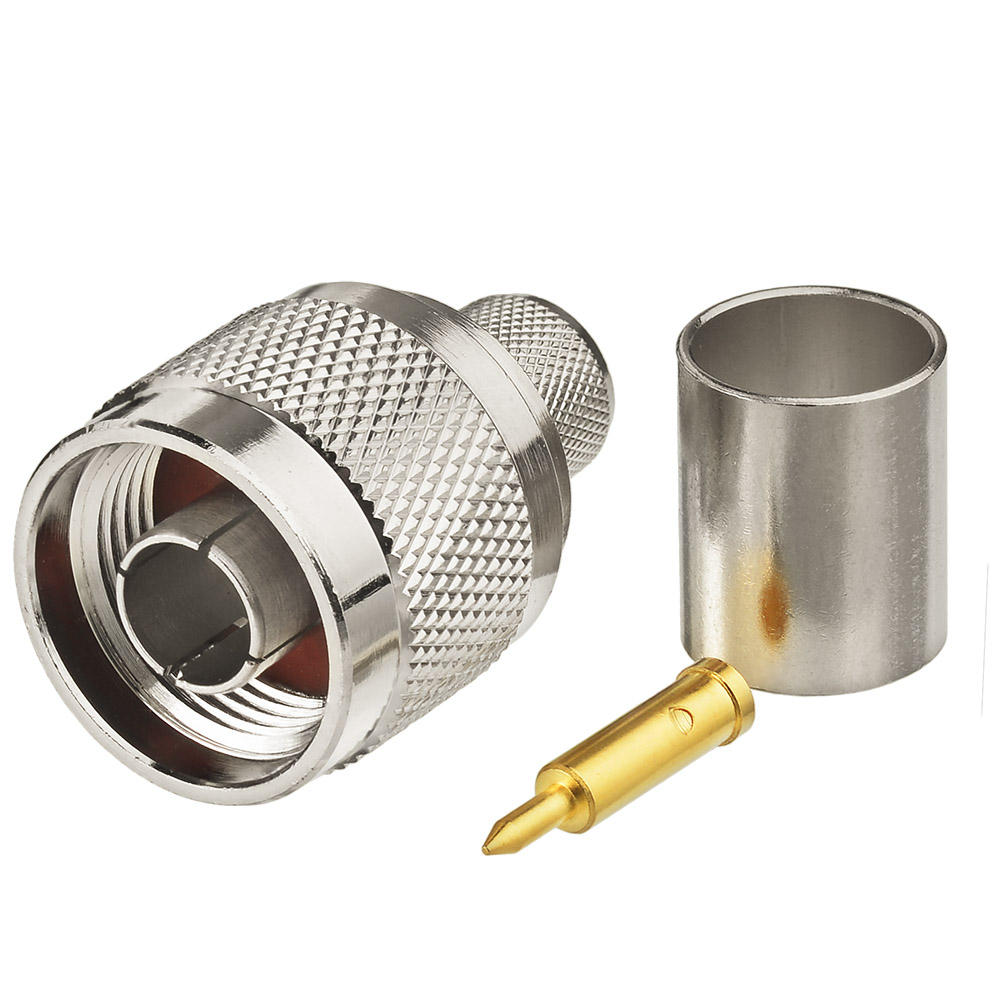

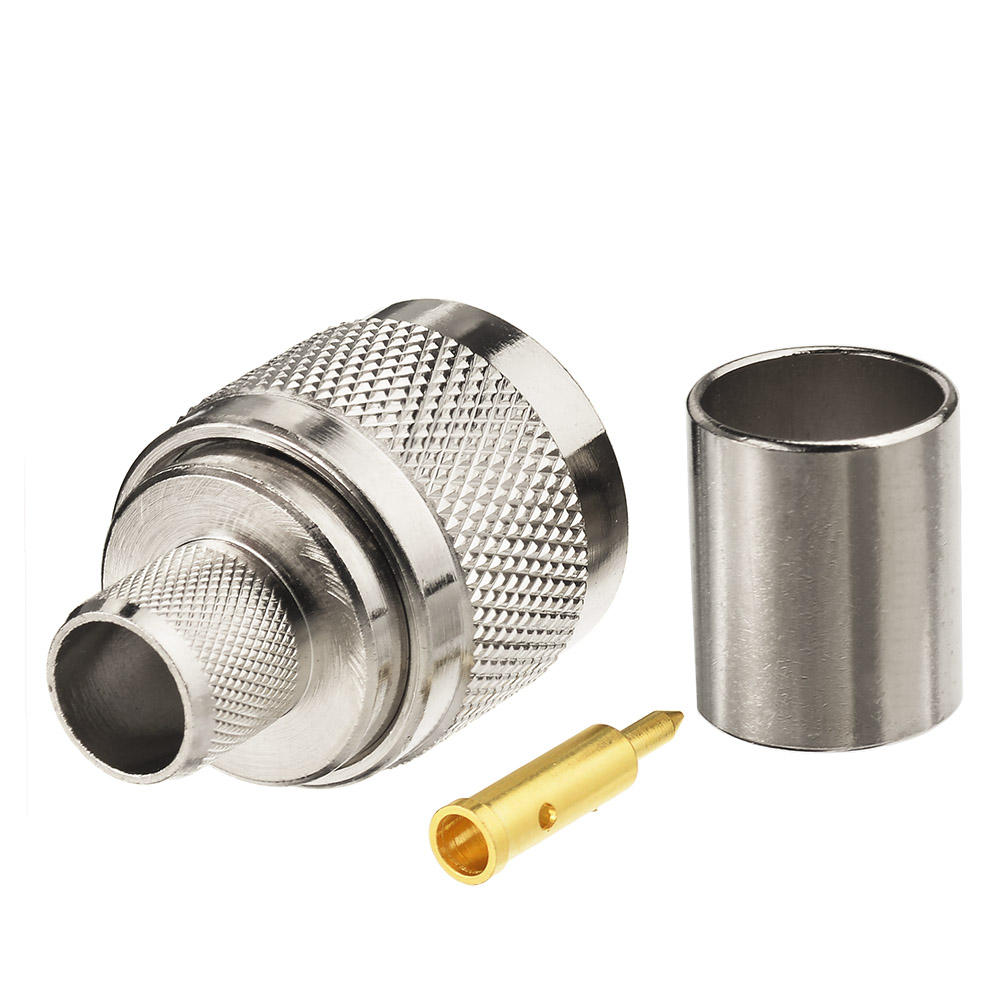

Type N Connector N Male RF Coaxial Crimp Connector Plug for LMR400 Cable for 3G 4G 5G LTE GPS WiFi RF Radio to Antenna
Material and plating

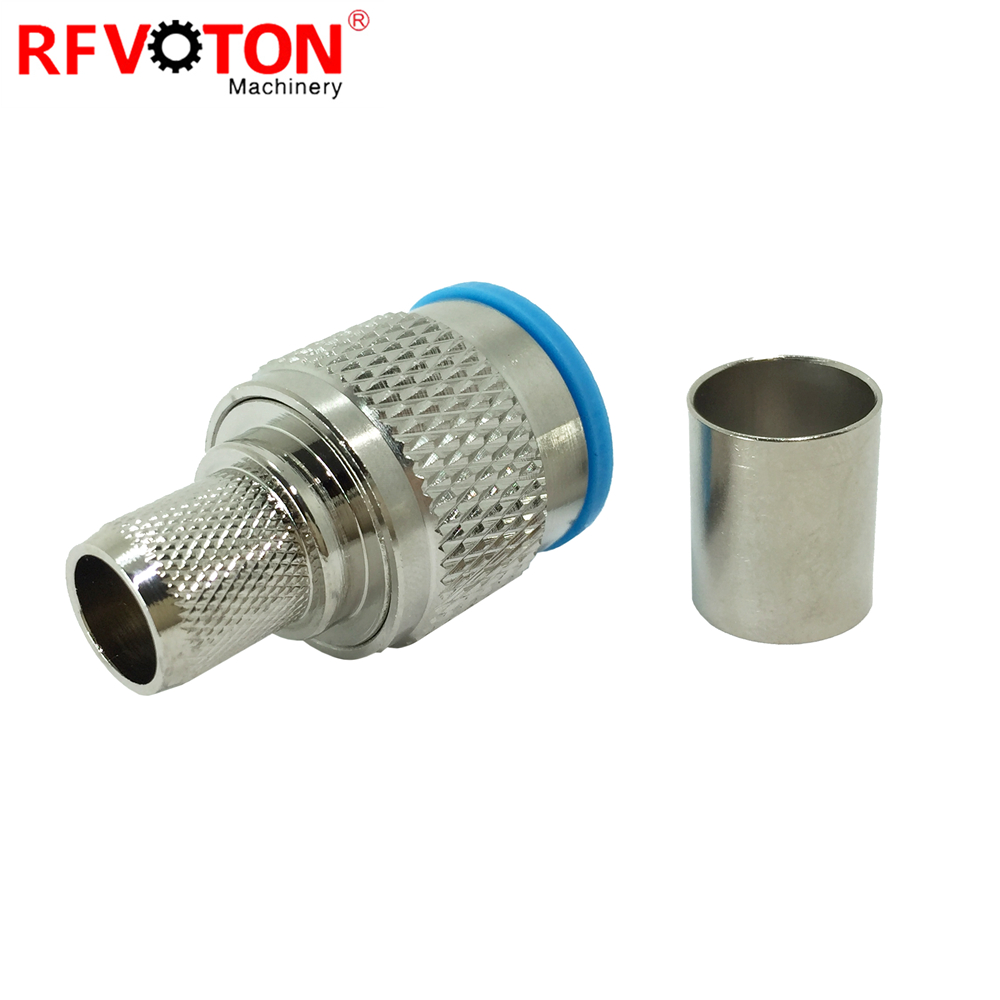

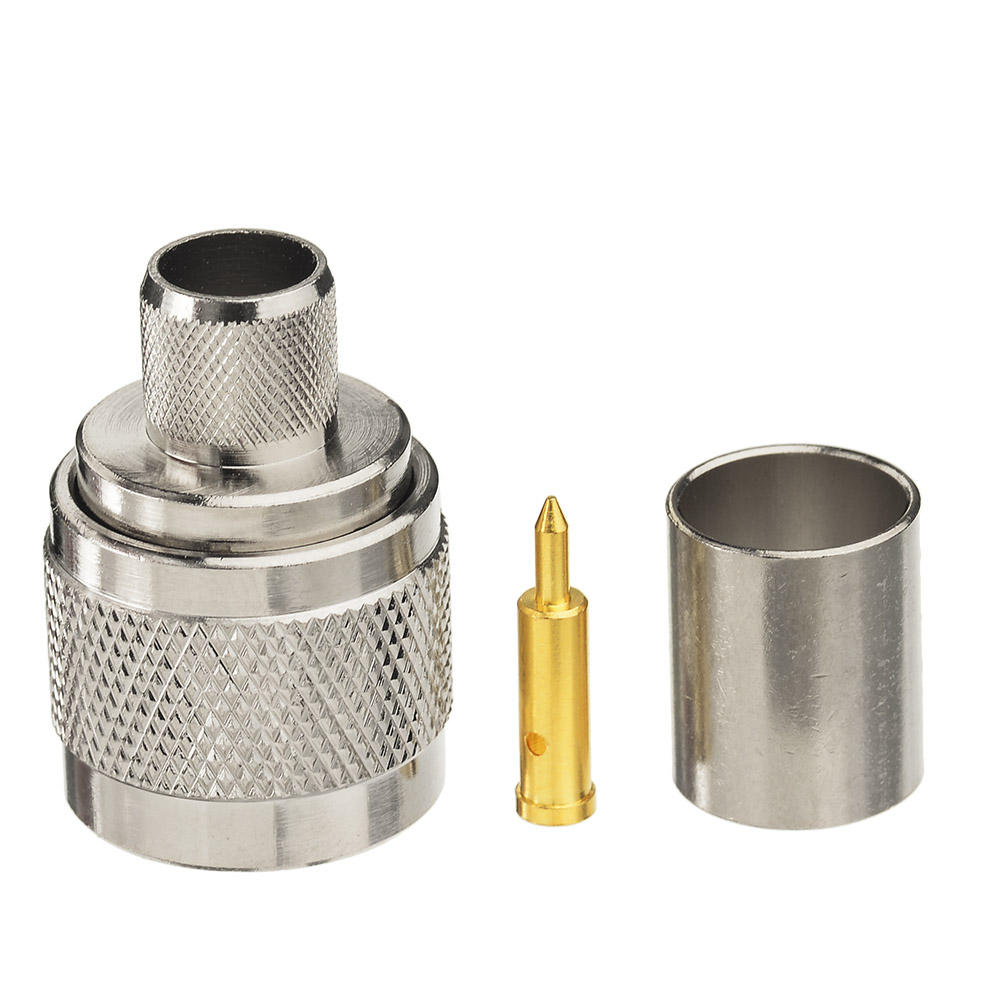

Type N Connector N Male RF Coaxial Crimp Connector Plug for LMR400 Cable for 3G 4G 5G LTE GPS WiFi RF Radio to Antenna
Body | brass | Nickel plating/alloy plating |
Domestic sales | brass | gold plated |
elastic contact | Beryllium copper | gold plated |
socket contacts | beryllium or tin bronze | gold plated |
insulator | PTFE | |
Crimp ferrule | copper alloy | Nickel/gold plated |
O-ring seal | Silicone Rubber |
Applicable standards
MIL-C-39012;
CECC 22210;
IEC 60169-16
CECC 22210;
IEC 60169-16
