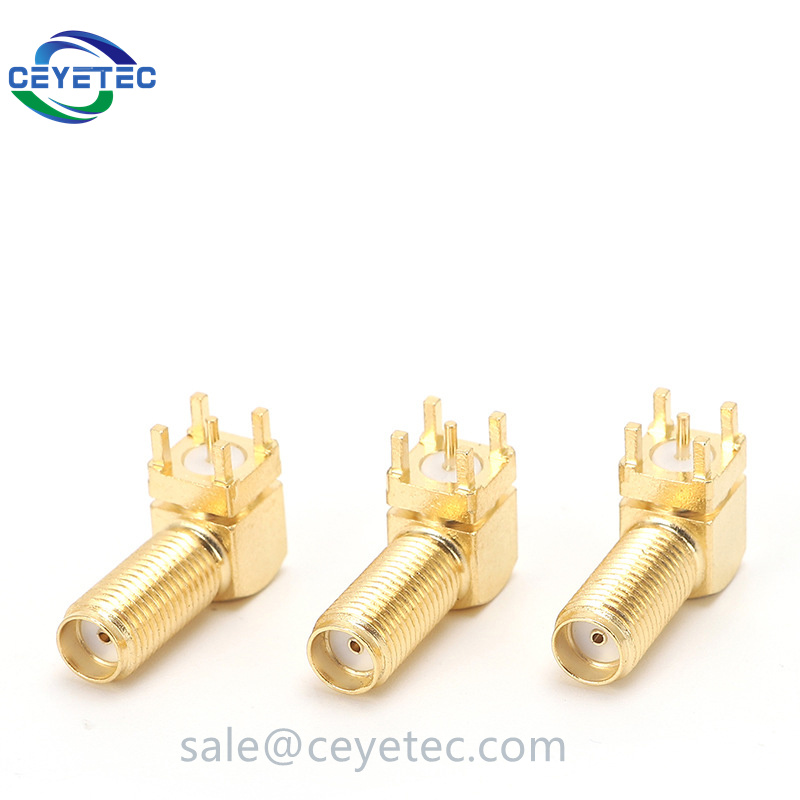

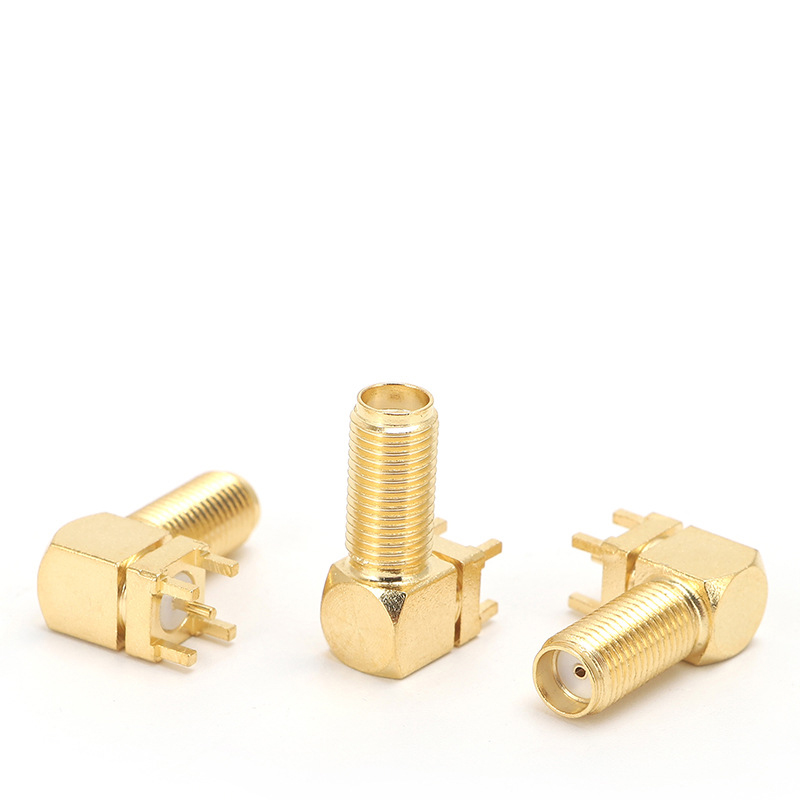

Right Angle 50 Ohm SMA Jack PCB RF Connector
- 0.99 50 - 499 pieces
- 0.65 500 - 999 pieces
- 0.59 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| letter of credit: | / | Connector type: | right angle |
| temperature range: | -65°C to +165°C | Origin: | Hubei, China |
| gender: | female | impedance: | 50 ohms |
| port: | Shenzhen | model: | CEY-SAJ-0024 |
| Frequency Range: | DC~6GHz | Supply capacity: | 100000 pieces per month |
| brand: | Sayetek | plating: | the gold |
| Installation type: | PCB mounting | product name: | SMA connector |
| Packaging Details: | Blister box + carton. | payment terms: | Western Union, T/T, Paypal |
| Mating cycle: | 500 minutes | Package preview: | |
| describe: | SMA connector | Material: | brass |
| type: | Jack | Package: | Blister box + carton. |
Product Description
Features and Benefits
Lightweight, compact, and vibration-resistant design High-strength design for harsh environments Available in gold, nickel, and passivated-plated brass and stainless steel Terminations to all standard flexible coaxial cables, low loss (LMR) type cables, and industry standard semi Rigid and Compliant CablesBNC Connector Applications
Base Station Antenna Telecom Instrument PC/LAN
Specification
SMA Connector Specifications | ||
impedance | 50 ohms | |
Frequency Range | DC-6GHz | |
Rated voltage | 335 volts RMS continuous | |
Dielectric withstand voltage | Minimum 1000VRMS | |
Insulation resistance | Minimum 5000 MΩ | |
Center contact resistance | 3.0 milliohms max | |
external contact resistance | 2.0 milliohms max | |
temperature range | -65°C to +165°C | |
mating cycle | 500 minutes | |
coupling mechanism | threaded | |
Mating Torque (Brass Plug) | 0.3 - 0.6 Nm (3 - 5 in lbs) | |
