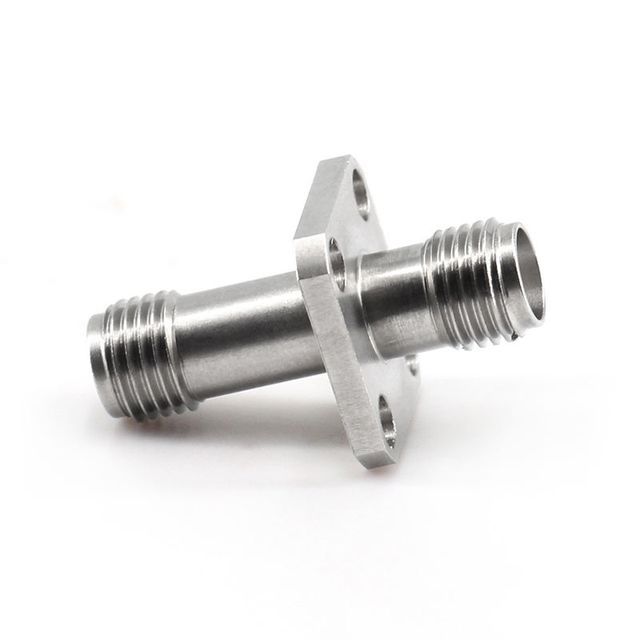

XINQY SMA 27GHz 4 Hole SMA Flange Panel Mount Coaxial RF Signal Antenna Connector Adapter Stainless Steel

Supplier: Shenzhen Xinqiyuan Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Eloise Lei
Price: $14.00 / 5 - 49 pieces
$11.00 / 50 - 99 pieces
$10.00 / >=100 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Dielectric resistance:	5000MΩ	type:	RF adapter
letter of credit:	/	VSWR:	1.20:1 (maximum)
describe:	SMA adapter	brand:	source of novelty
Mating Durability:	≥ 500 cycles	impedance:	50 ohms
Insertion loss:	0.20dB (maximum)	Dielectric withstand voltage:	Sea level max 1000V
Frequency Range:	DC-27GHz	model:	XQY-SMA-KFKGD
Package:	/	Single pack size:	8X5X4 cm
Outer conductor material:	Passivation of stainless steel	Origin:	Guangdong, China
Sales unit:	single product	Connector type:	SMA female to SMA female
Gross weight per piece:	0.150 kg	Inner conductor material:	Gold Plated Beryllium Bronze

electrical characteristics		Specification
Frequency Range	DC-27GHz
VSWR	≤1.20:1 (maximum)
Insertion loss	0.20 dB (maximum)
impedance	50Ω
Dielectric resistance	5000MΩ
Dielectric withstand voltage	Sea level max 1000V
mating durability	≥ 500 cycles
connector type	SMA female to SMA female
Operating temperature	-55℃～+165℃
Inner Conductor Material	Gold Plated Beryllium Bronze
Connector body	Passivation of stainless steel
insulator	PTFE

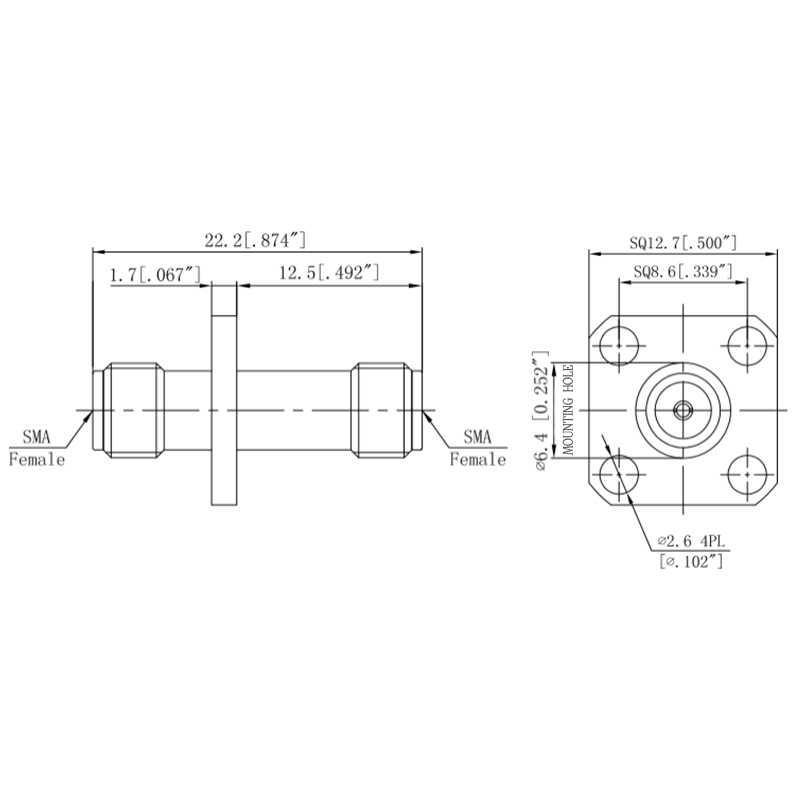

Note: Dimensions (mm/inch)

FAQ

Q1: Are you a factory or a trading company?
A1: XINQY is a factory specializing in the production of RF components.
Q2: Where is your location?
A2: We are in Shenzhen.
the third quater: How many years have you been in this businessBusiness?
A3: We have been in this business for more than 15 years, we are specialized in RF splitter, RF cable, RF cable assembly,
RF attenuators, digital TV modulation cards, frequency response analyzers, RF coaxial connectors, RF adapters and other RF components.
fourth quarter: How long is your delivery time (delivery time)?
A4: Within 3 days if the product is in stock.
Q5: What is the MOQ (Minimum Order Quantity)?
A5: Generally 10pcs, but it depends on the model.
Q6: How many workers do you have?
A6: More than 200.
Q7: Is it OK to add our logo on your products?
A7: Yes, we can do printing logo or laser logo.
Q8: Why choose Xinqiyuan?
A8: 1. Have a professional R&D technical team.
2. Perfect product quality management system.
3. Professional production and testing
4. Professional after-sale technical service.
