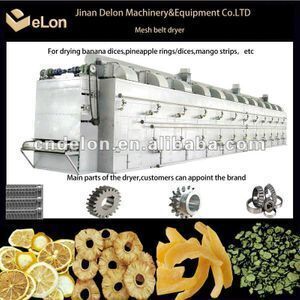

Hot Saling and High Quality conveyor Mesh Belt Dryer

Product details
Voltage:380V/50Hz(or customized);Inveter:LG(or customized);
Type:conveyor mesh belt dryer for all kinds of fresh fruit drying;Delivery Detail:45-50 working days after deposit;
Brand Name:Delon;Warranty:whole life;
Payment Terms:L/C,T/T;Supply Ability:5 Set/Sets per Quarter;
Stainless steel:SS304/SS202(or customized);Power(W):11.4-36.8kw;
Electrical Equipment:ABB(or customized);Port:Qingdao Port;
Packaging Detail:nude packing or wooden cases;Motor Brand:Siemens(or customized);
Model Number:DL-D-series;Condition:New;
Certification:CE;Dimension(L*W*H):15*2*3.5m(depond on model);
Place of Origin:Shandong China (Mainland);After-sales Service Provided:Engineers available to service machinery overseas;
Weight:4.5-14 t;

Hot Saling and High Quality conveyor Mesh Belt Dryer



The raw materials to be treated should distribute on the conveyer belt through suitable mechanism such as star distributor, swing belt, crusher or granulator, the conveyer passes through the channel including of one or several  heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to low or from low to up. In this way raw materials can be dried evenly.

  Application of pineapple belt dryer

The belt dryer is an ordinary continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.

  Features of pineapple belt dryer

1,   Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.

2,The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.

3,Most air is recycled to realize saving energy

4,The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.

5,Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

   Technical parameters of pineapple belt dryer

Type

DL-1.2-8

DL-1.2-10

DL-1.6-8

DL-1.6-10

DL-2-8

DL-2-10

DL-2-20

Quantity of unit

4

5

4

5

4

5

10

Belt width(m)

1.2

1.6

2

Length of drying section(m)

8

10

8

10

8

10

20

Thickness of raw material(mm)

≤60

Operation temperature(°C)

50-140

Steam pressure(MPa)

0.2-0.8

Steam consume(kg/h)

120-300

150-375

150-375

170-470

180-500

225-600

450-1200

Drying time(h)

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.5-3

Drying strength(kg/h)

60-160

80-220

75-220

95-250

100-260

120-300

240-600

Power equipped(kw)

11.4

13.6

11.4

13.6

14.7

15.8

36.8

Overall dimensions

L(m)

9.56

11.56

9.56

11.56

9.56

11.56

21.56

W(m)

1.49

1.49

1.9

1.9

2.32

2.32

2.32

H(m)

2.3

2.3

2.4

2.4

2.5

2.5

2.5

weight(kg)

4500

5600

5300

6400

6200

7500

14000

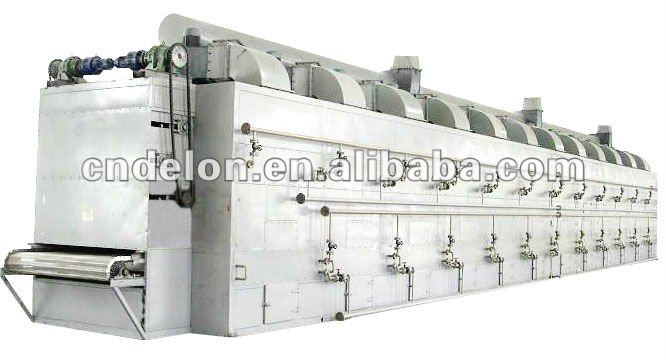

Photo of the sample dryer:

Photos of product sample:
