Paraffin wax pellet making machine / stainless steel cooling belt paraffin wax granulator machine

Supplier: Zhecheng Hongxin Machinery Factory
Region: Henan, China
Contact: Mr Hongwei Song
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	hongxin;	Dimension(LWH):	1500012001700mm;
Warranty:	2 Years;	Water pump:	pressure: 0.3mpa water flow: 15-20 m3/h (equipped by user);
Capacity:	150-200kg/hour for paraffin;	Machine:	paraffin wax granulator machine;
Voltage:	380V;	Size of products:	4-8mm (adjust);
Port:	qingdao, shanghai, guangzhou, ningbo, yiwu;	Voltage:	380V,50HZ,3 phase;
Size of mold:	1.8-2.2 mm;	Power(W):	5500;
Supply Ability:	10000 Set/Sets per Month;	Packaging Detail:	paraffin wax granulator machine by wooden box package;
Certification:	ISO CE SGS;	Motor:	5kw+1.5kw;
Product Type:	paraffin wax granulator machine;	Product's shape:	hemispherical;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;	Condition:	New;
After-sales Service Provided:	Free spare parts;	Machine Type:	Granulator;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Henan China (Mainland);
Weight:	3 Ton;

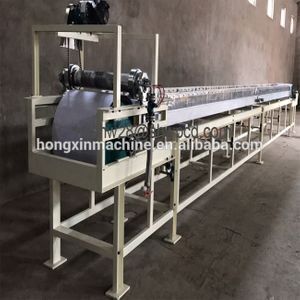

Paraffin wax pellet making machine / stainless steel cooling belt paraffin wax granulator machine

Melting material, through material distributor, drips down to the steel belt which is moving evenly. Under the belt, there are continuous sprayer and cooling device which can cool, solidify and pelletize material on belt as soon as possible. According to material feature and process requirements, outward turning, rotating,reciprocating, gate types are available for your choice. Based on material feature and use requirements, material distributing forms like incontinuous dripping, continuous strip, full-width overflowing are available, and with hemispheric, bar, flake products.

Model	JXSP-60	JXSP-120
Machine width	600mm	1200MM
Machine length	12000mm	15000mm
Size of mold	1.8-2.2 mm	1.8-2.2mm
Size of products	4-8mm (adjust)	4-8mm (adjust)
Product’s shape	hemispherical	hemispherical
Capacity	150-200kg/hour for paraffin	400kg/h for paraffin
	200-300kg/hour for resin	600-800kg/h for resin
	200-300kg for RD	600-800kg/h for RD
Motor	5kw+1.5kw	5.5+1.5kw
Voltage	380V,50HZ,3 phase	380V,50HZ,3 phase
Water pump	pressure: 0.3mpa water flow: 15-20 m³/h (equipped by user)	pressure: 0.4mpa water flow: 30 m³/h (equipped by user)
