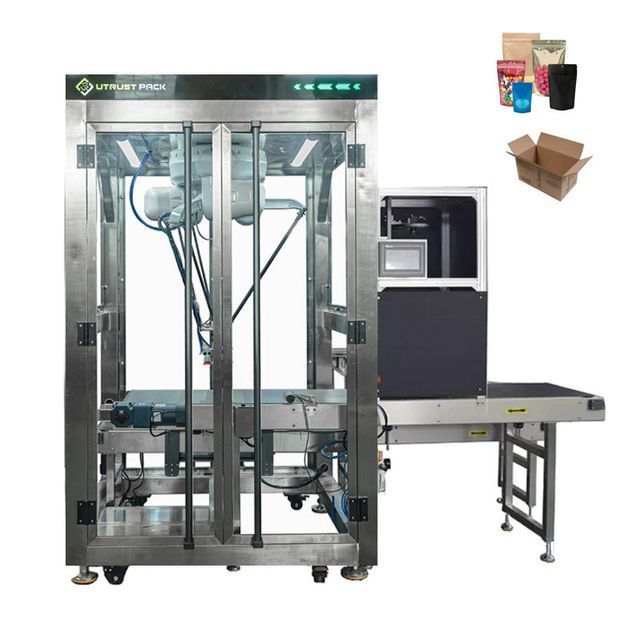

Intelligent automatic Delta robot arm packaging machine Delta robot picks up the stand-up bags and puts them into cartons

Supplier: Guangzhou Utrust Packaging Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Sarah Huang
Price: $26500.00 / 1 - 1 sets
$24700.00 / 2 - 4 sets
$22500.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

positioning accuracy:	±1mm	Video outbound inspection:	if
air pressure:	0.6~0.7MPa	feature:	High speed, high precision and intelligence
brand:	Uxin package	Warranty:	1 year
Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia	Place of origin:	Guangdong, China
Stroke:	XY axis: 900mm Z axis: 400mm	product name:	Delta robot picks up bags and places them into boxes
port:	Guangzhou Port	payment terms:	Western Union, Wire Transfer, MoneyGram
Gas consumption:	0.1 cubic meter/minute	application:	Pack sticks, pouches, sachets into boxes
Production capacity:	50 bags/minute	Supply capacity:	10 sets per month
speed:	50 bags/minute	Marketing type:	2020 new products
Voltage:	220V 50Hz	Health status:	new
Core component warranty:	1 year	Packaging details:	Intelligent automatic Delta robotic arm packaging machine Delta robot picks and places stand-up bags into cartons 1. Inner packaging: stretch film. 2. Outer packaging: standard export wooden box (packaging according to the specific legal requirements of the customer's country).
Mechanical test report:	if	Package preview:
Applicable industries:	Manufacturing plants, food and beverage plants, farms	Core components:	PLC, bearings, motors, cameras
Dimensions (lengthwidthheight):	265015602450mm (lengthwidthheight)	Weight (kg):	16
strength:	3.5KW

Product Description

Intelligent automatic Delta robot arm packaging machine Delta robot picks up the stand-up bags and puts them into cartons

The device is ahigh speed robotDesigned forQuick pick-and-place applications, its body material is mainly composed of carbon fiber and aluminum alloy.

The target object is capturedSensor or vision systemRealize dynamic tracking of target objects, pick and place.

It can be widely usedPackaging, material sorting, handling and assembly.

Specification

The whole machine	Voltage	220V 50Hz
		strength	3.5KW
		air pressure	0.6~0.7MPa
		Air consumption	0.1 cubic meter/minute
		aspect	265015602450mm (lengthwidthheight)
Delta Robot	Model	OY-DL-900
		Stroke	XY axis: 900mm Z axis: 400mm
		speed	50 bags/minute
		servo motor	Panasonic 750W
		Repeatability	±0.1 mm
vision structure	Model	MV-CA050-10GC
		Pixel	500W color
		positioning accuracy	±1mm
		notes	Identify the direction according to the hanging holes on the bag.

1. Its body material is mainly composed ofcarbon fiberandAluminum alloywork.
2. Accurately identify target objects through sensors or vision systems, perform motion tracking, pick up target objects and place them at designated locations.
3. ofHigh speed processing unitFeaturing robotic capabilities with freedom of movement in three dimensions, providing precision in movement and positioning andHigh dynamic responseat a steady speed80 picks per minute.
4. High rigidity mechanical design and low motion mass make the toothed belt shaft parallel triangular motion system reachthree timesAs fast as comparable Cartesian systems.
5. Triple double poleAlways keep the front unit level. thisThe axis and servo motor do not move with the UNIt.
6. ofParallel motion systemSuitable for handling loads up to 5 kg.
7. High-speed parallel robot unit system picks up and places small bag packaging. In-depth visual recognition to distinguish the front, back and direction of the sachet. The programming system sorts the pouches by the correct number.Connect to carton machineTo be doneAutomated packaging.

show details

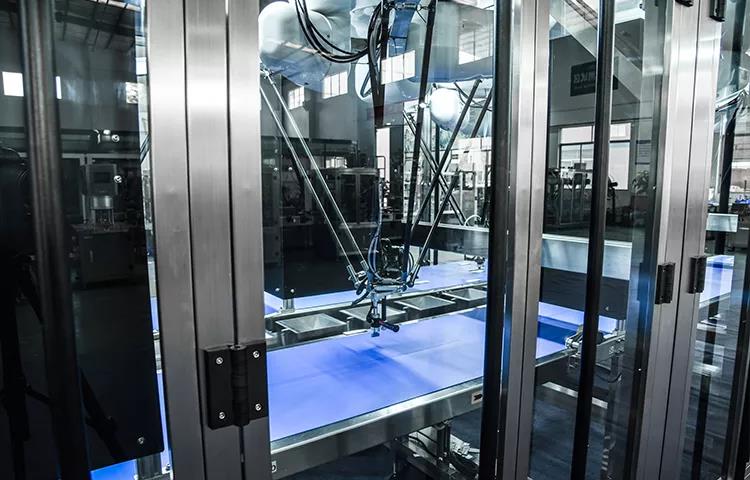

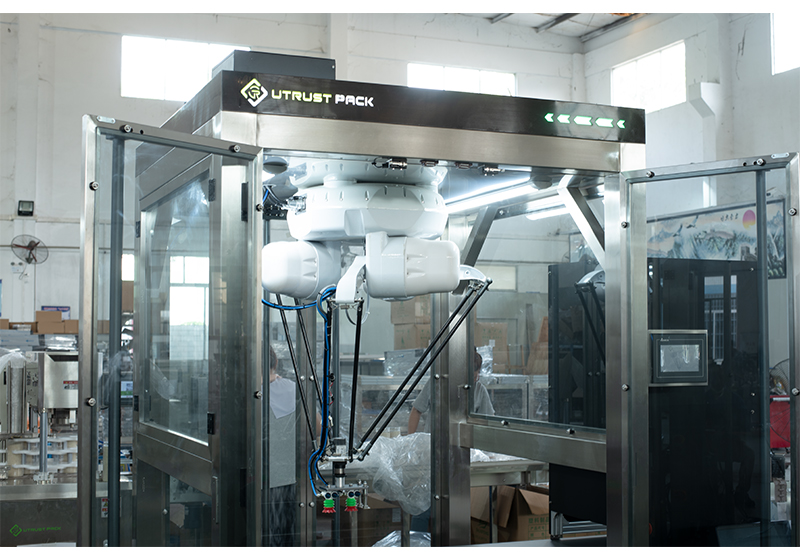

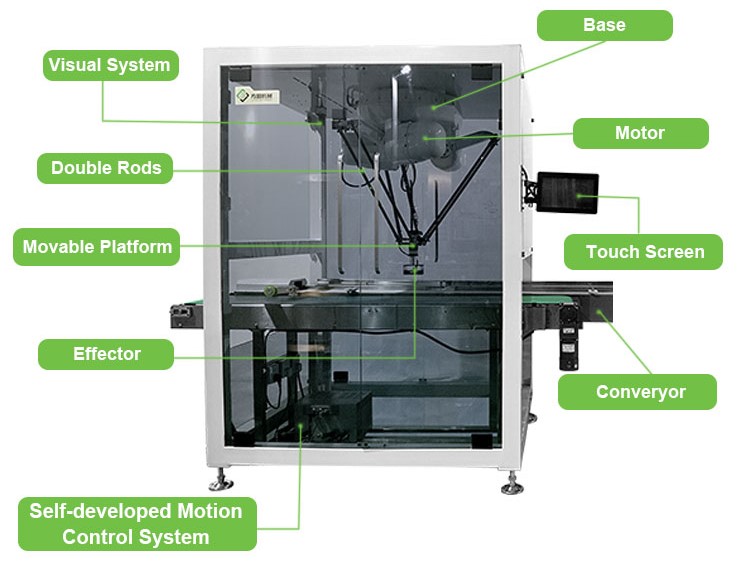

Body structure

1. Carbon fiber and aluminum alloy body structure
2. High dynamic response up to 50 times/minute

Travel in three dimensions precisely

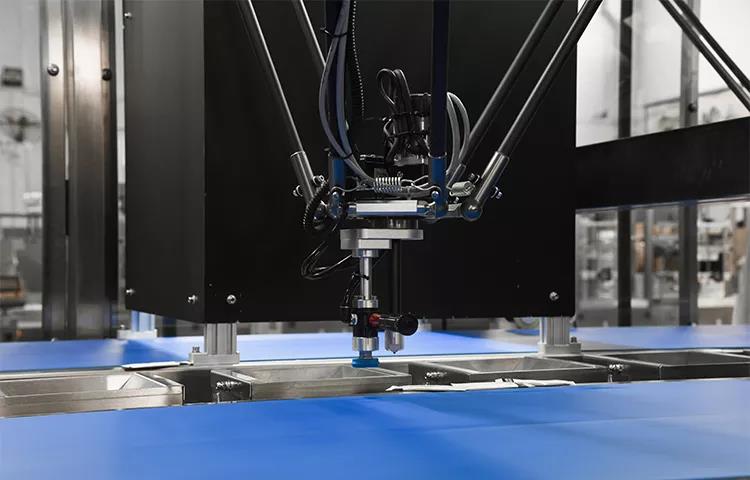

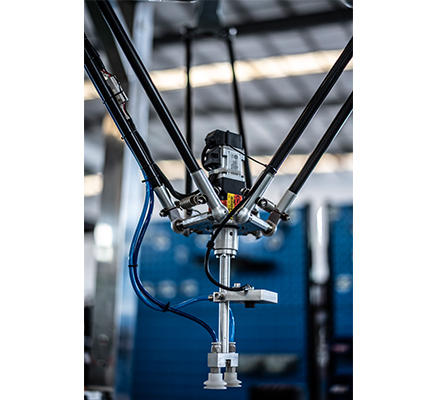

1. Three double pole design
2. The axis and servo motor move separately

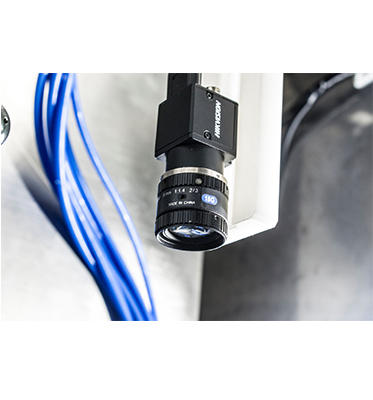

Vision positioning system camera

1. Machine learning, deep learning, CNN, vision system: motion tracking, picking and placing to target location

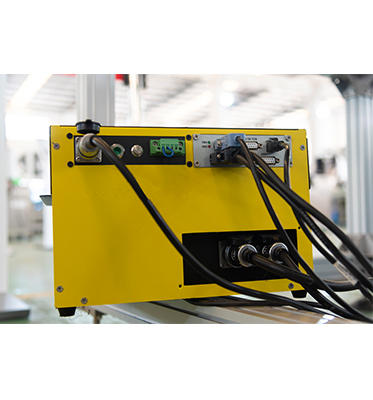

Independently developed motion control system

1. The speed of the parallel Delta motion system is three times that of the Cartesian system

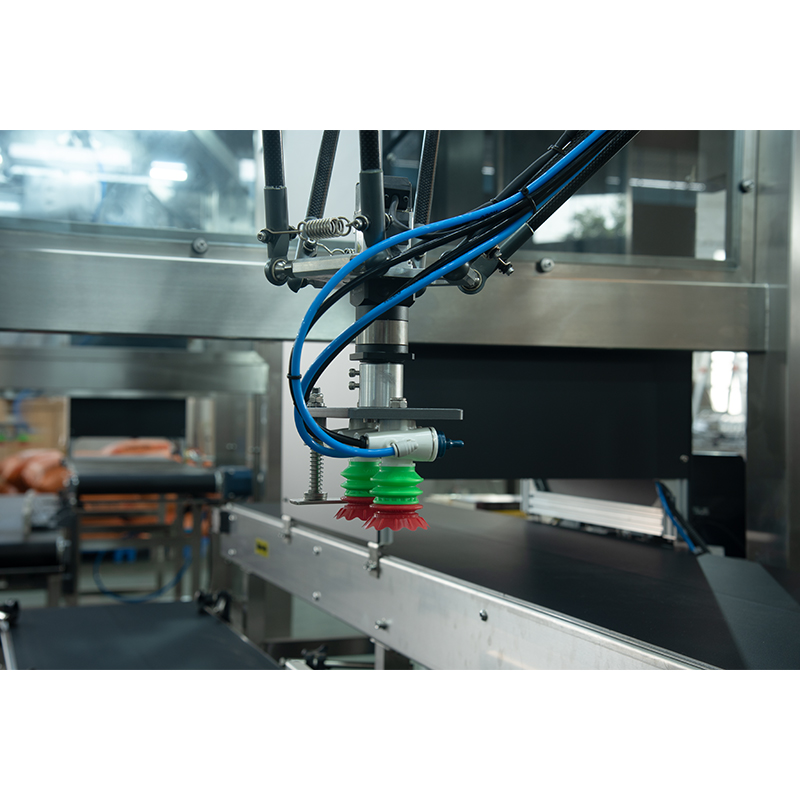

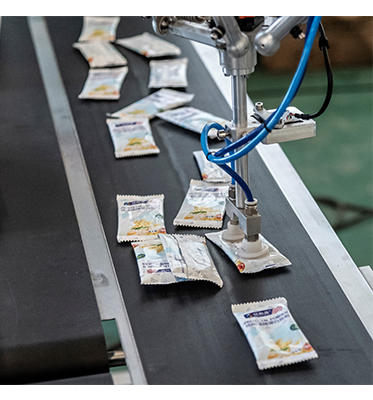

High speed small bag sorting

1. Classify the sachets according to the front and back sides, top and bottom of the packaging
2. Pick up the pouches and place them on the conveyor belt or stacking device
