HuazhongCNC HNC-RDT801B Four-axis Delta Parallel Robot Sorting, Packaging and Palletizing

Supplier: Wuhan Huazhong Numerical Control Co., Ltd.
Region: Hubei, China
Contact: Ms Masha Huang
Price: $10000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Voltage:	380V	Core component warranty:	1 year
Health status:	new	Repeatability:	±0.1mm
Running tempo (25-400-25):	140	Motor power 1-3 axis:	750W
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Dimensions (LWH):	560X330X730
specified load:	1 kg	Control cabinet protection level:	IP53
Local service location:	Russia	Motor power 4th axis:	400W
brand:	Huazhong CNC	Marketing Type:	normal product
Control cabinet weight:	45KG	Mechanical test report:	if
strength:	3000W	installation method:	Hoisting
Total Weight:	110 kg	Video shipment inspection:	if
Showroom location:	not any	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
feature:	Delta Parallel Robot	application:	Sorting, packing or palletizing
Origin:	China	Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies
Input and output parameters:	Digital: 32 inputs, 32 outputs	Core components:	engine

Product Details

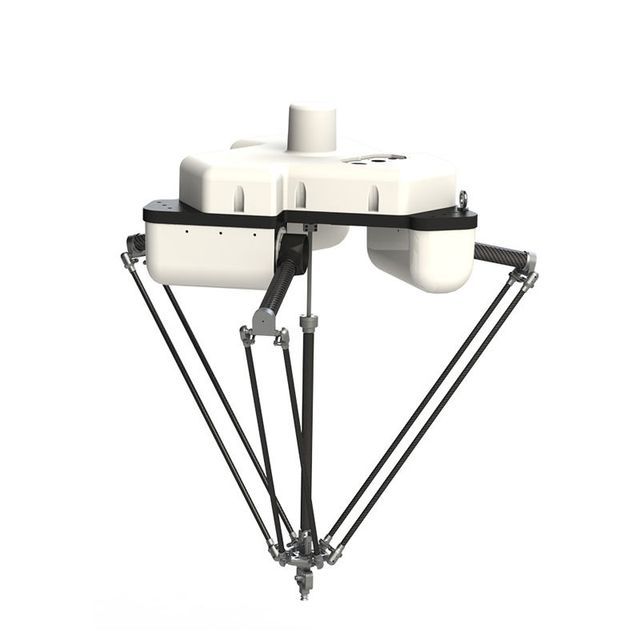

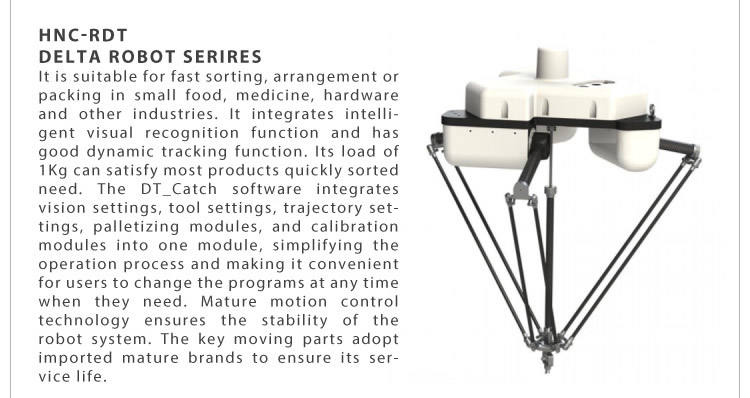

HNC-R-DT801B Delta Parallel Robot

DT801B is suitable for fast sorting or packing in various industries, integrated intelligent visual recognition, and good dynamic tracking. 1KG load can meet most of the products that need to be sorted quickly. DT_Catch software integrates vision setting, tool setting, track setting, palletizing module and calibration module, which simplifies the operation process and facilitates users to change the program they need at any time. Mature motion control technology ensures the stability of the robot system. Key moving parts adopt imported mature brands to ensure service life.

product effect

1. Precise positioning: Repeat positioning accuracy can reach 0.1mm.
2. Visual intelligent recognition: The robot has its own visual system, which can recognize and accurately locate the shape, characteristics and posture of the target.
3. Dynamic tracking of the conveyor belt: Dynamically capture the visual recognition target, greatly improving the capture efficiency.
4. Fast speed: no-load grabbing beat can reach 140 times/min (span 400mm)

Specification

Industrial robot		HNC-R-DT801B
		four axis
Cartesian coordinate operating range:	R	400mm radius
	Z	200mm
Joint business scope:	J1	+5°/+125°
	J2	+5°/+125°
	J3	+5°/+125°
	J4	±360°
Running Tempo (25-400-25)		140
repeatability		±0.1mm
specified load		1 kg
Motor Power	1-3 axis	750W
Motor Power	4th axis	400W
total power		3000W
Voltage		380V
input and output parameters		Digital: 32 inputs, 32 outputs
IP rating		IP54
environment humidity		< 85%
ambient temperature		1-45℃
Total Weight		110 kg
installation method		Hoisting
Protection class of control cabinet		IP53
Control cabinet size		560(width)×330(thickness)×730(height)
Control cabinet weight		45KG

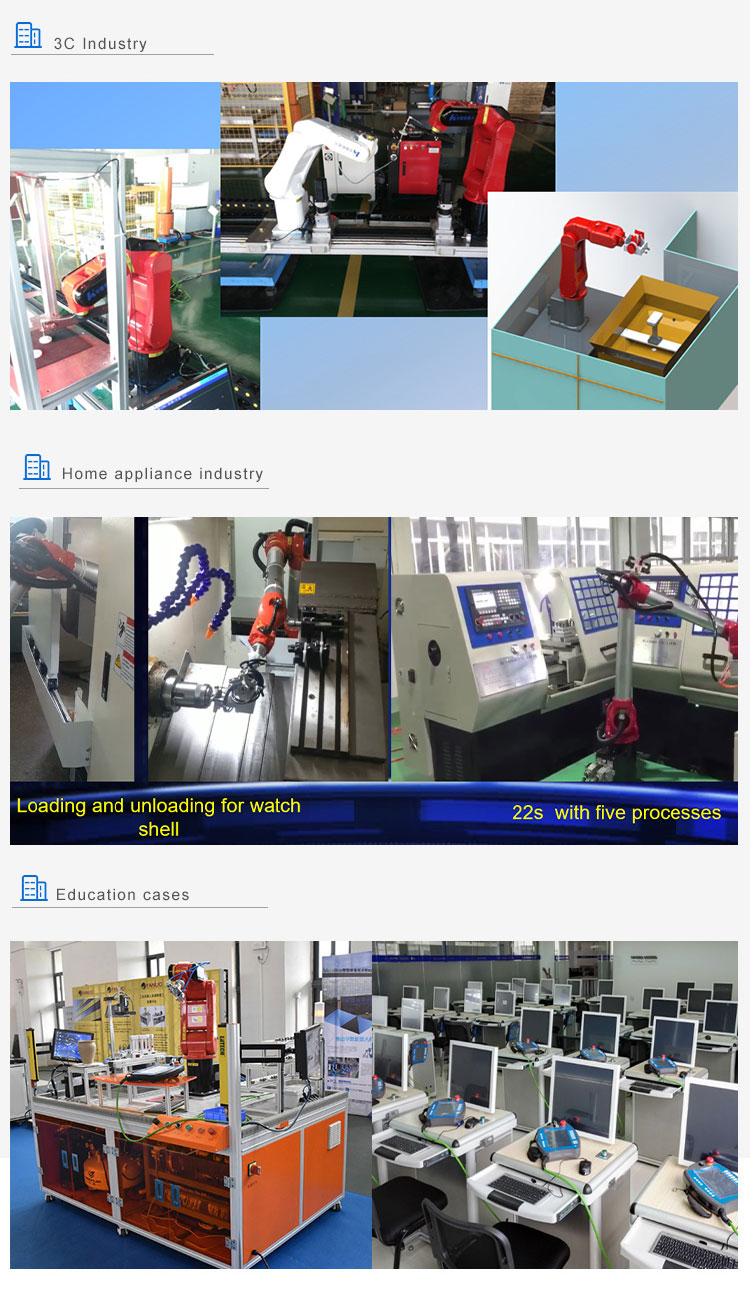

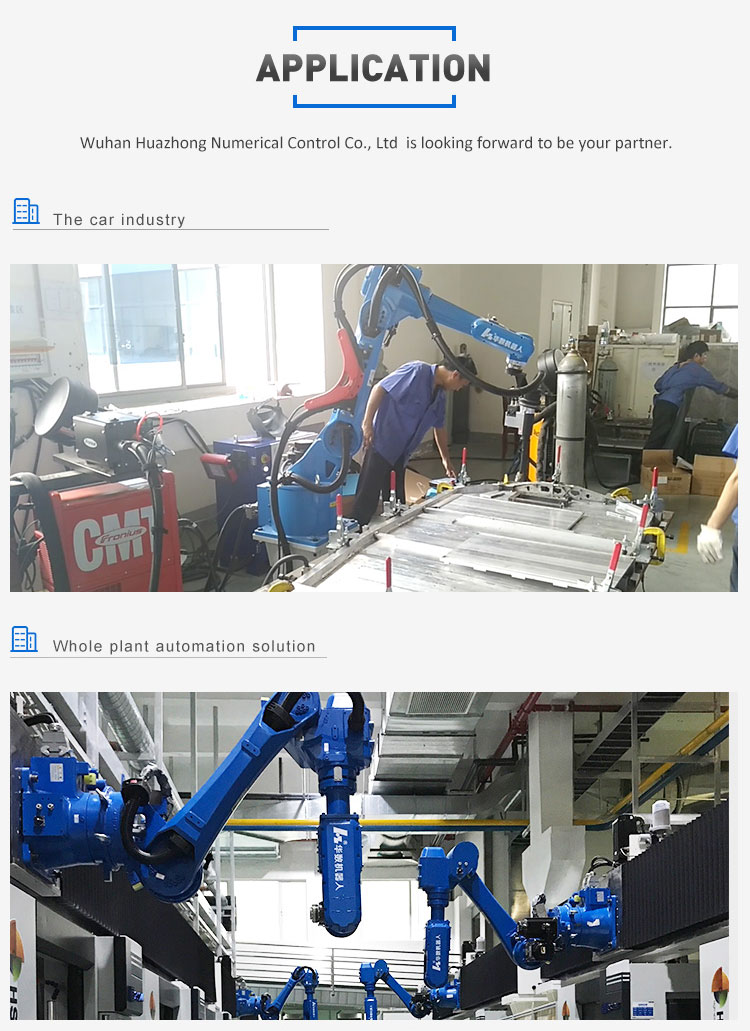

application
