High quality OEM robot for injection parallel radial arm drill press
-
Supplier: Foshan Honggui Garments Co., Ltd. -
Region: Guangdong, China -
Price: $8000.00 / 1 - 4 sets
$7800.00 / 5 - 99 sets
$6500.00 / >=100 sets -
Min. Order: 1 set
| Repeatability: | 0.1mm | Core components: | motor, gear |
| Health status: | new | place of origin; place of origin: | China |
| degrees of freedom: | 3 axis/4 axis | port: | Shenzhen |
| usage: | Pick and place, palletize, sort, group, reposition | Mechanical test report: | if |
| Showroom location: | not any | type: | Fully automatic |
| Video external inspection: | if | Material: | aluminum |
| Intellectual property level: | IP54 | Payload: | 4 kg |
| Minimum order quantity: | 1 set | Core Components Warranty: | 1 year |
| Motor Type: | servo motor | Marketing Type: | normal product |
| Weight (kg): | 25 | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies |
| Supply capacity: | 500 sets per month | product name: | Industrial Delta Robot Arm with Gripper |
OEM Robot for High Quality Injection Parallel Radial Arm Drilling Machine
What you must know before placing an order
Dear customer, thank you for visiting our website and products. To better understand our products,
Please allow us to remind you in the following waysTwo hints:
- (1) We setPrice based on different quantities, please contact our sales and inform your estimated order quantity so that we can provide you with a corresponding quotation.
- (2)The above prices do not include shipping,If you don't have your own carrier or freight forwarder, please tell us your shipping address for a shipping quote.
Contact supplier for more details
only"click"here
Function and introduction

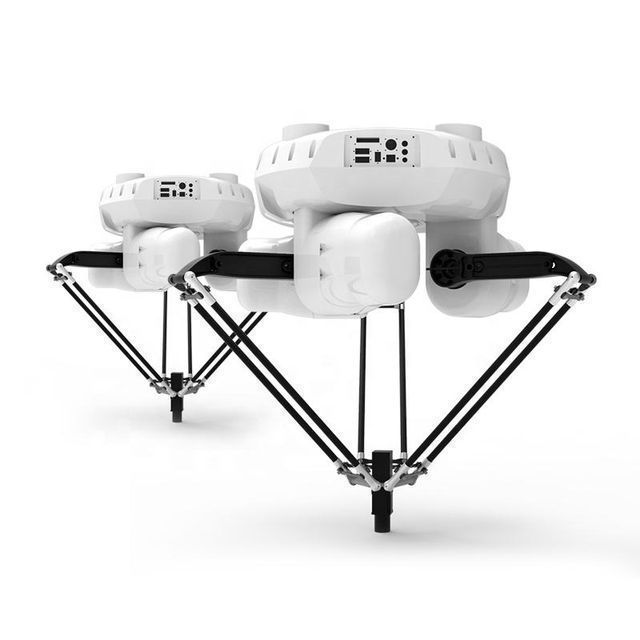

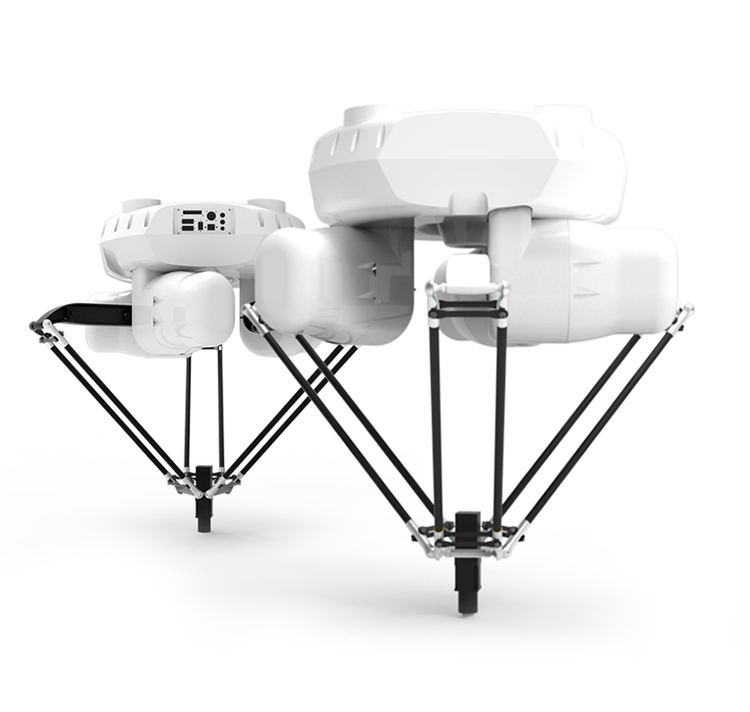

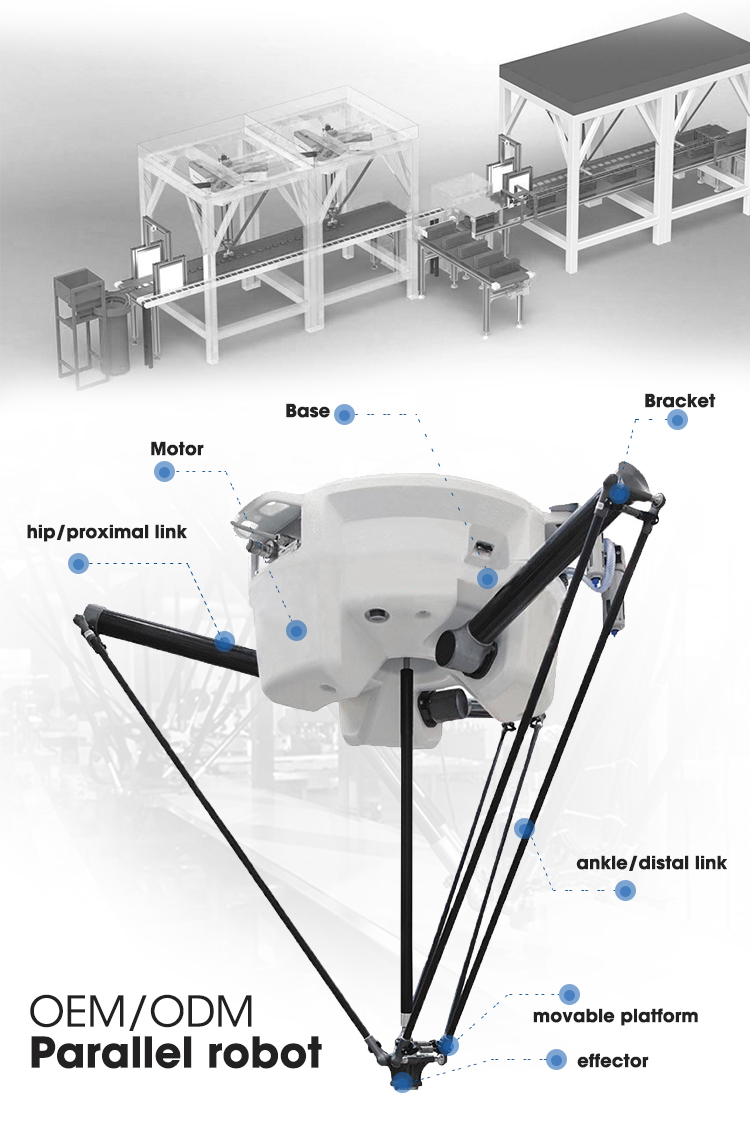

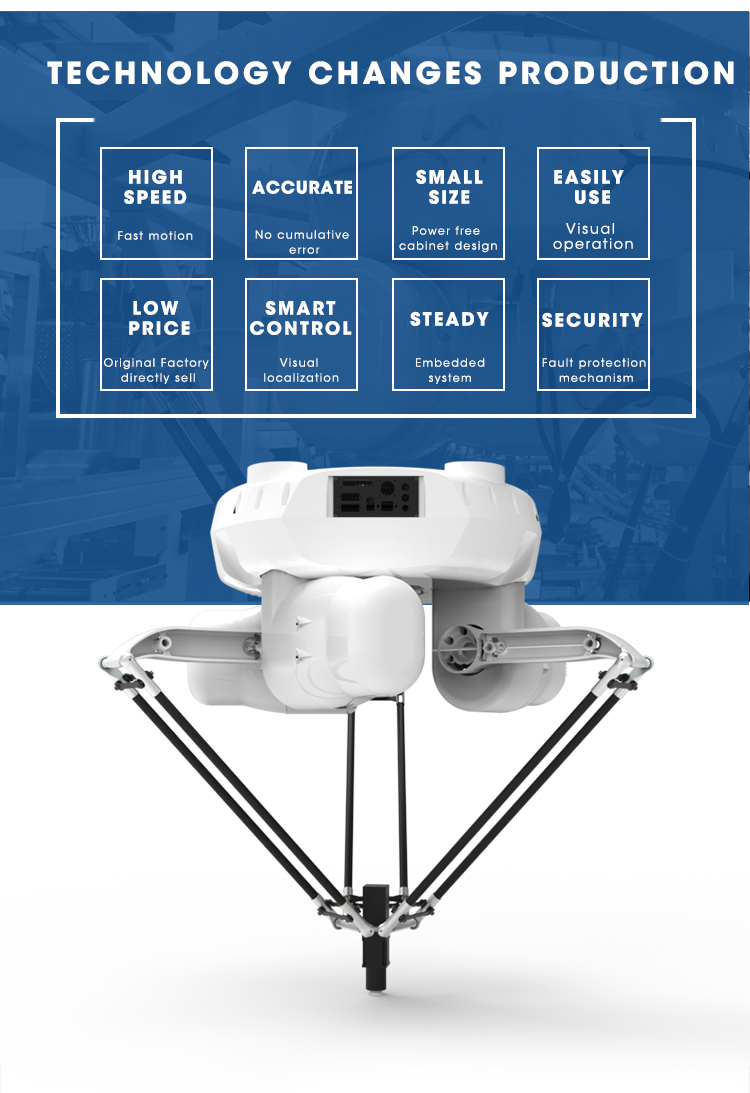

The OY-D is a high-speed robot designed for quick pick and place applications. Its body is made of carbon fiber and aluminum alloy. The leapfrog test beats up to 200 beats per minute. Capture the target object through a sensor or vision system to achieve dynamic tracking pick and place of the target object. The equipment can be widely used in packaging, material sorting, handling, assembly and other fields.

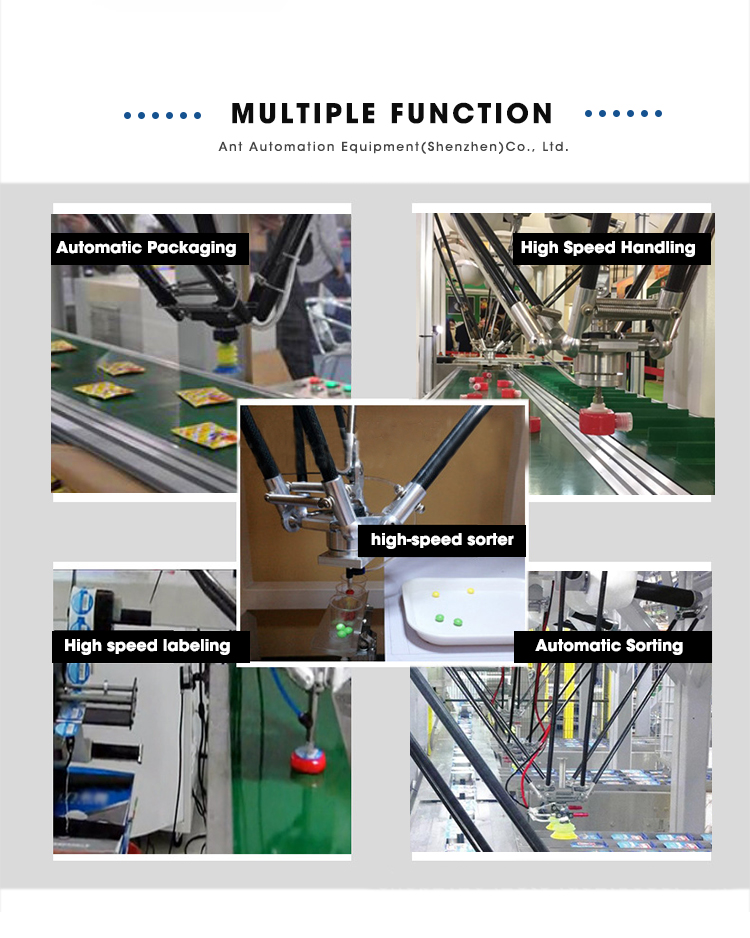

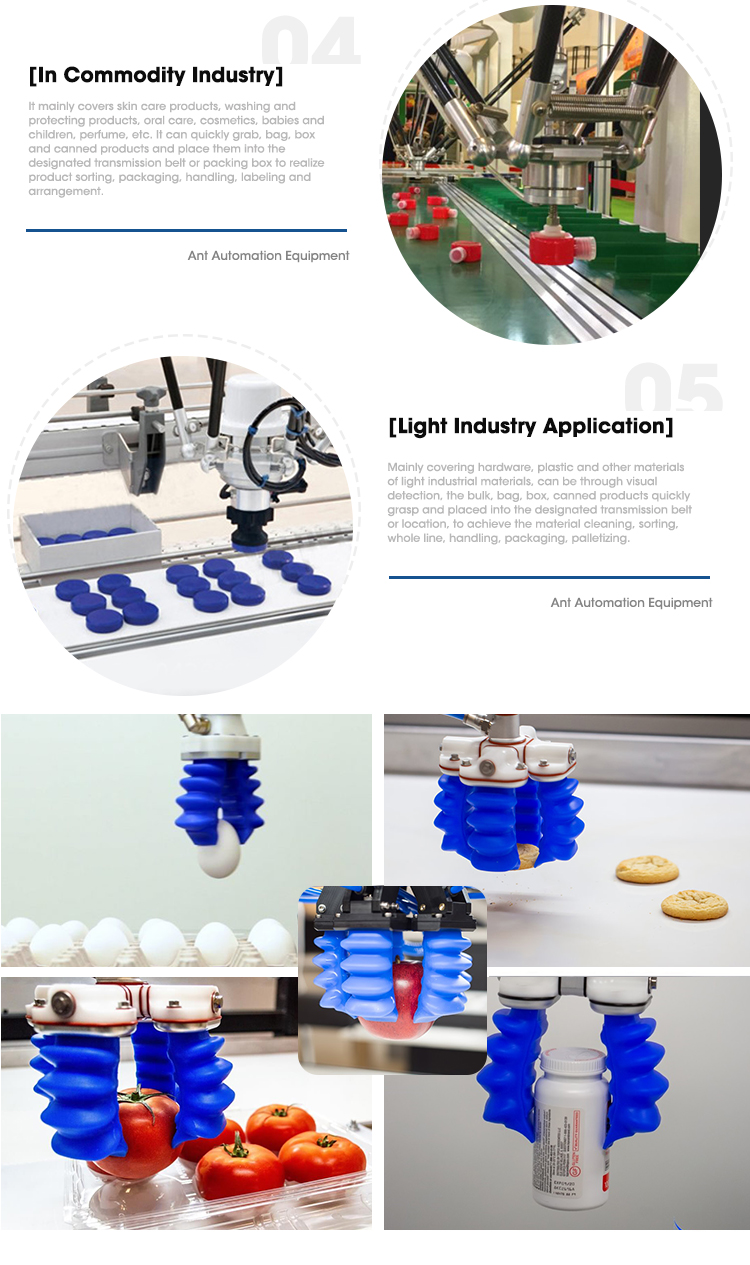

Main application areas:
• Bale
• Sort
• deal with
• assembly
feature
• High movement accuracy
• move quickly
• wide range of motion
• Strong carrying capacity,
• Can be used with vision positioning, conveyor tracking

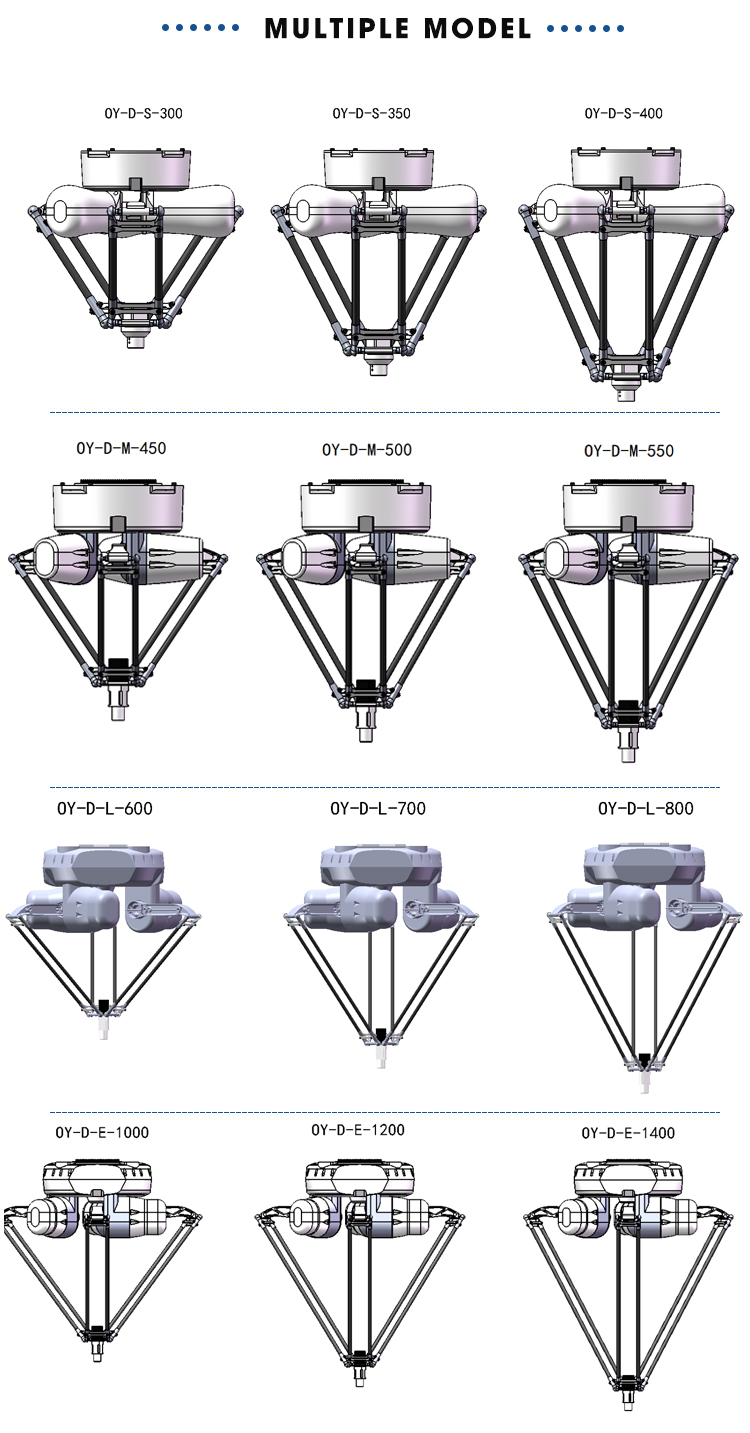

| Model |
OY-D-300 |
OY-D-400 |
OY-D-600 |
OY-D-800 |
OY-D-1000 |
|
| degrees of freedom |
3 axis/4 axis |
|||||
| Rated payload |
1.2kg |
0.8KG |
4KG |
3KG |
4KG |
|

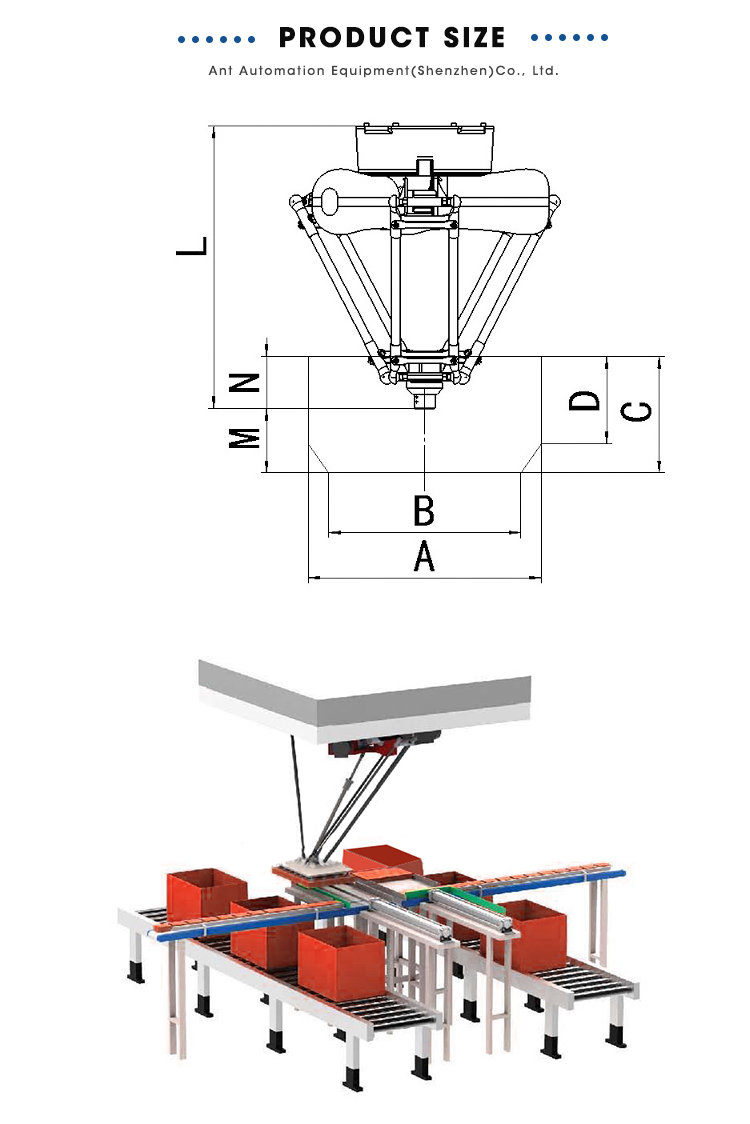

| scope |
upper arm length |
160 |
160 |
300 |
300 |
400 |
| lower arm length |
300 |
400 |
600 |
800 |
800 |
|
| large |
424 |
541 |
856 |
1103 |
998 |
|
| Meter |
72 |
99 |
138 |
163 |
193 |
|
| n |
58 |
81 |
112 |
132 |
157 |
|
| One |
330 |
430 |
634 |
858 |
1130 |
|
| Second |
280 |
380 |
598 |
813 |
904 |
|
| C |
130 |
180 |
250 |
295 |
350 |
|
| D |
91 |
126 |
175 |
206 |
245 |
|
| Repeatability |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
| motor |
Closed loop stepper motor |
Absolute Servo Motor |
||||
| total power |
0.5KW (3 axes) 0.42KW (4 axes) |
2.25KW (3 axes) |
||||
| weight |
15KG |
55KG |
65KG |
|||
| Protection class |
IP54 |
|||||
Contact supplier for more details
only"click"here
- pre-sale service:
1. Excellent quality/factory price/reliable service with quick response is our work belief.
2. Professional and efficient foreign trade sales team, 6 working hours to reply to your Alibaba inquiry and transaction information, you can fully trust our service.
- Intermediate sales service:
1. Check the shipping method that best suits the customer.
2. Check the quality again before shipping.
3. Send the Load Tracking Number. and update customer receipts
- After-sale service:
1. We are glad that customers give us some suggestions on prices and products.
2. If you have any questions, please feel free to contact us by email or phone for more details.
-
