Stainless Steel Fruit Peeler Apple Core Peeler Fruit Slicer

Supplier: Jingjiang Elite Food Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Boris wang
Price: $18800.00 / 1 - 1 sets
$18500.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	payment terms:	L/C, T/T
MOQ:	1 set	Dimensions (LWH):	adjustable
Applicable industries:	Manufacturing plants, food and beverage factories, farms	Voltage:	adjustable
application:	food and drink	Packaging Details:	Stainless Steel Fruit Peeler Apple Core Peeler Fruit Slicer Export Standard Packaging (wooden box or iron sheet)
Output product name:	peeled fruit	Main selling points:	multifunctional
raw material:	fruit	capacity:	30-40 pieces/minute
Material:	SUS 304 stainless steel	Warranty:	1 year
port:	Shanghai and other ports	Mechanical function:	peeling and cutting
strength:	adjustable	After-sales service provided:	Engineers available to repair machinery overseas
weight:	500 kg	Supply capacity:	20 sets per month
Core component warranty:	1 year	Marketing Type:	hot product
Core components:	engine	brand:	the elite
Origin:	Jiangsu, China	Video outbound inspection:	if
feature:	High efficiency and simple operation	Application fields:	Fruit processing factory, commercial catering, winery, vegetable processing factory, beverage factory, condiment factory, canning factory, frozen food factory
Package:	standard meal	Showroom location:	not any
Function:	multifunctional	product name:	Core Peeling Machine/Peach Apple Core Peeling Machine
Product Category:	Peeler

Product Description

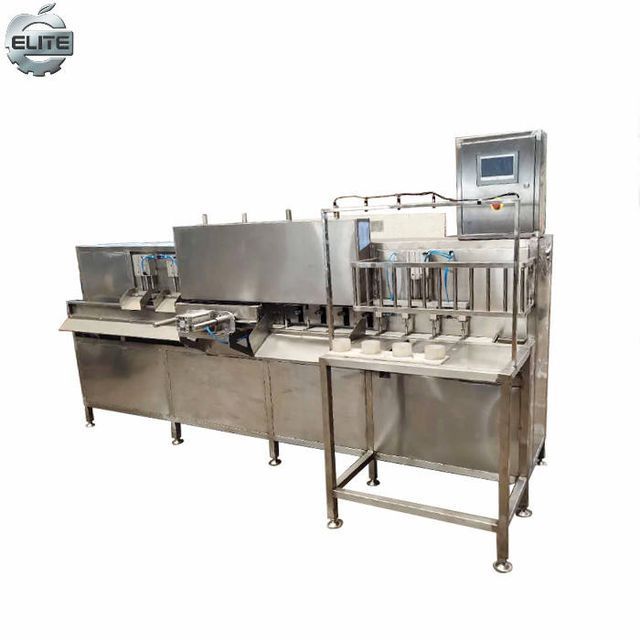

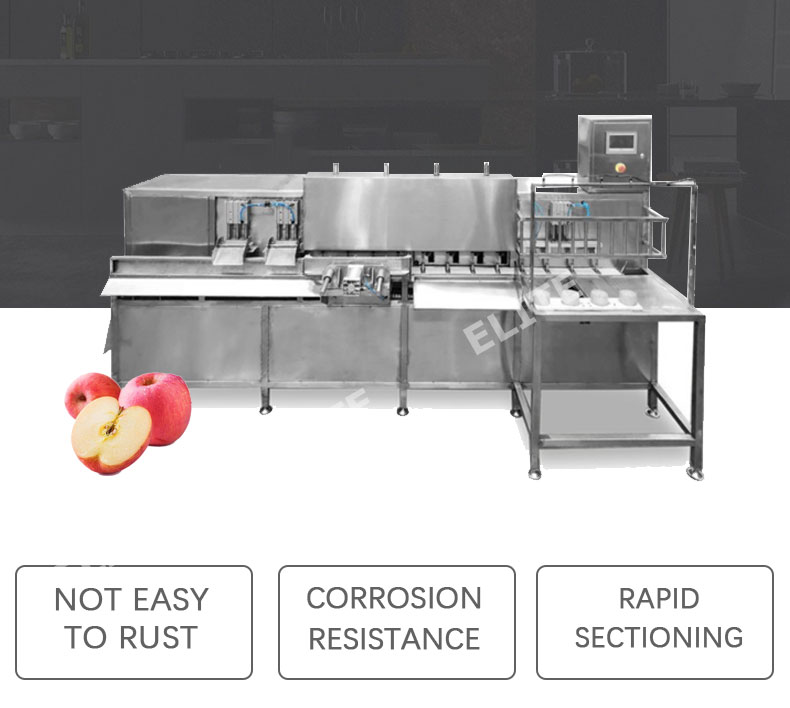

Apple Peeling and Core Slicing Machine

The fruit peeling machine based on mechanical principle is controlled by PLC. It can complete various actions such as positioning, peeling, ring cutting, core removal, and disk cutting. The cutting knife can automatically fit the change of the shape of the fruit, and the thickness of the peel can be adjusted, so the loss of the peel is small and the pulp utilization rate is high. Set parameters and arbitrary actions on the touch screen, put the fruit (with the stem facing up) into the bowls of the four workplaces, and automatically position and perform multiple actions such as automatic peeling, ring cutting, core removal, and plate cutting.

1. Fruit diameter: φ60mm-φ100mm; 2. Output: 40-60 grains/minute (depending on fruit diameter and output speed) 3. Power: 0.37+0.55+0.75=1.67kw 4. Number of stations: 4 5. Peeling thickness: 1-6mm; 6. Core removal diameter: φ19mm; 7. Number of cutting pieces: 2/4/6/8; 8. Compressed air consumption: 0.3m3/min, pressure: ≤0.7MPa ; 9. Size: 3550*1250*2100mm; 10. Weight: 510KG;

Technical Parameters

Model

capacity

strength

peeling

thickness

Stripping rate

fruit

diameter

fruit high

Core diameter

SXPJ4-3600
