apple peeler machine

Supplier: Jingjiang Elite Food Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Boris wang
Price: $15500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380v 50hz;	Suit for:	Apple orange avocado;
Brand Name:	ELITE;	Product name:	apple peeler machine;
Machinery Function:	peeling and corer;	Station:	4pcs;
Application fields:	Fruit processing plant,Commercial catering,Winery,Beverage Factory,Cannery;	Output product name:	dried fruit;
Cleaning capacity:	400-500kg/H;	Function:	Multifunctional;
Dimension(LWH):	345012001700mm;	Advantage:	High Effciency and Energy Saving;
Supply Ability:	5 Set/Sets per Month fruit and vegetable cleaning machine;	Material:	SUS304 Stainless Steel;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	1 Year;
Place of Origin:	Jiangsu China (Mainland);	Packaging Detail:	standard packing for export(wooden case or iron sheet) for apple peeler machine;
Port:	shanghai and other ports;	Type:	Cutter;
Payment Terms:	L/C,T/T;	After-sales Service Provided:	Video technical support;
Weight:	500kg;	Processing Types:	peeling and cutting;
Raw material:	Fruit;	Power(W):	1.67kw;

Company Information

Product Description

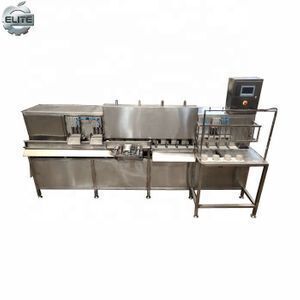

automatic apple peeler/corer cutting machine/apple peeling and separating machine

Ⅰ. Purpose:

The fruit peeler machine based on mechanical principle is controlled by PLC. It can complete many actions, such as positioning, peeling, cutting ring , removing corer and cutting disc, etc.

The cutting knife can automatically adhere to the changes in the shape of the fruit, and the thickness of the peel can be adjusted,so the peel loss is less and the pulp utilization ratio is high.

Set the parameters and any action on the touch screen, put the fruit (fruit handle upward) into the bowl of the four workplaces, and automatically position the multiple actions of automatic peeling, cutting ring, removing core and cutting disc etc.

It can be used for apples, pears, oranges, kiwifruit and so on.The peeling machine is necessary for processing canned fruit,dried fruit, fruit powder, jam, fruit cake and juice processing plants. Compared with traditional artificial peeling, it has the advantages of high efficiency, uniform thickness, less fruit loss, stable quality and safety and hygiene.

Ⅱ. Technical parameters

The machine is designed for peeling fruit,high rate of peel removing,and it well adapts to the shape of different fruit ,Apple,pear,orange,kiwifruit,Avocodo;
Slicing thickness:Determined by the customer, it’s fixed, cannot adjust;
There is generally no need to replace the blade unless a hard sharp object enters.
Compressed air consumption: 1m3/min, pressure:≤0.7MPa;
Dimension: 3450*1200*1700mm;
Weight:500kg
Servo motor pulse positioning, PLC and touch screen control;

Model

Capacity

Power

Peeling

thickness

Peeling rate

Fruit

diameter

Fruit height

Core diameter

SXPJ4-3600

30-40pcs/min
