200L-High Capacity Fresh Milk UHT Pasteurization Sterilizing Equipment Machine

Product details
Dimension(L*W*H):Adjustable;After-sales Service Provided:Engineers available to service machinery overseas;
Material:Stainless Steel 304;Product type:Tubular;
Warranty:1 Year;Power(W):Adjustable;
Package Type:Standard packing for export(wooden case or iron sheet) for 200L-High Capacity Fresh Milk UHT Pasteurization Sterilizing Equipment Machine...;Place of Origin:Jiangsu China (Mainland);
Certification:ISO CE;Capacity:1-2t/h;
Single gross weight:285 KG;Selling Units:Single item;
Product name:200L Fresh Milk Sterilizing;Brand Name:Elite;
Function:Automatic;After-sales Service Provided:Field installation, commissioning and training;
Voltage:220-44V;Delivery Detail:0 days after payment;
Single package size:122X62X220 cm;Feature:Closed type;
Condition:New;MOQ:1 Set;
Advantage:Easy operation;Weight:Adjustable;
Application:Juice or milk;
Product Description

200L-High Capacity Fresh Milk UHT Pasteurization Sterilizing Equipment Machine

SJ,TG-UHT type sterilization it's mainly composed of steam system, material system, hot water system, cooling system, reflux system, CIP cleaning system and control system.
The materials are heated to 90-140 ℃ by pump input heat exchanger from the balance tank, then constant temperature at 95-98 ℃, and finally cooled to 35-85 ℃ for filling.The whole process takes place in a closed state.The system can be equipped with variable frequency control to adapt to different packaging speed, and can be used with the central CIP system.
The electrical control system of the equipment USES the whole process (from the cleaning of the equipment to the heat treatment of the material).The electric control cabinet is equipped with 10 "color touch screen, which monitors the work of the whole equipment.
The deviation will be issued and controlled and adjusted by the PLC control system to ensure the effective work of the equipment.

Technical parameters
Name Model
SJ
UHT
TG-UHT
Production capacity(T/H)
1-10
1-3
1-10
warm keeping time (s)
-
4-15
4-15
Material inlet temperature
5℃
Sterilizing temperature
65-138℃
Material outlet temperature
80-90℃
4-65℃
4-65℃
Steam cost
150-320KG/H
Compressed air pressure
>0.6Mpa
Detailed Images

SJ tube sterilizater / Pasteurizer machine

 UHT coil sterilizer / Pasteurizer machine

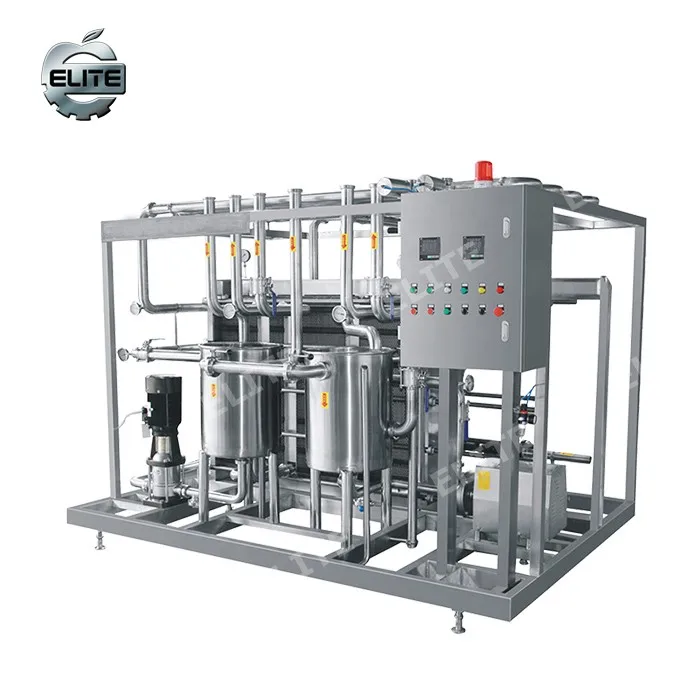

BSJ Plate sterilizer / Pasteurizer machine

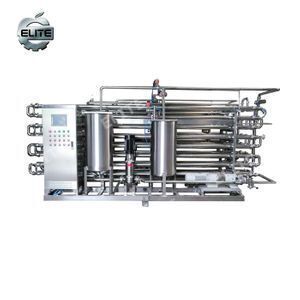

TG-UHT tube-in-tube sterilizater / Pasteurizer machine
