low cost water flow meter Ultrasonic Clamp-on sensor for flowmeter

Supplier: Shenzhen Hurricane Tech. Co., Ltd.
Region: Guangdong, China
Contact: Mr Hill Lee
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Display:	LCD display;	Payment Terms:	T/T,Western Union,PayPal;
Port:	SHENZEHN;	Diameter:	DN15~DN50, DN65~DN300;
Brand Name:	Hurricane;	Packaging Detail:	Standard Aluminum Box;
accurancy:	1.5%;	data transfer:	wifi;
Measurable:	Running water;	power:	3~4W;
Place of Origin:	Guangdong China (Mainland);	Type:	Clamp-on;
Output:	12V 1A;	Model Number:	UFM4315K;
Supply Ability:	5000 Set/Sets per Week portable liquid flow meter;	Flow rate:	0-6m/s;
pipe material:	ABS, aluminum alloy;

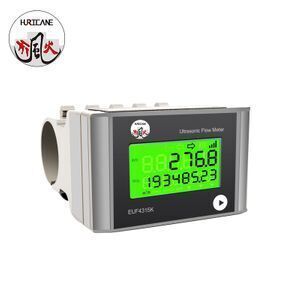

Ultrasonic flow meter
	Model	EUF4315K
»	Item name	clamp-on flow meter
»	Flow rate	0.03~20ft/s(0.1~6m/s)
»	Accuracy level	1.5%(FS)
»	Pipe Size:	DN15 ~DN63
»	Keyboard	no
»	Display	LCD digital
»	Power	3~4W
»	Protection Level	IP54
»	Operating Temperature	0℃~+50℃
»	Case Material	Aluminum Alloy
»	Cable length	3m


Ultrasonic Distance/Level Sensor with Digital Output	Bottom-mounted Ultrasonic Fuel Level Sensor with Digital Output	Ultrasonic Depth Transducers in Liquid

Ultrasonic Flow Meters Product Name sewage water flow meter EUF4315K Clamp on meter

Sensor Application

1.Replace traditional wheel flow meter
2.Flow measurement control and monitor
3.Calculate flow volume
4.Pump protection
5.Proportion control
6.Water allocation
7.Leakage detection

Question 1: What’s the lead-time of the ultrasonic flow meter?
---[CNIRHurricane’ Answer]: Samples could be ready in 7-10working days normally. For big orders, please contact our sales departments.

Question 2: How can I get samples or place orders for the ultrasonic flow meter?
--- [CNIRHurricane’ Answer]:

You could place order on Alibaba directly.
For some products, FREE samples are available.
If any questions, contact our sales department or after services department.

Question 3: What’s the MOQ of ultrsonic flow meter?
--- [CNIRHurricane’ Answer]:

For Flow meter. MOQ: 1pcs
For other products, MOQ: 5pcs
OEM products, MOQ is negotiable

Question 4: What’s the Warranty?
--- [CNIRHurricane’ Answer]: 12month normally. It is negotiable.

Question 5: I want to have a company/factory audit, How could I get there?
--- [CNIRHurricane’ Answer]: Welcome to visit us anytime. You could fly to Shenzhen, we will pick you up. Or Contact our sales/after services department for any assistant.

Question 6: What’s your Quality Control System?
--- [CNIRHurricane’ Answer]: Approval with ISO9001- Quality management.
