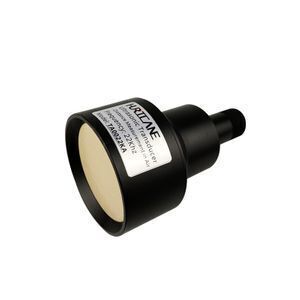

80cm - 20meter Long Range Distance Sensor 22Khz Ultrasonic Transducer Measuring in Air

Supplier: Shenzhen Hurricane Tech. Co., Ltd.
Region: Guangdong, China
Contact: Mr Hill Lee
Price: $158.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Brand Name:	Hurricane;	Place of Origin:	Guangdong China (Mainland);
Sensitive for transducer:	-60dB min;	Output:	Analog 30 meter Distance Sensor;
Single package size:	20X20X15 cm;	Theory:	Ultrasonic Sensor;
Launch angle beam (-6dB full angle):	15±2°;	Usage:	Distance sensor;
Bandwidth of transducers:	2.0Khz;	ultrasonic sensor frequency (kHz):	22KHz;
Distance ultrasonic sensors:	80cm - 30 meters;	Model Number:	TA0022KA;
Single gross weight:	2.5 KG;	Package Type:	One 22Khz Ultrasonic Transducer is packed in One Carton Box; The Total Weight of the Ultrasonic Distance Sensor in one Package is about 2.5KG.;
Maximum Operating Voltage:	2800Vp-p;	Delivery Detail:	0 days after payment;
Protection level of sensors:	IP65;	Ultrasonic Senser Installation:	Fixed with screw;
Operating temperature:	-20 ~70℃;	Selling Units:	Single item;
Electrostatic Capacity:	5000PF±20%;

80cm - 20meter Long Range Distance Sensor 22Khz Ultrasonic Transducer Measuring in Air

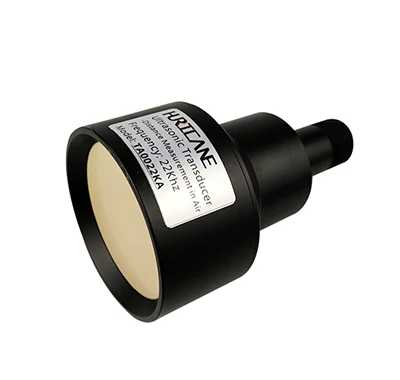

22Khz Ultrasonic Distance Sensor
	Model	TA0022KA
»	Centra Working Frequency	22Khz±2KHZ
»	Bandwidth	2.0Khz
»	Overal Sensitivity (0dB=3Vp-p; Cycle: 8; Distance 8cm, Transmitter and Receiver)	-60dB min
»	Beam Angle (-3dB Full Angle)	15°±2°
»	Electrostatic Capacity	5000PF±20%
»	Minimal Parallel Impedance	300Ω±30%
»	Maxim Operating Voltage (Pulse Duty Cycle Ratio 2%)	2800Vp-p
»	Distance Sensor	Measure 80cm-30meters
»	Operating Temperature	-20 to 70°C
»	Housing Material	PVC, others can be customized
»	Size(Diameter*Height, mm)	Dia 105x175mm


Ultrasonic Distance/Level Sensor with Digital Output	Bottom-mounted Ultrasonic Fuel Level Sensor with Digital Output	Ultrasonic Depth Transducers in Liquid

Ultrasonic Sensor
for Long Distance Measurement

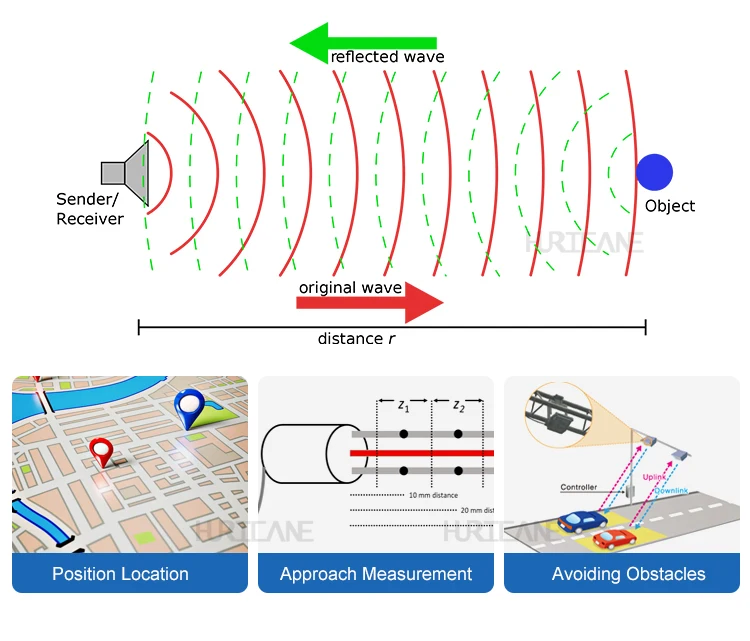

Sensor Application

» Position Location
» Approach measurement
» Traffic Measurement
» Avoiding Obstacles

Question 1: What’s the lead-time of the ultrasonic transducer/sensors?
---[CNIRHurricane’ Answer]: Samples could be ready in 1hours -5working days normally. For big orders, please contact our sales departments.

Question 2: How can I get samples or place orders for the distance ultrasonic sensor?
--- [CNIRHurricane’ Answer]:

You could place order on Alibaba directly.
For some products, FREE samples are available.
If any questions, contact our sales department or after services department.

Question 3: What’s the MOQ of ultrsonic distance sensor?
--- [CNIRHurricane’ Answer]:

For Flow Sensors/Transducers, it works in pair normally. MOQ: 2pcs
For other products, MOQ: 1pcs
OEM products, MOQ is negotiable

Question 4: What’s the Warranty?
--- [CNIRHurricane’ Answer]: 12month normally. It is negotiable.

Question 5: I want to have a company/factory audit, How could I get there?
--- [CNIRHurricane’ Answer]: Welcome to visit us anytime. You could fly to Shenzhen, we will pick you up. Or Contact our sales/after services department for any assistant.

Question 6: What’s your Quality Control System?
--- [CNIRHurricane’ Answer]: Approval with ISO9001- Quality management.
