Heavy oil and high viscosity oil measurement oval gear flowmeter Products from Kaifeng Huabang Instrument Co., Ltd.

Product Details

Place of origin:	Henan, China	temperature:	-20℃~+200℃
Material:	Carbon steel, stainless steel	brand:	HB
Sales unit:	Single product	Gross weight of single piece:	42.500kg
type:	Variable area petroleum flowmeter, fixed displacement flowmeter, oval gear flowmeter, volumetric flowmeter	Warranty:	1 year
model:	HB-LC	accuracy:	0.2%/0.5%
Certification:	Cerium isocyanate	Customization support:	OEM, ODM, OBM, software reengineering
Packaging details:	Transparent plastic bags, cartons or foam boxes, cartons or pallets	Moderate:	Liquid; fuel; diesel; pure water; gasoline
product name:	Oval gear flow meter	color:	Green blue
Package preview:		pressure:	1.6-6.4mpa or higher
connect:	Flange: DN4-DN200	Single piece packaging size:	31X18X19 cm
Output:	Can be equipped with 4-20ma module

product information

Oval gear flow meter

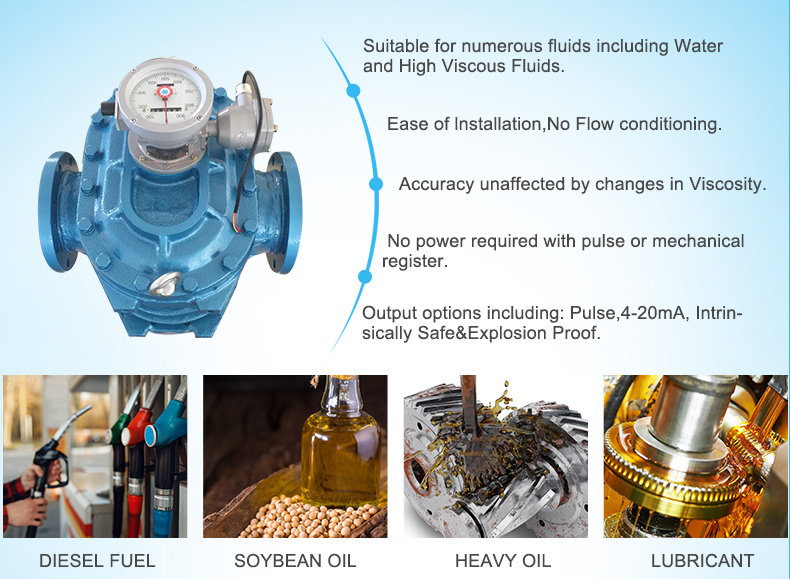

·Suitable for diesel, engine oil, butter, asphalt, resin and other oils, high viscosity, high temperature liquids.·It has stable volume measurement to ensure accurate measurement.·Supports pulse, analog, 485 communication and other signal transmission.·Supports remote wireless transmission, and data can be viewed at any time on a computer or mobile phone.

Product parameters

Technical Parameters
Output:	4-20mA
accuracy:	1.0%
Flange:	DN4-DN200
Material:	Stainless steel
pressure:	1.6-6.4mpa or higher
power supply:	24VDC/3.6V lithium battery

Diameter(mm)	Viscositympa.s
Diameter(mm)		0.3-0.8	0.8-2	2-8	8-200
10	0.2-0.4	0.15-0.5	0.1-0.5	0.08-0.5
15	0.75-1.5	0.5-1.5	0.3-1.5	0.25-1
20	1.5-3	1-3	0.6-3	0.5-3
25	3-6	2-6	1.2-6	1-6
40	7.5-15	5-15	3-15	2.5-15
50	12-24th	8-24	4.8-24	4-24
65	20-40	15-40	8-40	6.5-40
80	30-60	20-60	12-60	10-60
100	50-100	34-100	20-100	16-100
150	95-190	64-190	38-190	32-190
200	170-340	120-340	68-340	56-340

Applicable scene

Suitable for diesel, engine oil, lubricating oil, thermal oil, naphtha, butter, asphalt, resin, syrup and other oils, high viscosity, high temperature liquids.

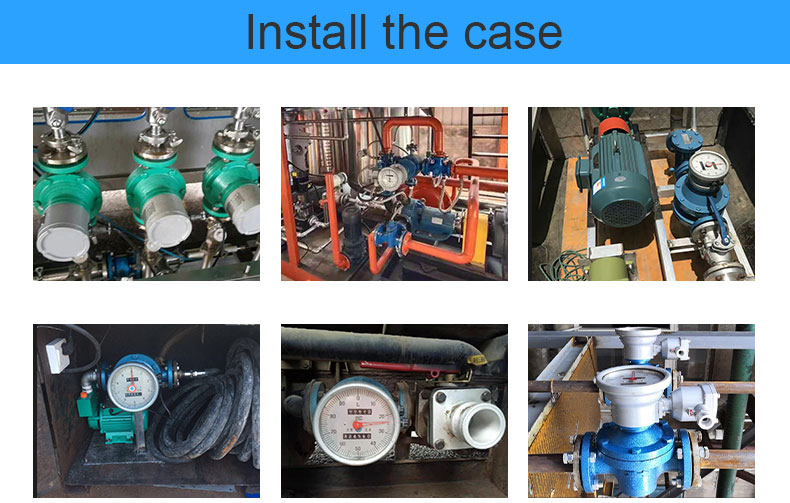

Product Case
