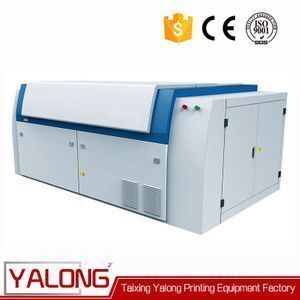

amsky cron metal ctp/ctcp plate printing machine price

Supplier: Taixing Yalong Printing Equipment Factory
Region: Jiangsu, China
Contact: Mr Peter Zhang
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

product name:	amsky cron metal ctp/ctcp plate printing machine price;	Screen ruling:	300lpi;
Brand Name:	SHANGHAI NANREN;	Plate size:	Max. 830mm x 660mm; Min. 450mm x 340mm;
Condition:	New;	Warranty:	One Year;
Delivery Detail:	Shipped in 10 days after payment;	External dimension:	LxWxH=1950mmx1120mmx1130mm;
Net weight:	1200kg;	Power supply:	AC 220V 5KW;
Type:	ctp plate making machine;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Model Number:	EP400-iii;	Place of Origin:	Jiangsu China (Mainland);
FM dots output:	10μm;	Certification:	CE ISO;
Output resolution:	2400dpi;	Weight:	1200kg;
Plate thickness:	0.15~0.4mm;	Port:	shanghai;
Dimension(LWH):	LxWxH=1950mmx1120mmx1130mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	500 Set/Sets per Year;	Voltage:	220V;
Power(W):	5KW;	Repeatability precision:	±0.005mm;
Automatic Grade:	Automatic;	Packaging Detail:	the package of amsky cron metal ctp/ctcp plate printing machine price: 1. machine in wooden box. 2.spare parts in tool box. 3.If any special requirements, we will pack it as requested. 4. instruction books 5. video for operation;

amsky cron metal ctp/ctcp plate printing machine price

Model	EP400-i	EP400-ii	EP400-iii	EP400U-i	EP400U-ii	EP400U-iii
Laser system	830nm LD, 32 channels	830nm LD, 48 channels	830nm LD, 64 channels	405nm LD, 32 channels	405nm LD, 48 channels	405nm LD, 64 channels
Resolution	2400dpi
Output speed (2400dpi)	15p/h	25p/h	30p/h	15p/h	25p/h	30p/h
Exposure structure	External drum
Plate size	Max. 830mm x 660mm; Min. 450mm x 340mm
Plate thickness	0.15~0.4mm
max hanged line	300lpi
FM dots output	10μm
Repeatability	±0.005mm
Power supply	AC 220V AC/50HZ-60HZ 5KW (Single phase)
External dimension	L x W x H = 1950mm x 1120mm x 1130mm 1200kg

Model	EP400-T424	EP400-T432	EP400-T448	EP400-U424	EP400-U432	EP400-U448
Exposing Method	External Drum
Imaging System	24-channel	32-channel	48-channel	24-channel	32-channel	48-channel
	Discrete 830nm laser			Discrete 400-410nm laser
Output speed	16 plates/hour	22 plates/hour	28 plates/hour	16 plates/hour	22 plates/hour	28 plates/hour
	800x660mm 2,400dpi
Plate Size	Max.800x660mm.Min.400x300mm
Exposing Size	Max.800x646mm
Plate Type	Thermal plate			UV plate,high-sensitive PS plate
Plate Thickness	0.15mm-0.3mm
Resolutions	2,400dpi
Repeatability	±0.005mm
Interface	USB2.0
Plate Loading	First manual,then autoload
Net Weight	800KG
Device Size	1,900x1,200x1,000mm(WxDxH)
Power Supply	Single phase:220V;Power:4KW
Environment	Recommended temperature:21-25℃ Allowable temperature:18-26℃ Humidity:<70%

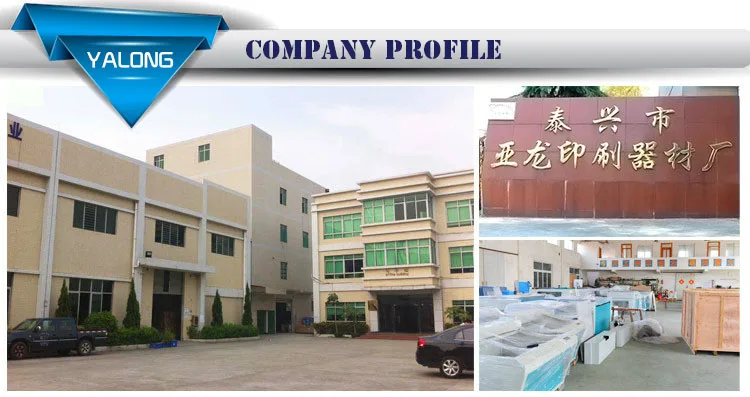

Taixing Yalong Printing Equipment Factory,located in Taixing-“Ginkgo Hometown”, is a professional

corporation working on production and sales of positive PS plate, thermal CTP plate and UV-CTP,

CTCP Plate. Quality, price, time is the service tenet of our company; Credit, coordination, cooperation

is our company’s fundament; Unit, innovationand objectivity is our company’s enterprise spirit. We will

continue to keep a technical innovation, standardized operation and scienti-fic management. We will

use high yield,superior quality, reasonable prices and perfect service toreturn the elite printing industry.

Tel:86-0523-87426596 Fax:86-523-87428336 MP:86-18082351999 13852690368

Add:Hongqiao Industrial Park,Taixing,Jiangsu province,China

1. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, please

call us or tell us in your email so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide

you sample , as long as you afford the express freight.

3.What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit

if no tooling needed.
