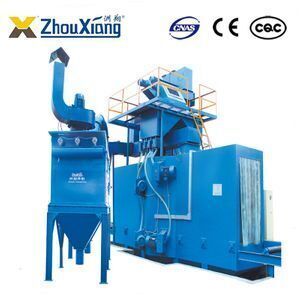

China Supplier Surface Dustless H Beam Metal Shot Blasting Machine

Product details
Supply Ability:30 Set/Sets per Month;Condition:New;
Use:Burnishing,Container / Bottle Cleaning,Deflashing,Degreasing,Descaling / Stripping,Sterilizing / Disinfecting;Place of Origin:Jiangsu China (Mainland);
Width*height of work-piece:800*1600mm;Fuel:Electric;
Air volume for dust removal:12000m3/h;Cleaning Process:shots;
Payment Terms:L/C,T/T;Conveying speed:0.5~5m/min;
Port:Shanghai;Packaging Detail:Packing in naked,steel frame,wooden case,export standard packing;
Applicable Industries:Manufacturing Plant;Machine Type:Abrator;
After-sales Service Provided:Online support;Cleaning Type:Clean-In-Place (CIP);
Length of work-piece:3000~12000mm;Power(W):220/380/400/440V;
Depth of pit:1950mm;Dimension(L*W*H):Depends;
Circulation quantity of grinding shots:120t/h;Warranty:1 Year;
Total power:135KW;Certification:CE,ISO9001;
Allowable load of conveyor:1000kg/m;Material:Metal / Coil;
Quantity of Shot blaster:8;Brand Name:Zhouxiang;
Name:H Beam Metal Shot Blasting Machine;

China Supplier Surface Dustless H Beam Metal Shot Blasting Machine

Product Description



Model

HGP0816

HGP1018

HGP1220

Width×height of work-piece

800×1600mm

1000×1600mm

1200×2000mm

Length of work-piece

3000~12000mm

3000~15000mm

3000~15000mm

Quantity of Shot blaster

8

8

8

Allowable load of conveyor

1000kg/m

1000kg/m

1000kg/m

Conveying speed

0.5~5m/min

0.5~5m/min

0.5~5m/min

Air volume for dust removal

12000m3/h

12000m3/h

12000m3/h

Circulation quantity of grinding shots

120t/h

120t/h

120t/h

External dimension of main machine (L×W×H)

6770×2100×2900mm

7200×2300×3250mm

7200×2520×3650mm

Depth of pit

1950mm

1950mm

1820mm

Total power

135kW

140kW

140kW

Above are our standard model, it can be designed and manufactured according to customer’s request.







Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding work-piece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the work-piece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.

The import and export are equipped
with multi-layer rubber curtains seal
-ed tightly,it prevent rust and dust
pouring out.

The separation device uses the mo
-st advanced full curtain type shot
and slag separator, the separation
efficiency can reach 99%.

The arrangement of chamber and
shot blaster is confirmed after shot
blasting simulation by Solidworks
3D dynamic software, there’s a
certain angle between shot blaster
and work-piece.

It adopts high efficiency QZ320 shot
blaster, which can significantly imp
-rove the cleaning efficiency, to ach
-ieve a satisfactory cleaning quality.

Shot blaster adopts QZ3204 cur
-ve vane with precision manufa
-cturing. The wearing parts has
long service life, easy to replace.

It adopts filter cartridge type dust
collector, dust emission within
80-120mg/m³, which can improve
the working environment.

      Pipe Shot Blasting Machine                              Sheet Shot Blasting Machine

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.                                                                                                                                             We have high sincerity to do business with customers all over the world and establish good friendships.

FAQ

1)Q:Are you a factory or trading company?

A: We are a factory and trading company.

2) Q:Where is your factory located? How can I visit there?

A: Our factory is located in Jiangsu Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3) Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO, CE certificate.

4) Q:Do you give any discount ?

A:I'll surely try my best to help you get those by the best price and good service at the same time.

5) Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.
