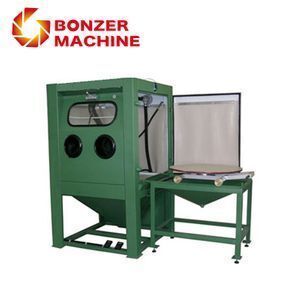

Wet Blasting Cabinet Type Sand Blasting Machine For Sale

Supplier: Zibo Bonzer Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Ken wang
Price: $7300.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support;	Single gross weight:	600 KG;
Pressure:	0.5-0.8Mpa;	Warranty:	1 Year;
Condition:	New;	Cleaning Type:	shot peening,sand blasting;
Machine Type:	Abrator;	Color:	Customers Requirement;
Package Preview:	https://sc02.alicdn.com/kf/HLB1UYePLyrpK1RjSZFhq6xSdXXaI.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1coqKLBLoK1RjSZFuq6xn0XXaH.jpg_640x640.jpg;	After-sales Service Provided:	Engineers available to service machinery overseas;
Fuel:	Electric;	Place of Origin:	Shandong China (Mainland);
Application:	Rust Removal;	Use:	Container / Bottle Cleaning,Descaling / Stripping;
Certification:	CE,GS;	Abrasive:	Corundum abrasives,glass beads;
Type:	Sand blasting cabinet;	Name:	Wet Blasting Cabinet Type Sand Blasting Machine For Sale;
Voltage:	380V/50HZ (Customized);	Cleaning Process:	steel shot,steel grit ,soda,water.etc;
Package Type:	Wooden case for Wet Blasting Cabinet Type Sand Blasting Machine For Sale .;	Dimension(LWH):	1100w1600th2100h(mm);
Package:	Wooden case;	Total power:	About 4.2kw;
Material:	casting ,forging;	Brand Name:	BONZER;
Single package size:	1100X1600X2100 cm;	Selling Units:	Single item;
Power(W):	Customizd;

Wet Blasting Cabinet Type Sand Blasting Machine For Sale

Product Description

1)Application scope

a. It is suitable for liquid sand /shot blasting processing.
b. It is suitable for cleaning the rough surface of the precision castings, removing the oxide scale, removing the micro-burr of the machined parts, cleaning the dirt and rust stain of the oil-stained parts, decorating the surface, Surface processing, improve the performance of the use of mechanical parts and other small parts of the single-piece, small batch sandblasting processing.

2)Component

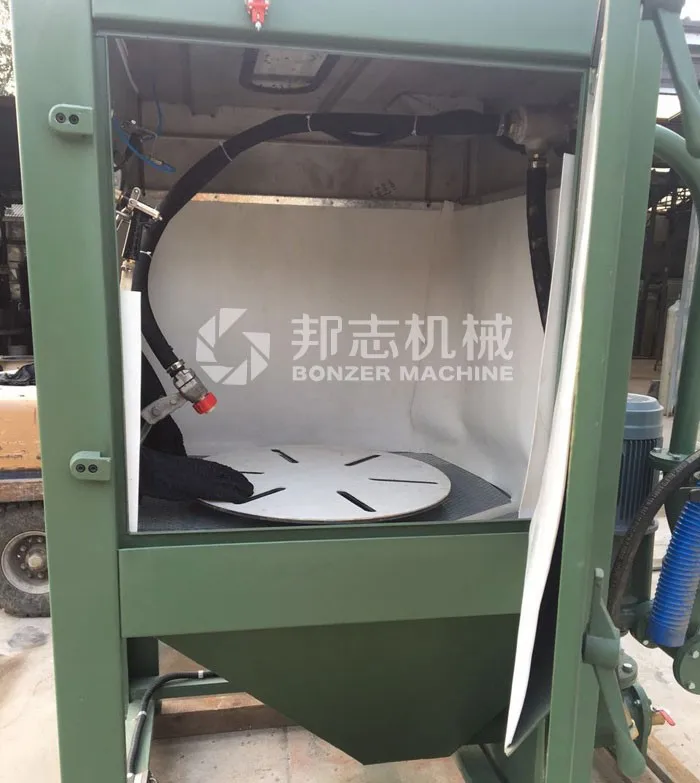

This machine is composed of main cabin, rotary table, sand water circulation system, gun sand road system, pneumatic system, electrical control system and so on.

Technical Parameters

Outline dimension	1100(W)×1600(Th)×2100(H)mm
Dimension of work cabin	1050(W)×1050(Th)×1000(H)mm
Cabin door dimension	850(W)×840(H)mm
Mobile rotary table size	Diameter Φ800mm,Loading weight 200Kg
Total weight	Net weight about 500Kg
Power supply,total power	AC380V,50Hz,about 4.2KW
Grinding fluid pump motor	AC380V,50Hz,4KW,2800r/min
Lighting device	AC220V,50Hz,2×20W fluorescent lamp
Control circuit voltage	AC24V
Spray gun	1pc manual spray gun
Nozzle diameter	Φ12.5mm
Air pressure and displacement	0.8~1.0MPa,1.5M³/min
Working pressure	After starts working the reducing valve pressure 0.5 ~ 0.8MPa
Single gun air consumption	About 1-1.2M³/min (determined by air pressure)
Dimensions of gas pipe joints	Φ13mm(Hose ) or G1/2"( Hard tube)
Water	Industrial tap water
Dimension of water pipe joints	Φ13mm( Hose) or G1/2"(Hard tube)
Tank grinding fluid volume	About 110L
Abrasive type	Recommended to use corundum abrasives, glass beads
Abrasive size	24# ~ 320#below
Abrasive addition	15~ 20Kg [Grinding fluid weight ratio: 1: 5 ~ 1: 7 (dry abrasive: water)]
