G16 Best Price Smart Pet Collar Mini GPS Tracker Dog Cat Bird Locator Anti-lost Free APP+Network+SMS Tracking System Google Maps

Supplier: Shenzhen Zhong Xun Chuangzhi Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Rossi Wang
Price: $20.50 / 2 - 49 pieces
$20.00 / 50 - 499 pieces
$18.00 / 500 - 2999 pieces
$14.50 / >=3000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

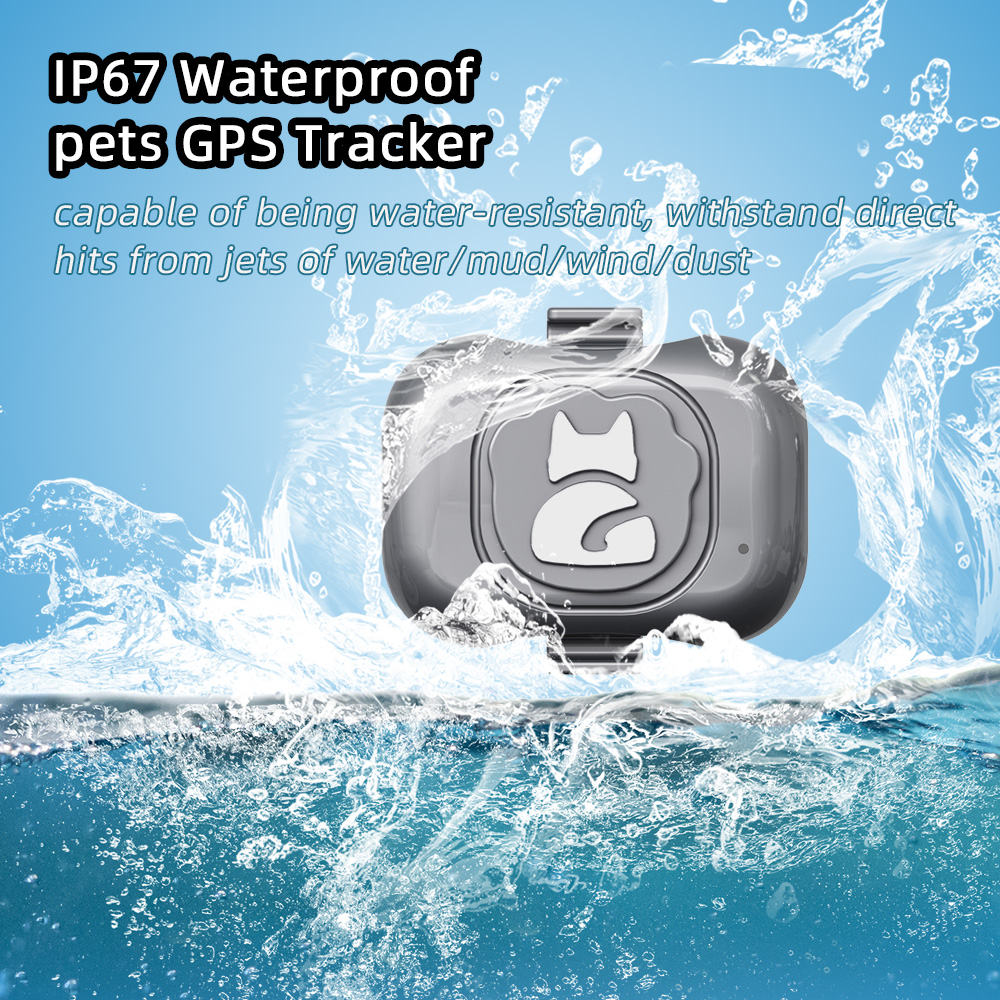

waterproof level:	IP67 waterproof	Package preview:
Origin:	Guangdong, China	feature:	Find device ringtones
emphasize:	Remote control restart, shutdown, and startup	Sales unit:	single product
Warranty:	1 year	Battery life (hours):	>96 hours
Used for:	Cats Dogs Pets and Other Animals	use:	motorcycle, car, handheld, bicycle, pet, dog, cat
brand:	Enid	Function:	track, playback, fence, message
GPS location:	Asia, Europe, Africa, South America, North America, Oceania	Track View:	PC, IOS APP, SMS coordinates, Android APP
Gross weight per piece:	0.270 kg	place:	portable
Packaging Details:	Unisex carton package includes: 1 X GPS Tracker, 1 X Charging Cable, 1 X Instruction Manual, 1 X Pet Collar, 2 X Silicone Sling	Function:	Waterproof, recording, shockproof, loop recording, voice monitoring, overspeed warning, wheel track playback, geofence
application:	365GPS	type:	mini, wireless, built-in
network:	GSM/GPRS 850/900/1800/1900MHz	model:	G16
data storage:	cloud storage	Targeting:	GPS+AGPS+Wifi+LBS+BDS, GSM, GPS, GPRS, LBS, AGPS, Beidou, real-time positioning, emergency positioning, power saving mode
Single pack size:	10X8X3 cm	Battery:	500mAh

top

G16 Best Price Smart Pet Collar Mini GPS Tracker Dog Cat Bird Locator Anti-lost Free APP+Network+SMS Tracking System Google Maps

Main Specifications:

Function	Real-time GPS/AGPS/LBS/Wifi positioning, geographic fence alarm reminder, historical track, class mode, power saving
CPU	Main chip: MT6261, auxiliary chip: AT6558R + MT5931
ROM	32MB
RF PA	6625E

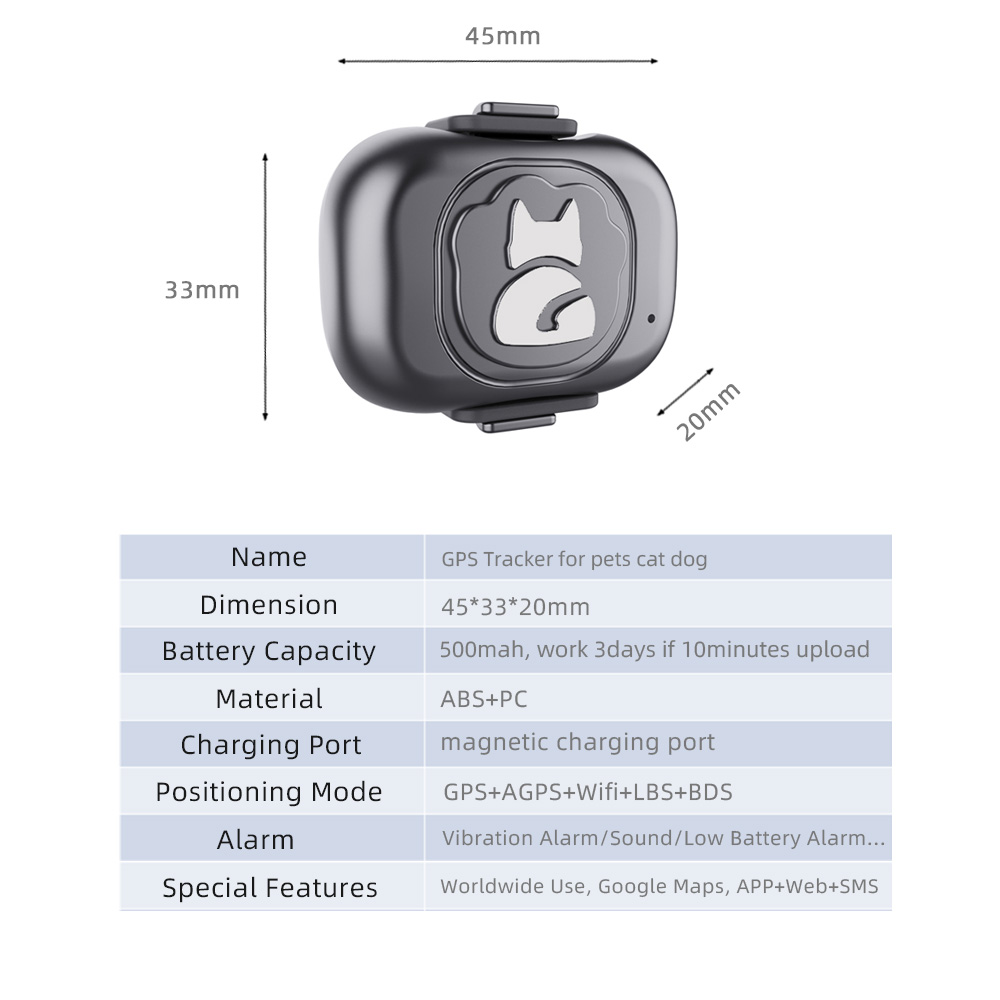

size	453319.7mm
Operating temperature	-20°C - +70°C
network	GSM850/900/1800/1900MHz, support GPRS 12
GSM antenna	PIFA antenna
SIM card slot	Support NANO SIM card
TF card slot	Elective
GPS antenna	12X12 high performance ceramic antenna
GPS positioning accuracy	within 10 meters
GPS Motion Accuracy	0.1m/s
GPS positioning time	Cold start-38s (empty field), hot start 2s (empty field) Field), the specific time is affected by the environment
WIFI positioning accuracy	within 50 meters
GSM positioning accuracy	50-200 meters (depends on the network)
Battery	Rechargeable 5V 3.7V500mAhlithium polymer battery
charging port	Android micro-USB port
recharging current:	DC 5V/0.5A-1A (Depends on your battery capacity)
microphone/speaker	Integrated silicone microphone, without speaker
sensor	Built-in 3D G sensor

attention:

1: This model can only use 2G GSM network (GSM 850/900/1800/1900, support Nano sim card), please make sure the GPRS network is available, please confirm your network with the local telecom operator.

2. Tracking service

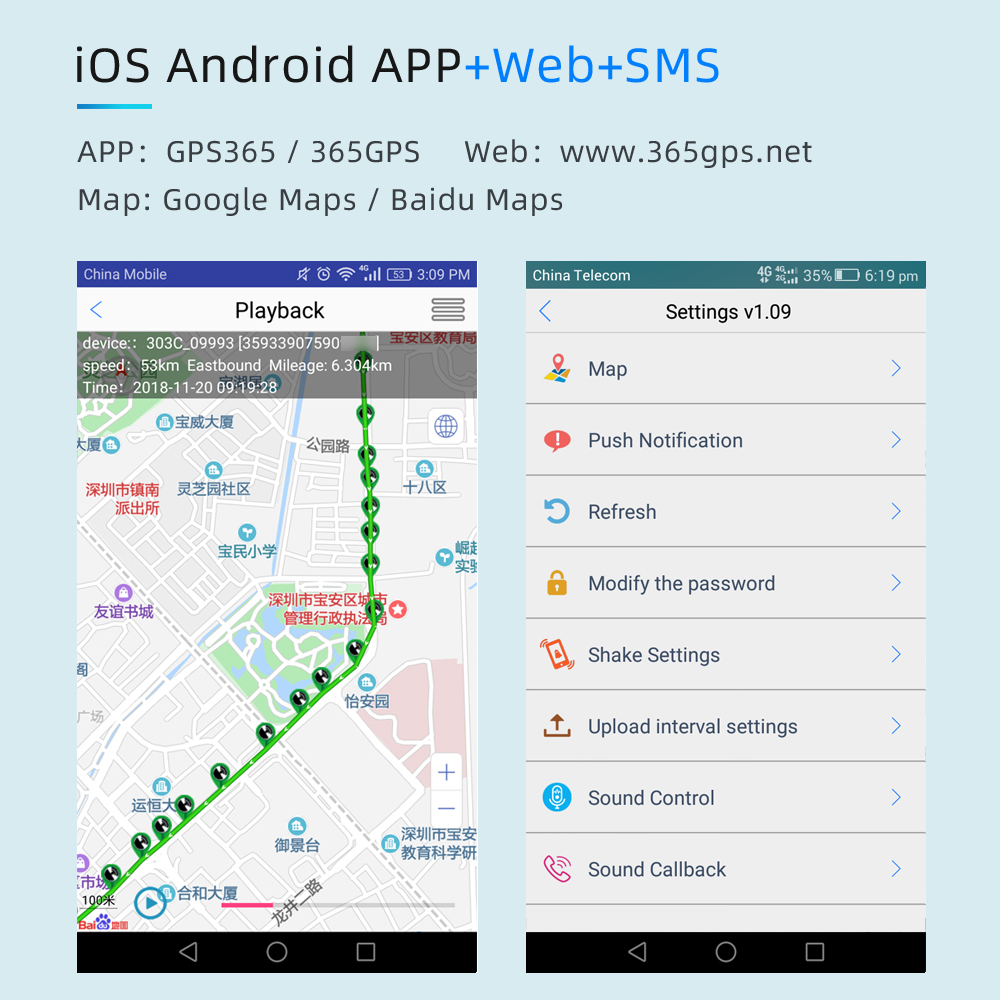

Platform: www.365gps.net

3. QR code

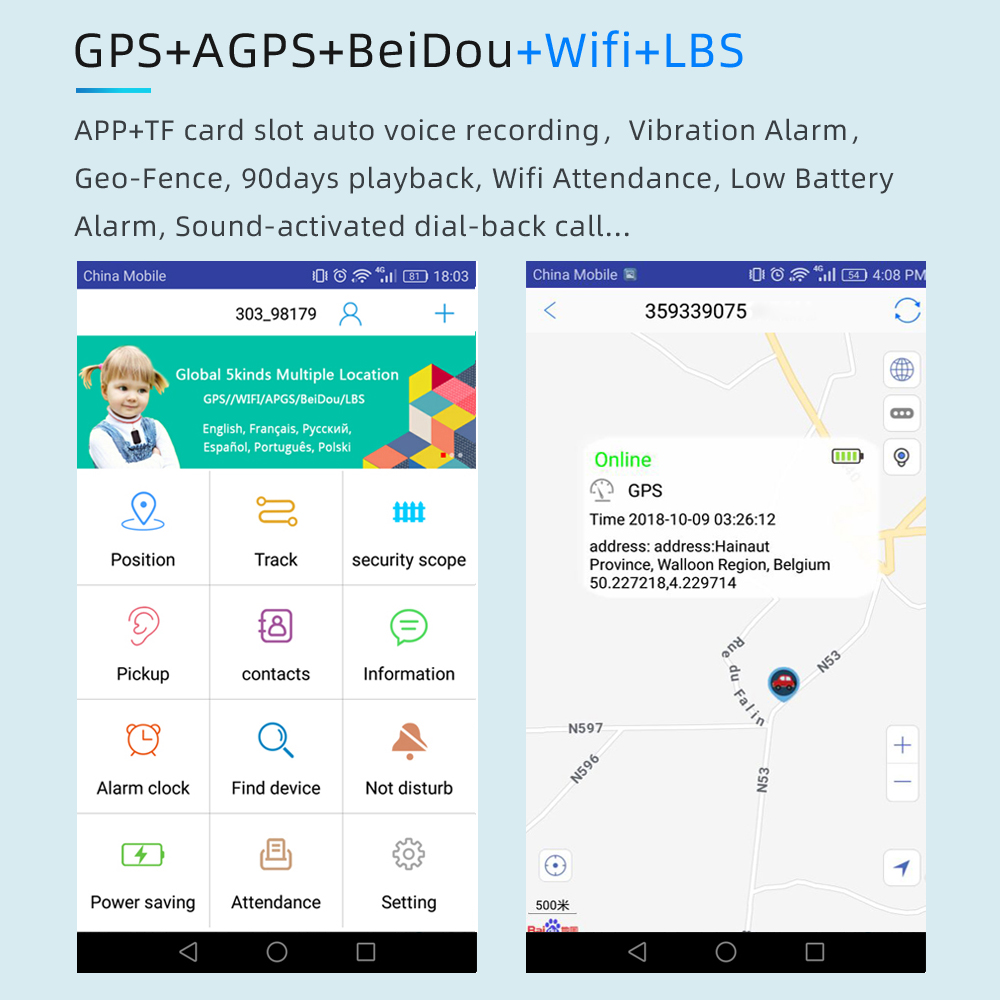

Click "Demo" to log in to the APP

feature:

Multiple positioning modes: GPS+AGPS+LBS+WIFI

Global GSM+GPRS quad-band system: 850/900/1800/1900MHz

Trajectory: The specific location of the user can be queried through the mobile APP or computer

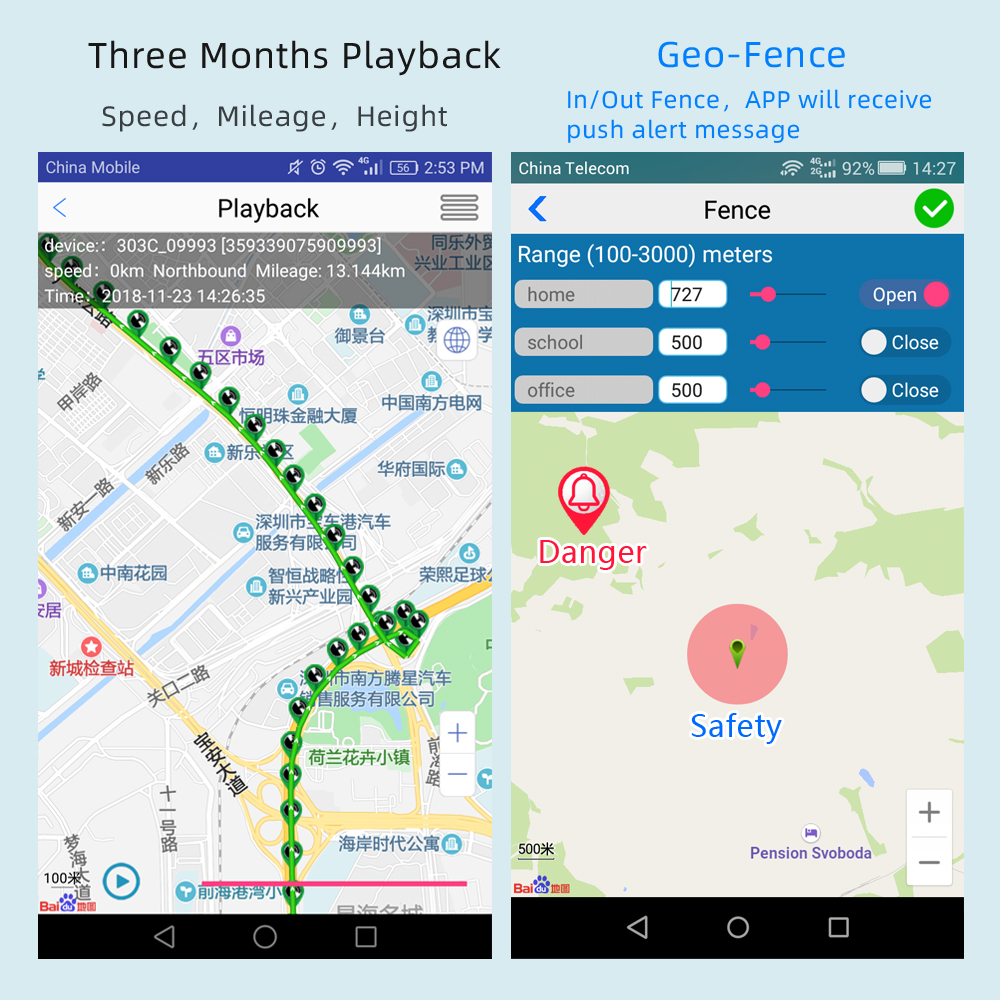

Fence: Designate an area on the map with the device as the center point, and the alarm will
Playback: Query the mobile route of the device in the past 3 months anytime, anywhere

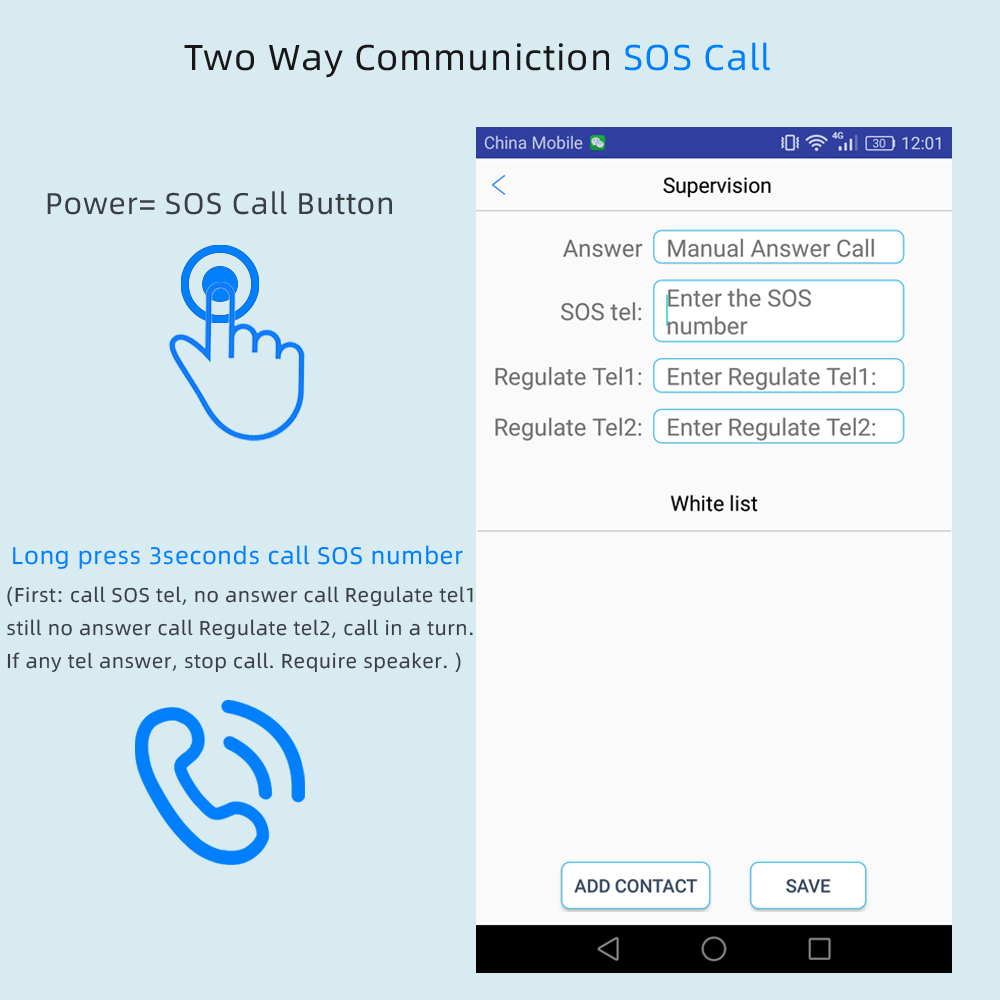

SOS: In an emergency, press the SOS button, the device will send out a call and
Ask the guardian for help information (press and hold the power button for 4 seconds)

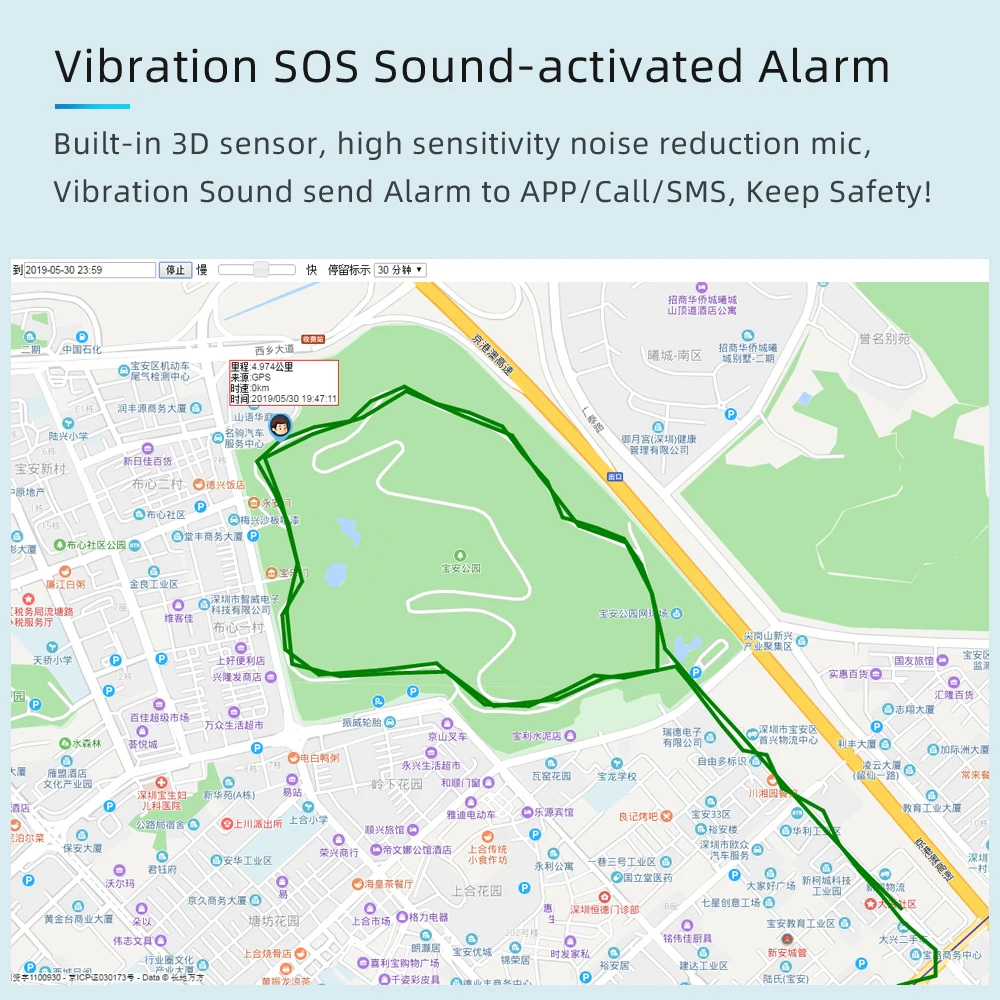

Voice: Using a highly sensitive microphone, you can hear the sound around the device in real time
If a user has an emergency

Remote shutdown: the device can be turned off through the guardian's mobile phone APP

Remote restart: the device can be restarted through the guardian's mobile phone APP

Smart power saving: the device turns off/on GPS and data upload within the specified time range
Maps: Baidu Maps, Google Maps.

SMS command:

1 - Reset to default password: "pwrst"

2 - Factory reset: "1122"

3 - Query IMEI: "imei#"

4 - Modify IMEI: "imei#+no.ofimei" (eg: IMEI#2000000000000001)

5 - LED light on/off: "led#on/led#off"

6 - Modify the upload interval:

"Time #+number. (eg: time #1, time interval 1 minute, from 1-60 minutes)

"MD#+number" (for example: MD#10, the time interval is 10 seconds, which can be set to 10-60 seconds)

8 - APN Settings: "APN#parameter#account#password#" (if no account
Password, no need to fill in. )

(For example, China Mobile APN is: CMNET, SMS: APN#CMNET#)

9 - Reboot device: "SYSRST#"

10 - Vibration alarm: 6666#on# / 6666#off# (turn on/off vibration alarm)

11 - Remote pickup call: monitor#Number# (set monitor number), monitor## (cancel
monitor)

12- Power on/off by alarm:

pwonoff#0,0,10#0,0,2
(days, hours, minutes -- this command says power off after 10 minutes, then
2 minutes to turn on again)

SMS operation:

000#number#
number#number# (bind three phone numbers, the number dials the device
Voice monitoring will be performed, or only one number can be bound)

111 (SMS
Recording paused for 10 minutes)

222 (voice
The recording is paused for 10 minutes, and the recording is automatic. If there is a sound, it will be recorded for another 10 minutes.
Every 10 minutes, cancel sending SMS 555)

Chapter 333
(Voice-activated callback binding number)

444 (delete all
memory content)

555 (off
all functions)

666 (vibration
Alarm SMS to the bound number, cancel sending SMS 555)

777 (vibration
Bind the alarm phone number, cancel sending SMS 555)

999 (SMS coordinate positioning)

123#1/0 (Enable/Disable location data automatic upload)

Package includes:

1 GPS tracker

1 X charging cable

1 X User Manual

1 X pet collar
