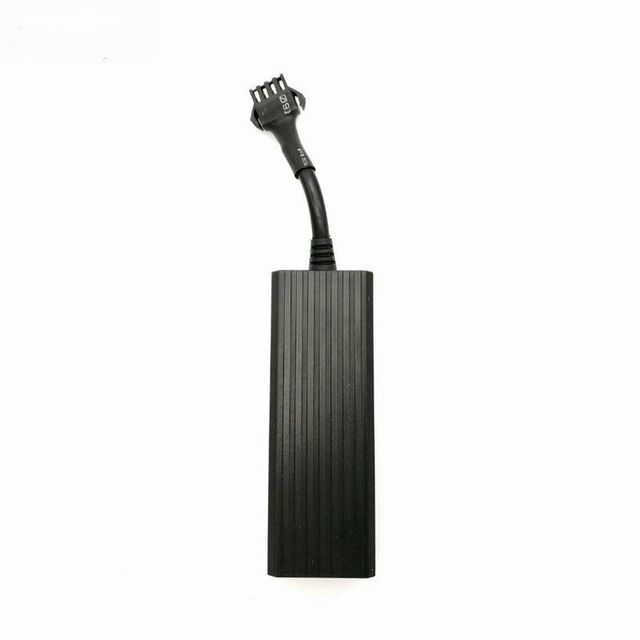

Remote control lock car mini tracker GPS tracker TK003 GT06 for electric scooter

Supplier: Esunway (shenzhen) Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Athena Shen
Price: $9.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 year	Targeting:	GSM, GPS, GPRS, LBS, AGPS, real-time positioning, emergency positioning, power saving mode
Track View:	PC, IOS APP, SMS coordinates, Android APP	type:	GPS tracker, mini, built-in
port:	Shenzhen, Guangzhou, Hong Kong	Function:	Voice Recorder, Shock Resistant, Loop Recording, Street View, ACC Detection, Speed Warning, Wheel Diameter Playback, Geofencing
place:	Portable, Windshield, Dashboard	model:	TK003 Global Positioning System
data storage:	cloud storage	network:	850/900/1800/1900 Quad Band
Operating Voltage:	9-100V	place of origin; place of origin:	Guangdong, China
antenna:	with built-in antenna	use:	motorcycles, cars, bicycles
Battery:	with built-in battery	Supply capacity:	1000 pieces per day
payment terms:	Western Union, T/T, MoneyGram, Paypal	Packaging Details:	carton or plastic bag
GPS module:	MTK MT6261MA

product category

We can provide one-stop customized service for hardware and software

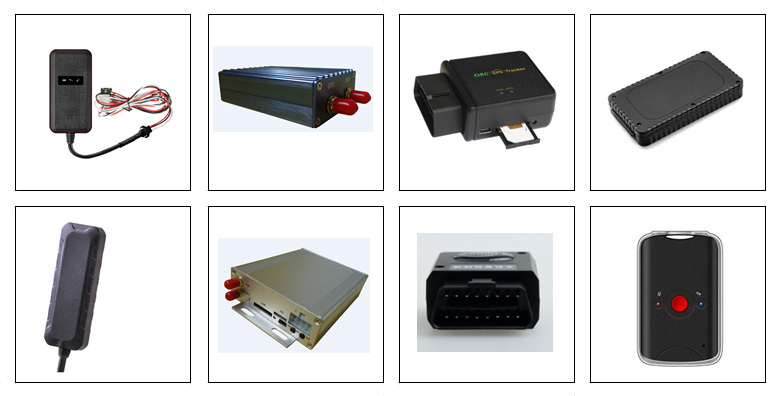

Product Category>>> View More

Product Description

	Product Positioning	Various applications such as passenger cars, logistics vehicles, engineering vehicles, refrigerated vehicles, oil tankers, rental cars, corporate vehicles, etc.
	The main function	1. GSM+GPRS system; 2. Beidou+GPS+LBS multi-positioning system; 3. Real-time positioning track; 4. ACC detection; 5. Remote control to lock the car; 6. Vibration alarm/displacement alarm; 7. Anti-theft alarm; 8. Cut off the alarm 9. Blind area supplement; 10. Bending compensation; 11. GEO fence/cross-border alarm; 12. A variety of query methods; 13365 days track playback;
	main feature	GSM+GPRS system, Beidou/GPS dual-mode positioning system, Overcurrent voltage protection, vehicle positioning, mobile positioning, LBS positioning, track playback, GEO-Fence, motion alarm, Power off alarm, remote power off and oil cut off; intelligent power saving, Blind supplement, remote wireless upgrade, support JT808; Common platform communication protocols such as Hongyuan and Gumi.
	Standby time	2-3 days
	support communication	SIM card
1. Structural division
Structure	category	Specification	Comment
	ID card design	Exquisite and compact, ultra-small and ultra-thin
	Overall size	76mm27mm15mm
	Package dimensions	80mm125mm40mm
	weight	42g without packaging, 68g in box
	color	Black
	button	Do not
	Screen	Do not
	GPS Antenna	FPC Antenna
	GSM antenna	FPC Antenna
	Battery	80 mA
	SIM card slot	1
	Gravity sensor	support
	Input and output ports	DC seat charging
2. Hardware accessories
hardware parts	GSM chip (CPU)	MTK MT6261MA
	GSM band	850/900/1800/1900MHz
	GPS chip	Ublock G7020
	GPRS	Level 12
	GPS signal	L1, 1575.42MHz C/A
	GPS channel number	22 channels
	GPS chip receiving sensitivity	Tracking Sensitivity: -165dBm, Capture Sensitivity: -148dBm
	WIFI positioning accuracy	Do not
	GPS positioning accuracy	<10m
	LBS positioning accuracy	100-1000M
	Minimum standby current	less than 0.5 mA
	Average standby current	less than 2.5 mA
	Average operating current	About 55mA
	Operating temperature	-20~70℃
	Working humidity	5% to 95% non-condensing
	Testing and Certification	Can pass 3C, CE&ROSH certification
	3D Gravity Sensor	support
	microphone	no support
	material texture
3. Software part
software part	Supported Operating Systems	Support android 2.3 and above systems, IOS5.0 and above systems.
	Call functions	Do not
	language support	Simplified Chinese and English	Compatible with multi-language support
	GSM+GPRS+GPS+wifi	GPS+LBS+WIFI multi-mode positioning (optional)
	Support AGPS	Cold start 26 seconds positioning
	Call functions	Do not
	energy management	Power management ultra-low power consumption, intelligent sleep
	One-click emergency	Do not
	Smart Geofencing	If it exceeds the set range, it can automatically alarm
	historical route	Three months of history can be viewed
	Wireless upgrade	Software upgrade, remote debugging and maintenance, remote parameter setting
