GPS GSM Wifi LBS Locator PCBA Module ZX303 Mini GPS Tracker with SOS Alarm Real-Time Web APP Tracking TF Card Voice Recorder

Supplier: Shenzhen Zhong Xun Chuangzhi Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Rossi Wang
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Delivery Detail:	0 days after payment;	Type:	Gps Tracker;
Alarm:	Low Battery Alarm Voice Alarm Vibration Alarm;	Model Number:	ZX303;
Tracking system:	www.365gps.com APP: 365GPS;	Size:	35204.5mm;
Feature1:	Build-in GPS GSM Antennas;	Feature2:	Micro Hidden Install;
Single gross weight:	0.015 KG;	Special Funtion:	Auto Sound Detection Recording save in TF card and APP;
Use:	Hand Held;	Function:	Real-time Tracking SOS Geo-Fence 90days Playback;
Selling Units:	Single item;	Feature3:	Voice Monitor Voice Recording;
Warranty:	24 Months;	Position Accuracy:	Outdoor: GPS 10meters/Indoor: Wifi 10-50meters;
Function:	Mp3/Mp4;	Brand Name:	Topin;
Network:	GSM/GPRS 850/900/1800/1900MHz;	Place of Origin:	Guangdong China (Mainland);
Package Type:	only the pcb module, with GSM GPS antenna , user manual;	Single package size:	3X2X1 cm;
Package Preview:	https://sc01.alicdn.com/kf/HTB1NveflmMmBKNjSZTEq6ysKpXag.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB122HUlcj_B1NjSZFHq6yDWpXa6.jpg_640x640.jpg;

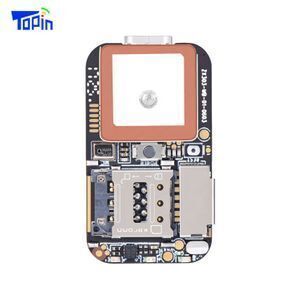

New ZX303 PCBA GPS Tracker GSM GPS Wifi LBS Locator SOS Alarm Web APP Tracking TF Card Voice Recorder SMS Coordinate Dual System

Dual System mean: support both APP positioning and SMS Coordinate

GPS + AGPS + Wifi + LBS + TF card and APP voice recorder + SOS + Voice Monitoring + Make and Receiver Call -- almost all functions to a GPS tracker

First: GPS, Second: Wifi, Last: LBS

( outdoor GPS accuracy 10m-50m, indoor Wifi accuracy 5m-50m )

Module Number	ZX303	Working Voltage	3.7-4.2V
Size	35x20x4.5(mm)	Charging Voltage	5V
Chip	MT2503+MTK3333+MTK5931	Temperature	-20℃ - +70℃
Storage	32M Flash Memory	Humidity	20%-80%RH
RFPA	RDA6625E	SIM Card	Nano SIM Card Holder
GSM Band	850MHz/900MHz/1800 MHz/1900MHz	Standby Average Current	Less than 2mA
GPRS	Class 12	Sensor	3D G-Sensor
Horn	0916 AAC	GSM Antenna	PIFA Antenna
I/O Interface	Built-in Micro 5pin	GPS Antenna	15X15 ceramic antenna
MIC	Built-in High-Definition Silicon microphone (heard the voice within 10metres)	TF card	Support Max 32GB super long voice recording
GPS Accuracy	Within 10Metres	WIFI Positioning Accuracy	Within 50Metres
GSM Positioning Accuracy	50-200Metres (Depending on the network)	Speed Positioning Accuracy	0.1metre/second
GPS Positioning Time	Cold Boot-38s(Open sky) Warm Boot-2s(Open sky) The specific time is affected by the environment	Charging Current	Charging 5V 800mAh (Set current according to different battery capacities)

Specifications

Multiple Positioning Mode: GPS+ AGPS+LBS+WIFI + TF Card and APP Voice Recorder

Worldwide GSM+GPRS 4-frequency System: 850/900/1800/1900MHz

Automatic Time Update: Precise GPS time service and no manual time adjustment is needed

Track: The user's specific location can be inquired through the cell phone APP or the computer

Fence: Designate an area on the map by setting the device as the center point and the alarm will be triggered off immediately once the user of the device goes into or out of this area

PlayBack: Inquire the moving routes of the device in the past 3 months anytime and anywhere

SOS: In case of emergency, press the SOS button and the device will send out the call and message for help to the guardian (long press power button 4 seconds)

Walk: Counts the steps the user has walked

Reward: The reward is sent out through the APP on the guardian's cell phone and the reward progress can be viewed

Voice: With the highly sensitive microphone, the sound around the device can be heard in real time in case the emergency happens to the user

Remote Power-off: The device can be turned off through the APP on the guardian's cell phone

Remote Restart: The device can be restarted through the APP on the guardian's cell phone

Intelligent Power Saving: The device turns off/on the GPS and data upload in the time range specified through the APP on the guardian's cell phone.

Map: Baidu map and Google map.

SMS comands :

000 # number # number # number # (binding three phone numbers)
111 (SMS recording 10 minutes pause)
222 (voice recording 5 minutes pause)
333 (voice-activated dial-back telephone)
444 (delete all contents of memory)
555 (turn off all features)
666 (vibration alarm SMS)
777 (vibration alarm telephone)
888 (play the memory recording --- such as the next play then pause after the broadcast --- if the switch key short press pause)
999 ( SMS Coordinate Positioning )
789 ( Upload 10seconds voice recorder to 365gps ftp server )
123#1/0 ( Open/Close auto upload location data )

Attention:

1.Note: This is 2G GPS Tracker , only support 2G sim card. ( It's said Austrlia,Singapore,Mexico,Canada and USA will stop 2G service since 2017. )

2.The Topin Official Service platform: www.365gps.net

Android application: 365gps

iOS application: 365gps

3. QR code scanning access

The client for the Android and iOS phones can be downloaded after the QR code has been scanned.

Here are the SMS comands used on this device :

1 - Reset to default password: “pwrst”

2 - Restore factory settings: “1122”

3 - Inquire IMEI: “imei#”

4 - Modify IMEI: “imei#+no.ofimei" ( for example: IMEI#200000000000001 )

5 - LED light on/off: “led#on/led#off”

6 - Modify upload time interval:
“time#+No. ( for example: time#1, time interval 1minutes, from 1-60minutes )
"MD#+number" ( for example: MD#10 , time interval 10seconds, available set to 10-60 seconds)

7 - Modify IP: “DOMAIN# domain name or IP#Port ID#” ( will return to default 365gps server if the new server unavailable )

8 - APN setting: “APN#parameter#account#password#” ( if there is no account password, don't need to fill in. )
(For example, China Mobile APN is: CMNET, text message: APN#CMNET#)

9 - Restart the device: “SYSRST#”

10 - Vibration Alarm: 6666#on# / 6666#off# ( open / close vibration alarm )

11 - Remote Pickup Call: monitor#Number# ( set the monitor number) , monitor## ( cancel monitor )

12- 999 : SMS Coordinate Positioning

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products.

When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q: Are your APP and Platform free to use?
A: Yes, both of them are free to use for lifetime.

Q: As you are the direct manufacturer, can I order one or two samples from you?
A: Yes, we also support sample orders.

Q: Do you offer OEM service, like make us a new APP with our logo?
A: Yes, we support OEM service, including making your APP, printing your logo on device and customizing boxes, manual with your language, etc.

Q: How long will the delivery take after payment done?
A: Delivery time depends on the shipping way you choose. We offer cheap but slow way with Singapore Registered Post ( 15-30days ) and fast express ways like DHL,TNT,FedEx,UPS, etc.
( 3-7 days delivery )
