HFH Street Lamp Pole Automatic Welding Production Line

Supplier: Jiangsu Tewei Machine Tool Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jing Zhou
Price: $28500.00 / 1 - 2 sets
$28000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Type of machine:	Welding machine
color:	customer request	Pipe material:	Carbon steel
Applicable industries:	manufacturing plant	Showroom location:	not any
Origin:	Jiangsu, China	type:	Tube Welder
port:	Shanghai	Package preview:
Weight (kg):	4000	Core components:	engine
Supply capacity:	4 sets per year	After-sales service provided:	Engineers available to repair machinery overseas
Warranty:	1 year	Marketing Type:	normal product
Core component warranty:	1 year	Main selling points:	easy to operate
Video outbound inspection:	if	Packaging Details:	Wrapped in plastic film and packed into containers
Mechanical test report:	if	brand:	twee
Health status:	new, new

Product Description

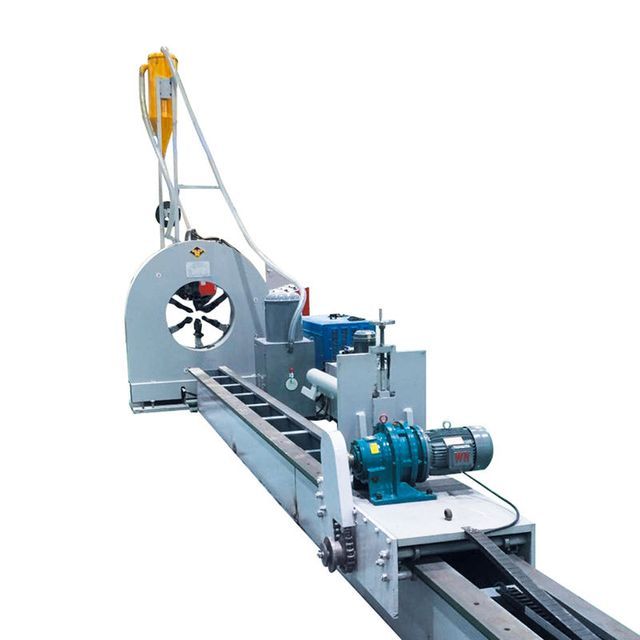

The machine is composed of main machine head, traction body and feeding frame. The traction body is moved by the collets in the small vehicle, gripping the collets of the steel rod. When the trolley moves, it drives the steel rod to move regularly from the small collet to the large collet. The feeding trolley clamps the large side of the steel rod to force automatic sewing from the machine head to the steering wheel. For a while, the welder started welding. This machine adopts multi-wire submerged arc welding, and the solder is automatically recovered. Welds are symmetrical and tight. Strong filterability, one-time molding, high welding efficiency. The welding speed reaches 2-3 meters per minute, which is about 3 times that of gas welding, and the welding cost is lower than that of gas welding. With fast soldering,
At present, China's light pole industry has high efficiency and the lowest price.

Specification

serial number	Model			value			unit
1	pole length			≤6000			mm
2	seam thickness			8 (diameter: 200-400MM)			mm
						6 (diameter: 100-400MM)			mm
						4 (diameter: 60-400MM)			mm
3	Host head size (lengthwidthheight)			18007002050			mm
4	Table size (lengthwidthheight)			8000400480			mm
5	seam diameter			Φ400			mm
6	Minimum seam diameter			Φ60			mm
7	Welding current			630			A
8	Travel gear motor	Model	YCT160-4B			3 kW
9	Oil pump motor	Model	Y2100l2-4			3 kW
10	recycling motor	Model	Y90l-2			2.2 kW
11	gear pump	Model	CBN-E306			25ML/barrel
12	Maximum pressure system			20			Institute of Public Administration
13	System working pressure			≤5			Institute of Public Administration
14	Machine size			L	17000	mm
						watt	1680	mm
						h	1650	mm
15	weight			4000			Kilogram
