ZLAN6844 8 channels WIFI + LAN + Modbus TCP/RTU i/o module Remote I/ O Controller DI/DO/AI data collector

Product details
Model Number:ZLAN6844;Place of Origin:Shanghai China (Mainland);
Basic Protocol:Modbus TCP/RTU, LAN, WIFI;Product name:Remote Wifi IO Controller;
Payment Terms:L/C,T/T,Western Union;Port:Shanghai;
Warranty:3 Years;Brand Name:ZLAN;
Packaging Detail:32.7*16*6 cm;Size:12.2cm*7.2cm*3.4cm;
Channels:8;Function:Remote IO Control;
Supply Ability:3000 Set/Sets per Week remote i/ o controller;Power Supply:0~5V,0~10V;

ZLAN6844 8 channels WIFI + LAN + Modbus TCP/RTU  i/o module Remote I/ O Controller DI/DO/AI  data collector



Product Description

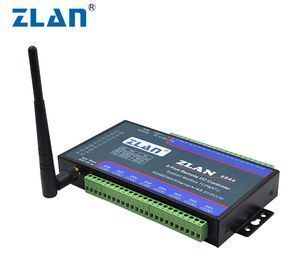

ZLAN6842/ZLAN6802/ZLAN6844 are 8 channels remote IO controller launched by Shanghai ZLAN after ZLAN6042. The controlled channels from 4 channels of 6042 extending to 8 channels, including 8 channels DI/DO/AI input. The DI support dry contact and wet contact with opto-isolator; DO is relay output with 5A 250VAC or 5A 30VDC control ability; the before 4 channels of AI input support 0~5V voltage quantity input, the after 4 channels support 4~20mA current input, the accuracy is 10 bits. ZLAN6842/ZLAN6802/ZLAN6844 respectively support 3 communication methods of Ethernet, RS485, Wifi.

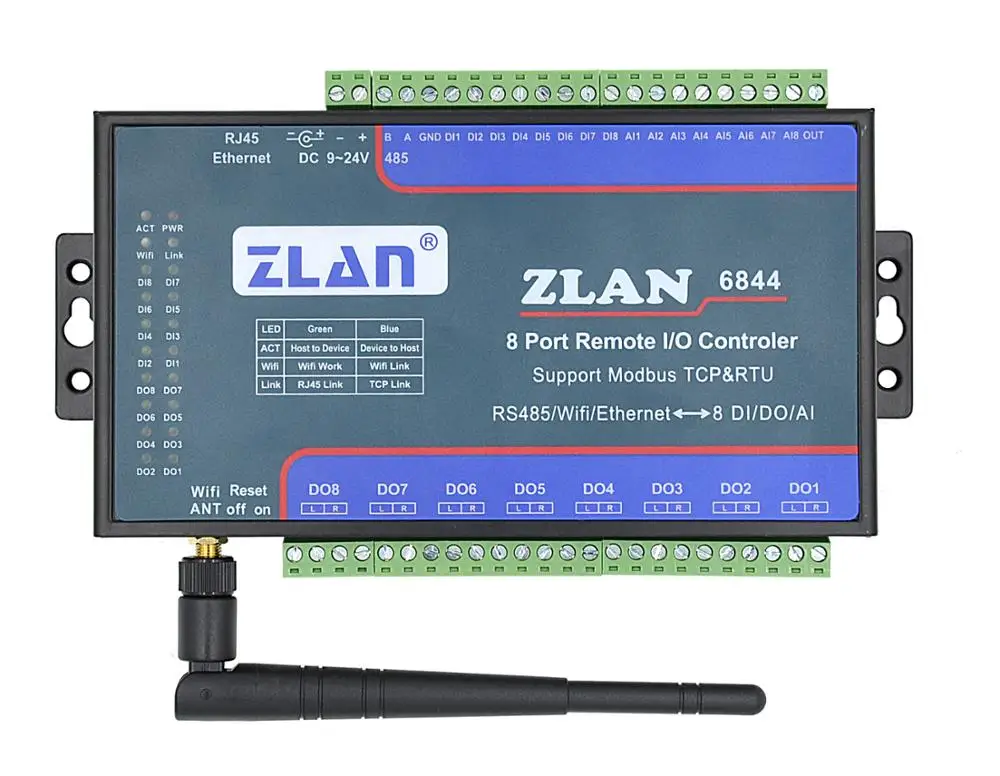

ZLAN6844:Compared with 6842, 6844 adds WiFi interface, it can save the wiring trouble. Meanwhile it has Ethernet interface. WiFi can be neither as AP nor as SAT style to connect router.





Feature

1)       8 channels digital quantity input:

Support passive switch value (dry contact) and active level (wet contact). The active level range as below:

VCC Voltage

Low Level Range

High Level Range

24V

0~17V

17~24V

9V

0~3V

3~9V



2)       8 channels digital quantity output:

The output type are relay output (5A@AC250V/DC30V).



3)       8 channels analog quantity input:

In default the first 4 channels are 0~5V voltage input, the after 4 channels are 4~20mA. If need customized, can modify any channels to the below 4 types:

(1)Current signal input: 4~20mA

(2)Voltage signal input: 0~5V

(3)Voltage signal input: 0~10V

(4)Resistance impedance input: 0~10k or resistor-type temperature humidity sensor, etc.



4)       8 channels switch value input state and 8 channels switch value output state both have independent indicator, can immediately know switch input/output state through indicator.



5)       Provide demo software Remote IO controlled by RS485 or TCP/IP, can demonstrate IO control and AI data acquisition for devices.



6)       Can provide complete RS485 control instructions and Modbus TCP commands, convenient for integrated development of engineer.



7)       ZLAN6842/ZLAN6844 are freely equipped Windows virtual port & device management tool ZLVircom, support ZLVircom, can one-key search and modify parameters.



Technical Paramet



Figure

Size:

L x W x H =9.2cm×19.7cm×2.5cm

Serial Port Parameter (ZLAN6802)

RS485 Interface, 1200~115200 (default 9600bps), 8 bits data bit, None parity, 1 stop bit

Software

Upper protocol:

MODBUS TCP/ MODBUS RTU

Low-level Communication:

Ethernet, RS485, Wifi

Relay Transmition Speed (Response Time)

ZLAN6842/ ZLAN6802:<30ms

AI Input Type

Current signal input: 4~20mA

Voltage signal input: 0~5V, 0~10V

Resistance impedance input: 0~10k or resistor-type temperature humidity sensor, etc.

Power Consumption (Relay in Non pull-in State)

ZLAN6802: <12mA@24V

ZLAN6842: <92mA @24V

ZLAN6844/6844N  <220mA @24V

Environment

Running temperature:

-40~85℃

Storage temp:

-45~165℃

Humidity:

5~95%RH





Application
