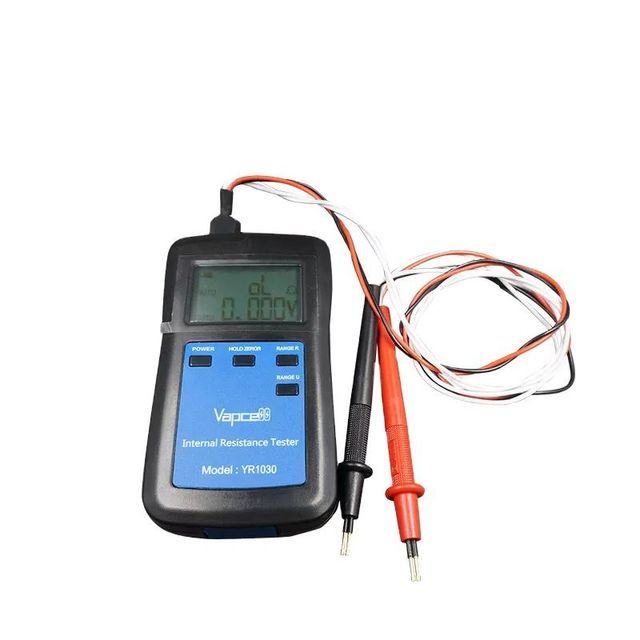

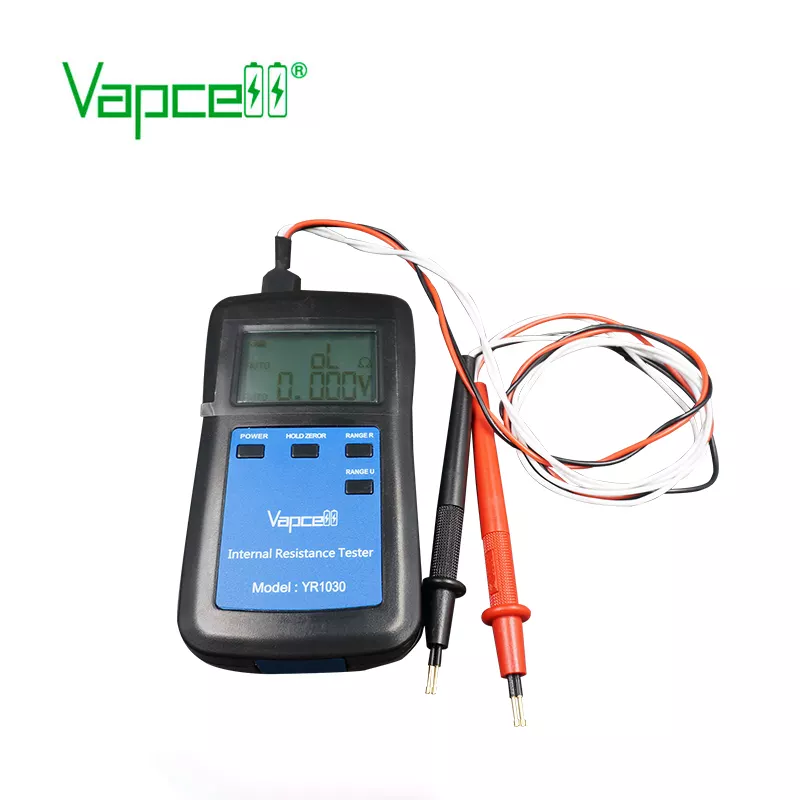

Vapcell YR1030 internal resistance tester is used to test 18650/20700/18350/21700/26650/20650/14500 battery lithium-ion battery

Supplier: Shenzhen Vapcell Technology Co., Ltd.
Region: Guizhou, China
Contact: Ms Daisy Chen
Price: $26.50 / 5 - 99 pieces
$25.50 / 100 - 999 pieces
$24.50 / >=1000 pieces
Min. Order: 5 pieces

Click here to contact

Product details

model:	1030 yuan	usage:	check battery
brand:	Vapsel	type:	tester
custom made:	No	related industry:	Lithium Ion Battery
accuracy:	0.01mΩ, 0.1mΩ, 1mΩ, 10mΩ, 100mΩ	Measuring range:	0.01mΩ-200Ω
product name:	Internal Resistance Tester	Operating temperature:	10-40℃
brand:	Vapsel	Measurable voltage range:	0-45V
Certification:	CE	Supply capacity:	9999999 pieces per week
payment terms:	Western Union, T/T, Paypal	color:	black and blue
Package preview:		Maximum current:	500mA
Origin:	Guangdong, China	port:	Shenzhen

Product Details:

1. Vapcell YR1030 internal resistance tester is a great tester. Portable, simple, efficient, and accurate for testing many types of batteries.

2. It can test lead acid, lithium ion, lithium battery, Lifepo4, alkaline battery, dry battery, nickel metal hydride, nickel cadmium, button battery, etc.

Specification:

Model	Battery internal resistance tester YR1030
Voltage test range	0-1.999V, 2-19.99V, 20-45V
Voltage resolution	1 mV, 10 mV, 100 mV
Internal resistance test range	0-19.9mΩ, 20-199.99mΩ, 2000-20000mΩ, 200-19999mΩ 2Ω-19.99mΩ, 20Ω-200Ω
accuracy	0.01mΩ, 0.1mΩ, 10mΩ, 100mΩ
Applicable battery	Lead acid, lithium ion, polymer lithium, IiFePO4, alkaline. Dry batteries, NiMH batteries, NiCd batteries, button batteries, etc.
structure	LCD display test results Simple operation at the push of a button
*Dimensions (LWH)*	1307230mm
weight	200 g
Notice	This machine cannot test batteries with a voltage exceeding 45V. Please do not test batteries over 45V. Otherwise it will damage the machine. Make sure the positive and negative poles of the battery are connected correctly.

*1 channel, support 1 smart battery

*Support charging, discharging, testing, capacity correction, charging/discharging 50% capacity

*LCD display battery information

*The charging stages of pre-charging, fast charging and constant voltage charging and the range of charging valuesConstant current and constant voltage less than 1%

*Constant current discharge

*With a USB interface to connect with the computer, the host can monitor the slave

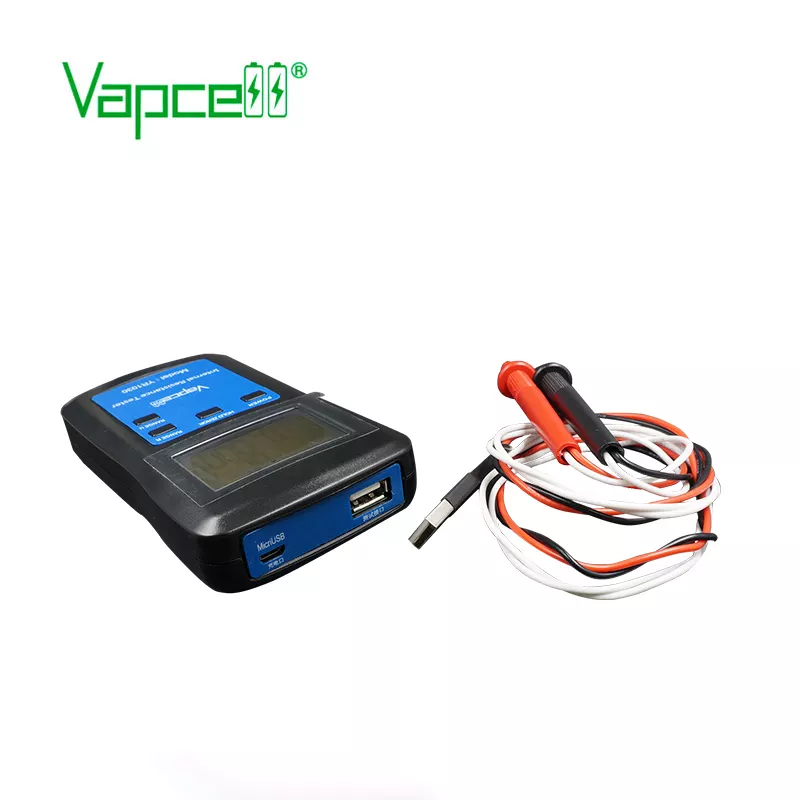

real picture:
