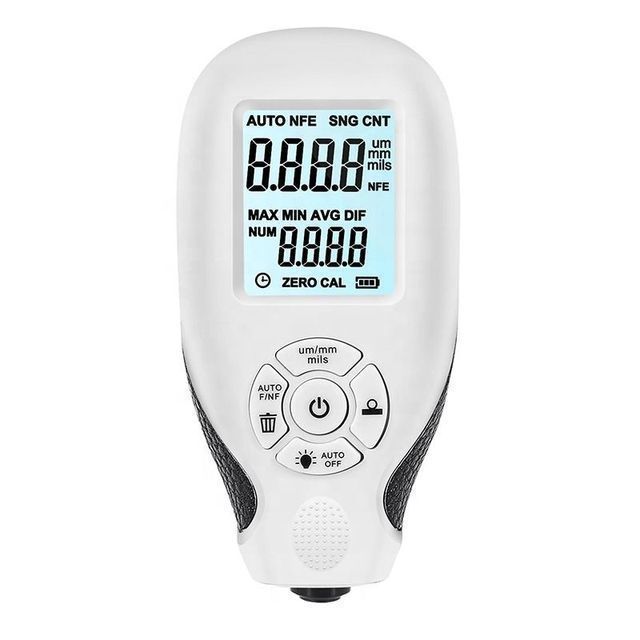

Automotive paint film thickness gauge, 0-2000um digital display coating thickness gauge

       Specification

* Product size: 110MM*52MM*25MM
* Material: ABS
* Resolution: 0.01mm/1mil
* Measuring range: 0-2000UM
* Measurement accuracy: ±(3%+1UM)
* Power supply: 2 x 1.5V AAA batteries (not included)
* Working temperature: -10 degrees Celsius to 50 degrees Celsius

        describe

1. The thickness gauge is used to measure the thickness of metal plating and coated plates, such as paint/enamel/chrome, etc.
Steel, painted and anodized coatings on aluminium/copper.

2. Measuring range 0-2000UM.

3. The gauge adopts a precision integrated probe, using the principle of electromagnetic induction and eddy current effect,
The properties of the substrate are automatically detected.

4. The thickness gauge is specially designed for non-destructive measurement of the thickness of coatings and paints.

5. Material surface treatment is essential, widely used in manufacturing, metal processing, chemical industry
In the fields of industry and commodity inspection, it can also work stably in laboratories, workshops, and outdoors.
