VAT1100 100V 100A LCD Digital Wireless DC Voltage Current VA Meter Car Battery Monitor Fuel Gauge Coulomb Meter Watt Meter

 Specification:

Specification
Model: VAT 1100
Voltage measurement range: 0~100V
Voltage Resolution: 0.01V
Current measurement range: 0~100A
Current resolution: 0.1A
Relay: optional
Temperature measurement range: -20~120°
Capacity display range: 0%~100%
Power measurement range: 0~200kW
Power Resolution: 0.001W
Ampere-hour measurement range: 0~2000kAH
Capacity Resolution: 0.001AH
Electricity measurement range: 0~4000kWH
Watt-hour accuracy: 0.001WH
Time measurement range: 0 to 99 days
Time resolution: 1 second
Communication channel range: A~Z (26 channels)
Communication address range: 01~99
Voltage accuracy: ±2%+3 words
Current Accuracy: ±5% + 10 words
Sampling rate: 5 times/second
Communication distance: up to 10 meters
Measurement module power consumption: 0.4W
Display module power consumption: 0.5W
NCP: 0~-30A (negative overcurrent protection setting)
OCP: 0～30A (forward overcurrent protection setting)
OVP: 0～100V (overvoltage protection setting)
LVP: 0～100V (under-voltage protection setting)
Protection delay time: 0～10s

VAT1100 100V 100A LCD Digital Wireless DC Voltage Current VA Meter Car Battery Monitor Fuel Gauge Coulomb Meter Watt Meter

feature:
1. The display module shell adopts sandblasting oxidation process, which is beautiful and elegant. The keys are touch keys with high sensitivity and long service life.
2. The measurement module needs to be connected to the circuit under test in series, and the measurement data is sent to the display module for display. The data between them can be transmitted through a USB cable (1 meter long); it can also be transmitted wirelessly through the built-in wireless module. The wireless transmission distance can reach 10 meters.
3. The measurement module can detect current in two directions. There is no need to change the wiring method when the battery is charged and discharged, and the wiring is convenient mode. ).
4. The instrument adds self-calibration function to solve the zero drift problem of old products. After working for a long time, the current and capacity can still maintain good accuracy.
5. The monitor has three display interfaces. The default display is in large font mode, displaying main parameters such as voltage, current, capacity, temperature, etc. Press any key to switch to full function display mode. In the full-featured interface, you can set the required parameters, and you can also set the mode with white characters on a black background, so you can see the display even in the sun.
6. After the measurement module is connected to the relay, it has the functions of overvoltage protection, overcurrent protection and undervoltage protection in the circuit. VAT series models do not include relays other than VAT1030.
7. The ampere hour, watt hour, and time data can be cleared during the measurement process without affecting the next measurement.
8. Different communication addresses can be set in wireless mode. Multiple machines can work at the same time without interfering with each other.

illustrate:
1. The AT series multi-function voltage and ammeter can measure the voltage, current, power, watt-hour, temperature, real-time capacity and discharge time during the charging and discharging process of the DC circuit.

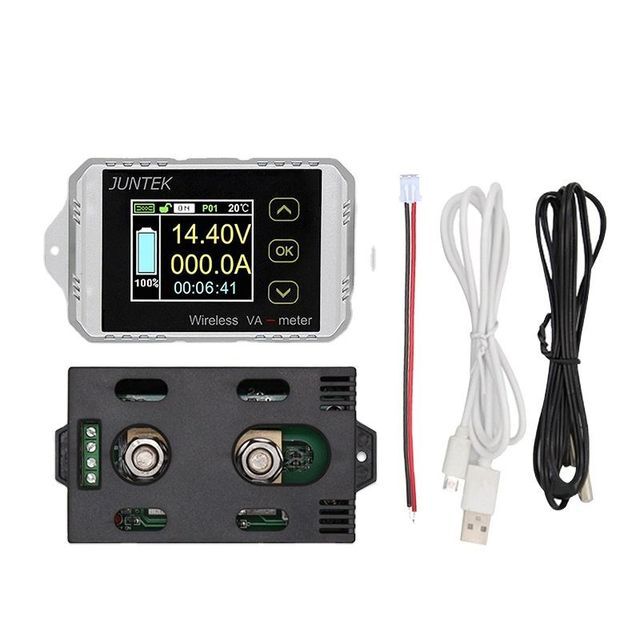

2. The instrument is divided into two parts: measurement module and display module.
3. The display module adopts a 1.8-inch high-definition color LCD screen, which is very suitable for monitoring the battery capacity of electric vehicles and monitoring the working status of the DC circuit.
