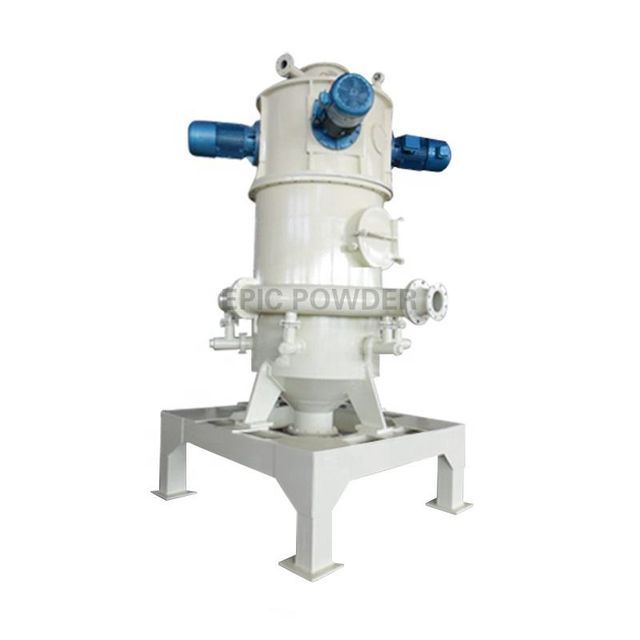

Superfine Powder Complete Production Line Fluidized Bed Jet Mill

Supplier: Qingdao Epic Powder Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Emily Chen
Price: $30000.00 / 1 - 3 sets
$29800.00 / 4 - 6 sets
$29600.00 / 7 - 9 sets
$29400.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Grinding temperature:	20 degrees Celsius	Process Engineering Services:	usable
Civil Engineering Services:	usable	Core components:	PLC, gearbox, motor, gear
After-sales service provided:	Engineers available to repair machinery overseas	Supply capacity:	30 sets of ultra-fine powder complete production line fluidized bed jet mill per quarter
payment terms:	L/C, D/P, T/T	Motor type:	AC motor
Mechanical test report:	if	Grinding Power:	high pressure compressed air flow
Certification:	EU CE certification	Applicable industries:	Manufacturing plants, food and beverage plants, restaurants, construction, energy and mining, others
Production capacity (tons/hour):	0.1-5 tons/hour	weight:	0.5 kg
brand:	epic powder	Product fineness:	d97: 2 microns - d97: 45 microns
Health status:	new	Showroom location:	not any
Automation and Control:	PLC	Marketing Type:	normal product
Packaging Details:	Steel pallets and wooden boxes.	port:	Qingdao Port, China
Video outbound inspection:	if	Warranty:	12 months after installation.
Local service locations:	not any	type:	Fluidized bed jet milling
Core component warranty:	1 year	Dimensions (LWH):	custom made
Origin:	Shandong Province, China

Ultrafine powder complete production line fluidized bed jet mill

work rules

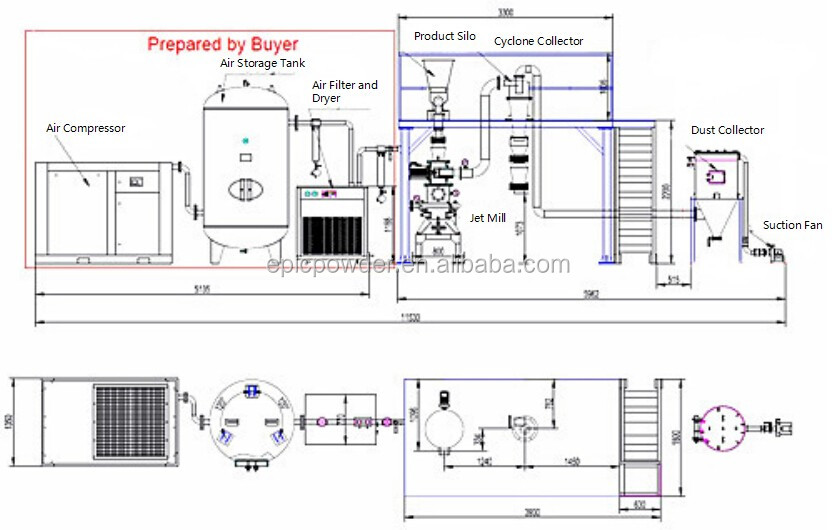

Jet mill is a crushing machine that uses high-speed compressed air to grind dry materials into ultra-fine powder.It is composed of screw feeder, milling nozzle, milling chamber, classifying chamber and so on.

The speed of the screw feeder is adjustable, and the raw materials are fed into the jet mill stably and continuously. Compressed air reaches very high speeds as it passes through specially designed nozzles. The materials are carried by the compressed air, crushed in the air flow, and grind each other through repeated impacts. The crushed material flies upwards with the updraft and enters the classifier room. The crushed material is subjected to two forces: the centrifugal force generated by the rapid rotation of the classifying wheel and the aerodynamic attraction force of the suction fan. If the ground material is finer than the classification range, the pneumatic attraction is stronger, and the material passes through the classification wheel and enters the cyclone separator and dust collector for collection. Instead, coarser material is returned to the grinding chamber for regrinding.

feature:

Simple, straightforward design with no moving parts

Designed for easy disassembly and cleaning, easy access and maintenance

Efficient and effective one-step grinding and classifying operation

Does not generate heat when grinding

No media pollution

No lubricating oil pollution

Wide range of available liners protect against contamination and abrasion

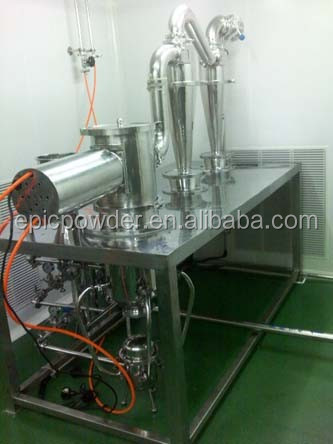

Models available for hygienic/pharmaceutical applications.

application:
- Abrasive products
- Viscous products
- Mineral fillers
- Ceramic packing
- food
- chemical product
- Agrochemicals

Technical data:

Jet mill with vertical classifier.

Model	MQL06	MQL10	MQL20	MQL40	MQL60	MQL80
Feed size (mm)	<3	<3	<3	<3	<3	<3
Product fineness (d97: μm)	8-150	8-150	8-150	10-150	10-150	10-150
Output (kg/h)	10-200	20-400	50-800	150-1500	300-2000	400-6000
Air consumption (m3/min)	6	10	20	40	60	80
Air pressure (Mpa)	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85
Installed Powder Quantity (Kw)	47-68	68-106	145-184	276-310	402-427	520-600

Jet mill with horizontal classifier.

Model	MQW03	MQW06	MQW10	MQW20	MQW40	MQW60	MQW120	MQW160
Feed size (mm)	<3	<3	<3	<3	<3	<3	<3	<3
Product fineness (d97: μm)	2-45	2-45	2-45	3-45	3-45	3-45	3-45	3-45
Output (kg/h)	2-30	30-200	50-500	100-1000	200-2500	500-3500	800-7500	1000-10000
Air consumption (m3/min)	3	6	10	20	40	60	120	160
Air pressure (Mpa)	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85	0.6-0.85
Installed Powder Quantity (Kw)	21.8	42.5	85	147	Chapter 282	Chapter 415	800	1100

notes:

The production capacity and product fineness data in this table are for reference only. Due to the different material characteristics, a type of jet mill will produce different production performance. Please contact me for custom technical advice or to experiment with your material.

1) What is our main product?

- We design and manufacture all kinds of milling machines, classifying machines, coating machines, mixing machines, etc.

2) What services do we provide?

- We provide consultation on project feasibility assessment, process flow definition, preliminary layout and plant planning, project budget, project timetable, etc.

- We provide sample processing tests at our test stations equipped with various machine products to help customers compare the performance of different types of machines or processes.

- We provide project engineering, automation engineering and civil engineering.

- We send engineers to the customer project site to provide on-site technical guidance and supervision during machine installation, commissioning and trial operation.

3) How long is our delivery time?

- 60 to 90 days after receiving the down payment.

4) What payment terms do we offer?

- 30% T/T as down payment;

- 70% T/T or irrevocable L/C at sight before shipment.

5) What type of shipment can we do?

- Applicable to sea freight complete machine, standard container or frame container.

- Spare parts, wooden cases and pallets for air shipment.

6) What services can we provide for machine installation and trial run?

- We send engineers to the customer project site to provide on-site technical guidance and supervision during machine installation, commissioning and trial operation.

7) What is our warranty policy?

- We provide a warranty of 12 months after installation or 18 months after delivery.

- We provide life-long service for the machine products after delivery, and follow up the machine status with the customer after the machine is successfully installed in the customer's factory.

Please contact our project consultant for details, thank you.

Note: Since the machine is customized, the price will vary according to the raw material, product fineness, production rate, etc.
