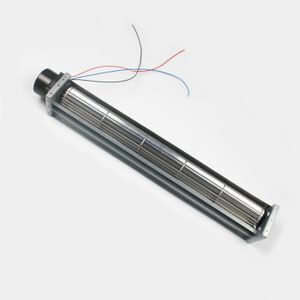

LWCA Cross flow fan wheel tangential fan 40mm , 40x120, 40x180 , 40x300 ,40X360 to oven eater floor heating convector

Click here to contact

Product details

Fan casing material:	galvanized steel;	Power:	1-20;
lead time:	15-25days;	Type:	Cross Flow Fan;
motor type:	AC motor , BLDC motor;	After-sales Service Provided:	Overseas third-party support available;
Certification:	CCC,CE,UL;	Packaging Detail:	Fan packed in cartons or individual box if required , cartons packed on pallets . pallet size :1.1m x1.1m x0.1m;
Item name:	Cross flow fan/impeller 30mm ,;	Supply Ability:	1000000 Piece/Pieces per Month;
Fan Diameter:	300mm;	Port:	NINGBO ,SHANGHAI;
Brand Name:	LONGWELL;	Place of Origin:	Zhejiang China (Mainland);
Air Volume:	20 - 100;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Bearing:	Ball Bearing /sleeve bearing;	Voltage:	110/120/220/230/12/24;
Warranty:	2 Years;	After-sales Service Provided:	Online support;
Mounting:	Other;	Blade Material:	aluminum;
fan length:	customization available up to 800mm;	Application:	Over , heater , air purifier , home appliances , floor heating ,;

Product Description

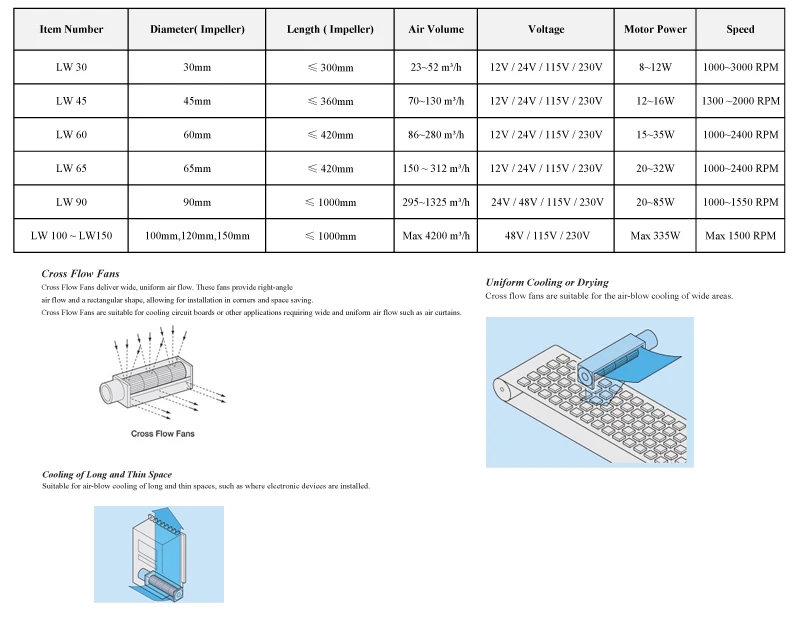

Cross flow fans are used for cooling circuit boards or other applications requiring wide and uniform air flow such as air curtains ;
These fans provide right-angle & left angle air flow and a rectangular shape ,allowing for installation in corners and space saving ;
With UL Certificating ;
Voltage can be designed as 12V / 24V / 48V / 115V /230V ;
Max Air volume : 4200 m³/h ;
Max Speed :2600 RPM ;
Max Power :335 W ;
Impeller Material : Aluminum Alloy or Plastic ;
Housing Material : Galvanized Sheet Steel ;
Motor Type : Shaded Pole Motor ;
Insulation Class : B/F/H
Bearing Type : Ball Bearing
Operating Temperature : - 25 ℃ ~ + 60 ℃
Storage Temperature : - 15℃ ~ + 40 ℃

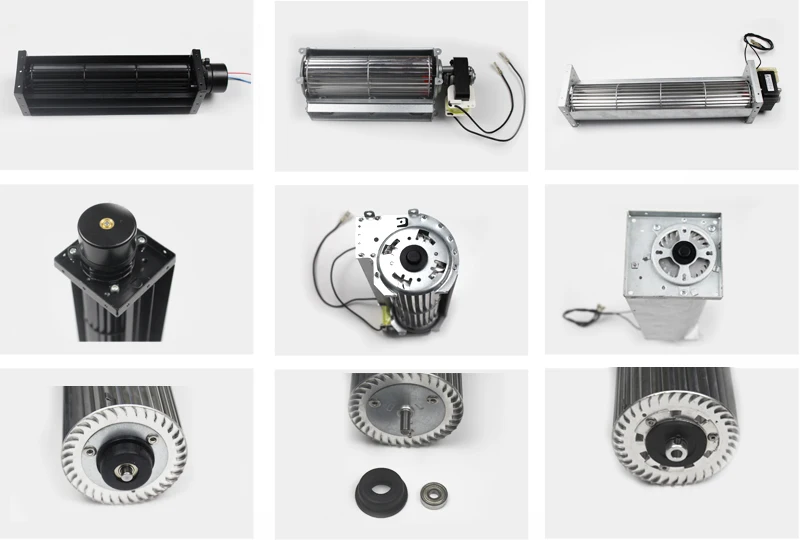

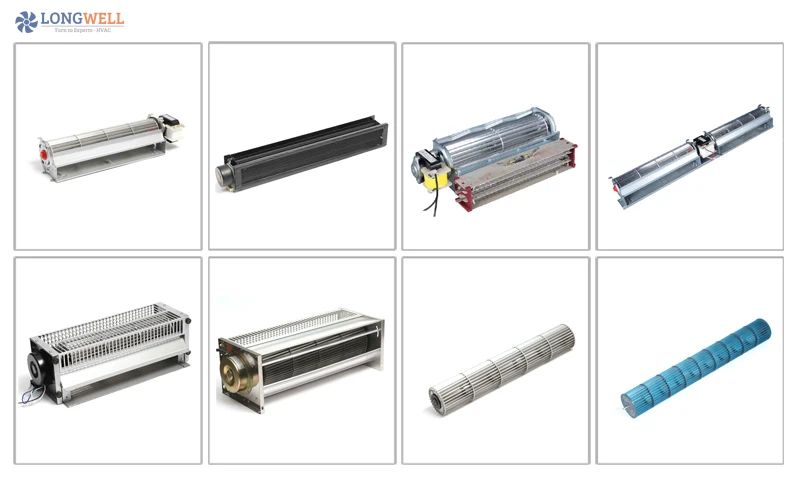

Product Picture Show

Product Application

Fireplace,Freezer,Warmer,Microwave,Refrigerator,etc......

Buying Guides

Packaging & Shipping

Shippment and Delivery :

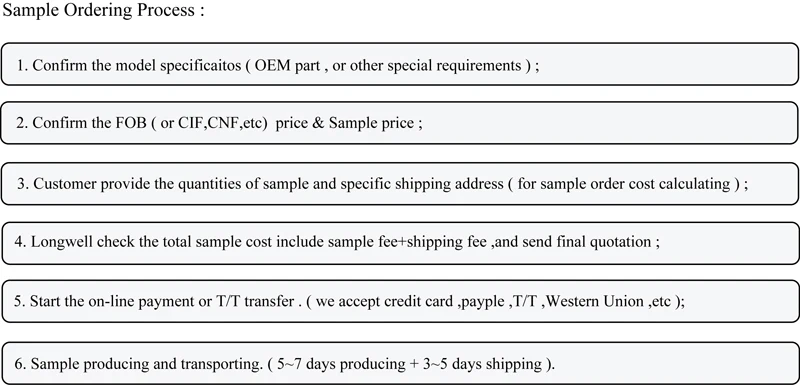

Sample :7~10 days ;
Bulk order : 18~23 days after receiving order information .

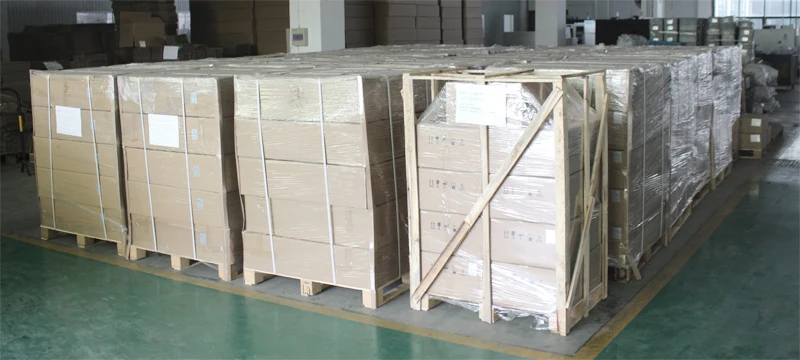

Package : Standard exporting package , carton with pallet . ( package can be customized )
Shippment : Air express ,sea shippment , EXW ,LCL ,etc all available .
