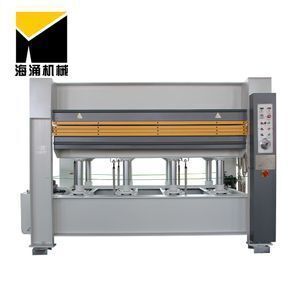

hydraulic woodworking veneer door hot press machine with certification
-
Supplier: Qingdao Haiyong Machinery Manufacturing Co., Ltd. -
Region: Shandong, China -
Contact: Mr lawrence li -
Price: $9000.00 /set -
Min. Order: 1 set
| Port: | QINGDAO; | Dimension(L*W*H): | 3400x1500x1800mm; |
| After-sales Service Provided: | Online support; | Number of cylinders: | 8; |
| Condition: | New; | Payment Terms: | L/C,T/T; |
| Supply Ability: | 10 Set/Sets per Week; | Weight: | 6000KG; |
| Warranty: | 1 Year; | Product name: | hydraulic woodworking hot press machine with certification; |
| Certification: | ISO9001; | Voltage: | 380V; |
| Total pressure: | 120 ton; | Dimension of hot platen: | 2500x1250x42mm; |
| Brand Name: | HAIYONG; | Pressure: | 100T-500T; |
| Cylinder Stroke: | 500mm; | Number of layers: | 4; |
| Power(W): | 50kw; | Key words: | hot press machine; |
| Packaging Detail: | plastic and wood case; | Number of platens: | 5; |
| After-sales Service Provided: | Overseas service center available; | Place of Origin: | Shandong China (Mainland); |

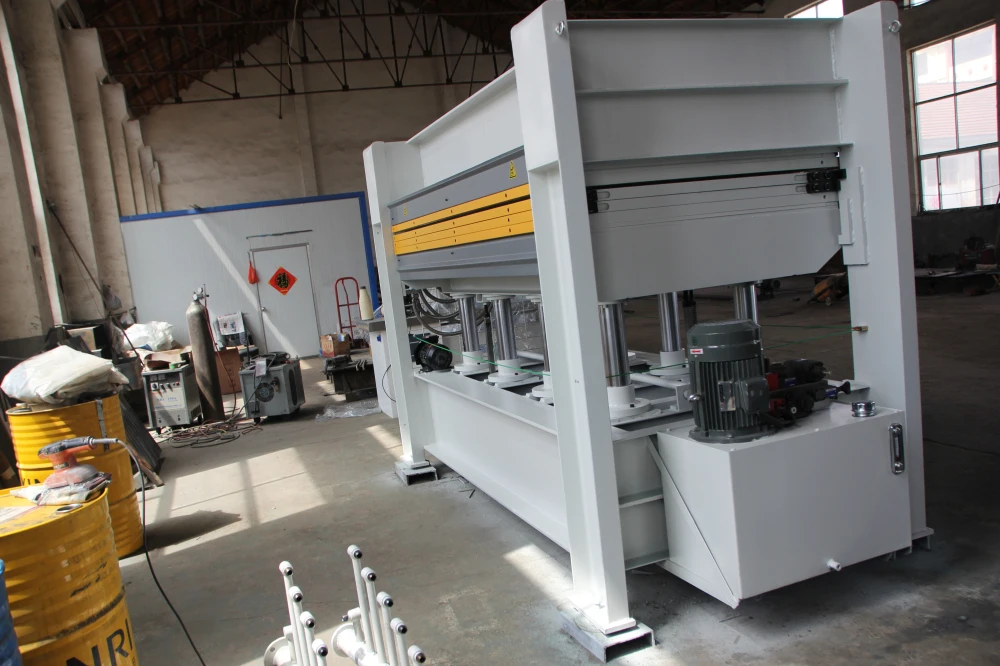

hydraulic woodworking hot press machine with certification
 | ||
 | ||
 | ||
 | ||
| ||
Click to get your Special Discount
Model | BY214x8/16(4)H we also have other models, lay from 1 to 5. |
Total pressure | 120ton |
Dimension of hot platen | 2500x1250x42mm |
Number of layers | 4 |
Number of platens | 5 |
Cylinder Stroke | 500mm |
Diameter of cylinder | ∅130mm |
Number of cylinders | 8 |
Low pressure pump flux | 63L/min |
High pressure pump flux | 2.5L/min |
Heating medium | Steam or thermal oil |
Frame structure | welded |
Pressure pump power | 7.5kw |
Oil cycle pump power | 3.7kw |
Max temperature | 180℃ |
Heating power | 90kw |
Size | 4600x1600x2000mm |
Application
We provide all information for clients to install, test the machine. Some big machine, like the veneer slicer, we will let our engineer go to clients’ factory to install, test the machine and train their workers. The warranty time of the machine is one year. During the warranty time, we provide free spare part for clients to make the machine working. The delivery time will be within 48hours. Even your machine out of warranty time, you will get our help about the machine.
-
