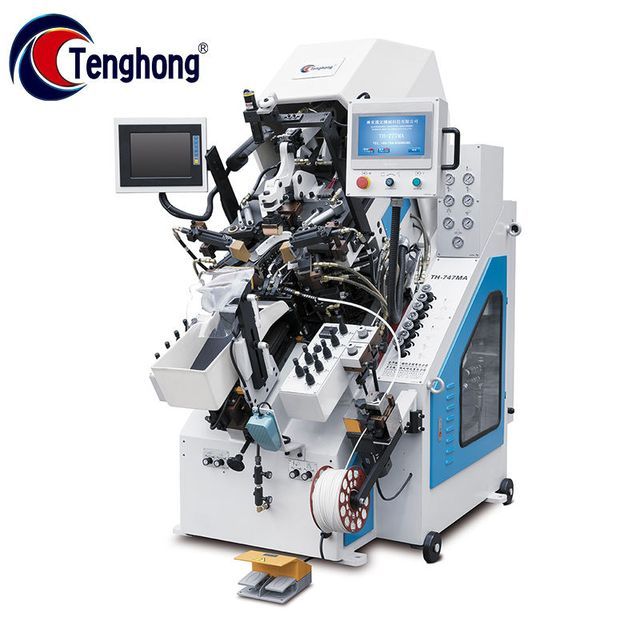

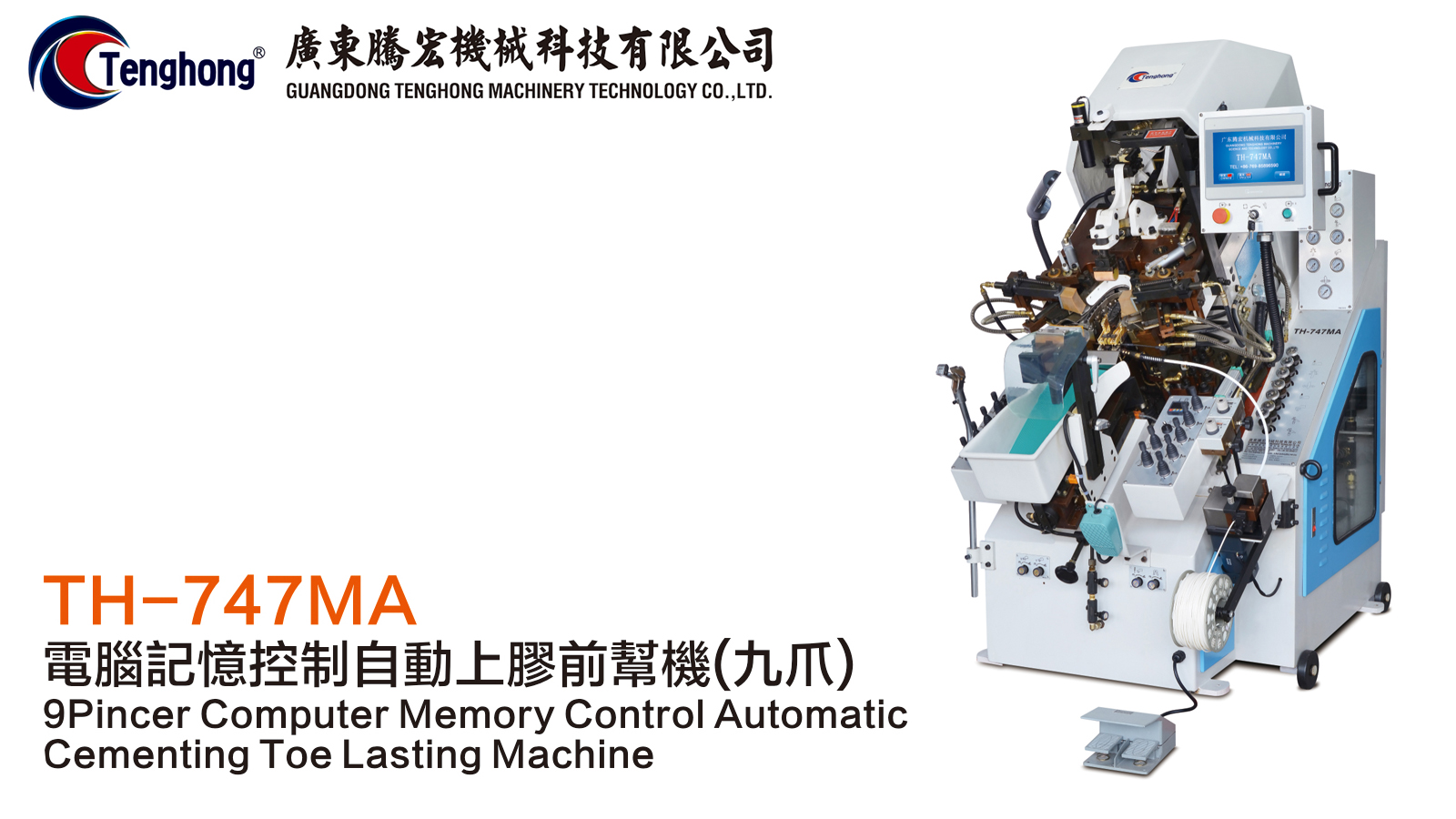

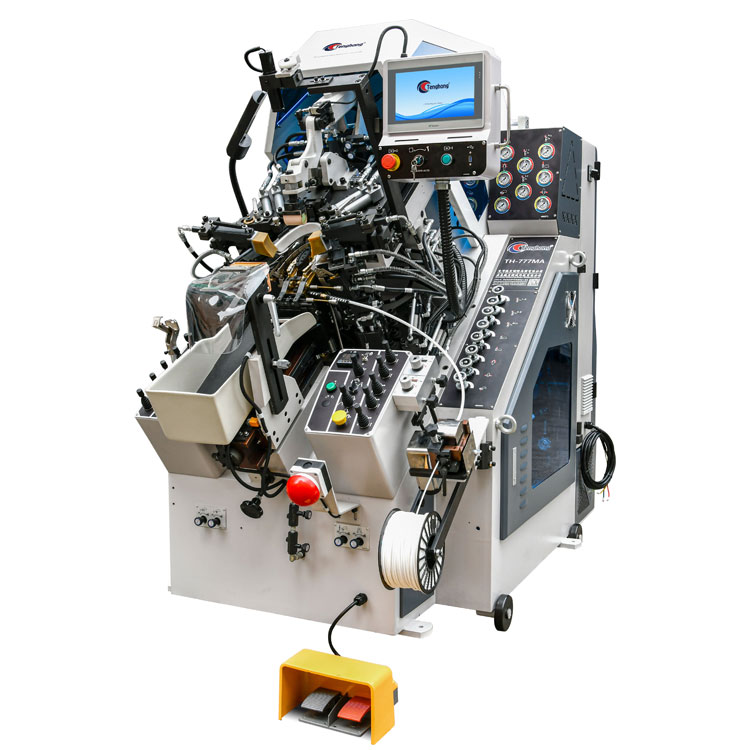

9 pliers computer memory control automatic servo gluing back upper mechanism shoe machinery

Full hydraulic operating system. The PLC system is equipped with a touch screen to operate the machine with graphic symbols. Parameters (time, travel) are set by digital keyboard input, with key switch protection to prevent unauthorized people from reading or changing. Up to 100 different shoe models are programmable and memorable. Error diagnostics can be read on the monitor. 9 micro-adjustable and quick-change pliers. The first pliers can be adjusted left and right by 15 degrees, which is suitable for the pliers arrangement of special toe shape shoes. The fifth clamp automatically inverts for added inner lasting perfection. Each pliers can be set to pull automatically or manually to prevent uppers of different materials from being pulled only on one side. After the clamping movement on the pliers,
The pliers release and clamping movement can be operated manually. During the second upward movement of the last support, the clamping pressure of the pliers can be set through the decompression function. The upward travel of the last support can be adjusted by a knob on the outside of the machine and is equipped with a position indicator. The last support features two stepped upward movements that, in combination with the heel support movement, prevent the last from slipping. The position of the last support can be quickly adjusted forward or backward up to a maximum of 16mm. The toe push mechanism is designed with two-stage pressure adjustable. During the initial pressure movement, there are two ways (pressure control or position control) can be set
for best performance. The forward movement of the wipers can be adjusted because of the infinitely variable control. Standard equipment: auxiliary wiper mechanism, auxiliary side push mechanism, toe projection mechanism.
