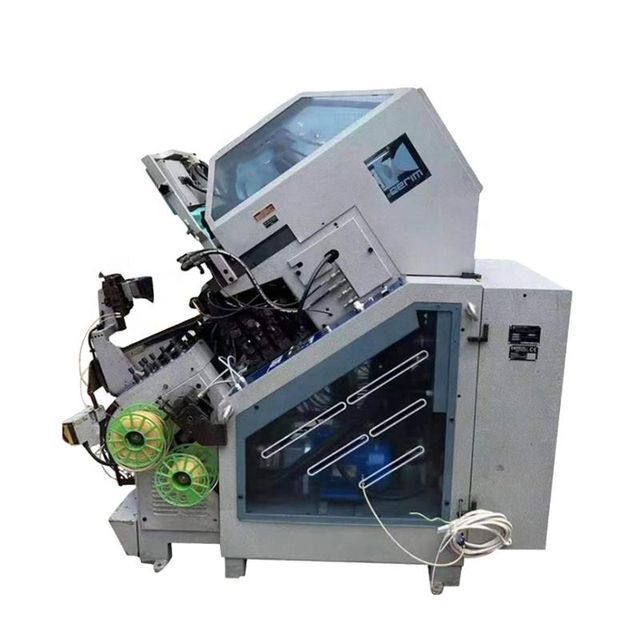

Factory price hot melt glue shoe last machine automatic shoe last sticking machine

Supplier: Zhengzhou Jawo Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Alina Lee
Price: $5999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	Automatic tail hanging machine	Mechanical test report:	if
port:	Qingdao Port or according to customer requirements	Warranty:	2 years
Showroom location:	Automatic tail hanging machine	Supply capacity:	200 sets per month
color:	custom made	place of origin; place of origin:	Henan, China
application:	Automatic tail hanging machine	Minimum order quantity:	1 set
strength:	3700	Marketing Type:	Hot Products 2022
Auto grade:	automatic	pressure:	50 kg/cm²
Core components:	Motor, automatic last loading machine	feature:	Hydraulic toehead machine
Production capacity:	180 pairs/8 hours	weight:	300
payment terms:	L/C,Western Union,T/T,MoneyGram,Automatic Lasting Machine	Voltage:	110-380V
Packaging Details:	Fumigation-free wooden box automatic last loading machine	application:	Upper production
Video external inspection:	if	Applicable industries:	Hotels, manufacturing plants, machinery repair shops, retail, shoe factories, automatic shoe last installation machines
Dimensions (LWH):	100017001900	Function:	Automatic shoe making machine
electro-thermal:	1.5kW	Core Components Warranty:	2 years
Package dimensions:	183010002230mm	Safety:	change
pliers:	9 claws	brand:	Java
Packaging Preview:		Health status:	new

product description

Factory price hot melt glue shoe last machine automatic shoe last sticking machine

Shoe last machine: 1. The cross head projection light ensures the accurate positioning of the shoe last. 2. The pressure head mechanism adopts adjustable two-stage pressure to ensure stable pressure and achieve the best pressing effect. 3. The all-round straps and wipers with a special tracking system ensure that all parts of the upper fit snugly against the shoe last behind the last without any sharp corners and a smooth appearance.

feature:

4.9 independent clips can be adjusted independently.

5. The splint can also be adjusted synchronously according to the shoe size

No. 6.2 and No.5 pliers have independent adjustment devices, which can quickly adapt to different types of lasts,
Accurately ensure the minimum spacing between each pliers and make sure it doesn't have any angles.

7. The pressure, position and speed of each device can be directly adjusted from the outside, which is convenient and quick.

8. Unique interior and exterior design
The support device can be quickly adjusted to its relative position to the mid-jaw according to the shoe size.

Product parameters

shoe last machine
Model	JW-QB737MA
clamp	9
pump motor	1.5KW
maximum. energy consumption	3.7KW
oil pressure	50 kg/cm²
productivity	180 pairs/hour
oil filled	100 liters
northwest	1100KGS
aspect	1000(L), 1700(W), 1900(H) mm
Package dimensions	1830(L), 1000(W), 2230(H) mm
