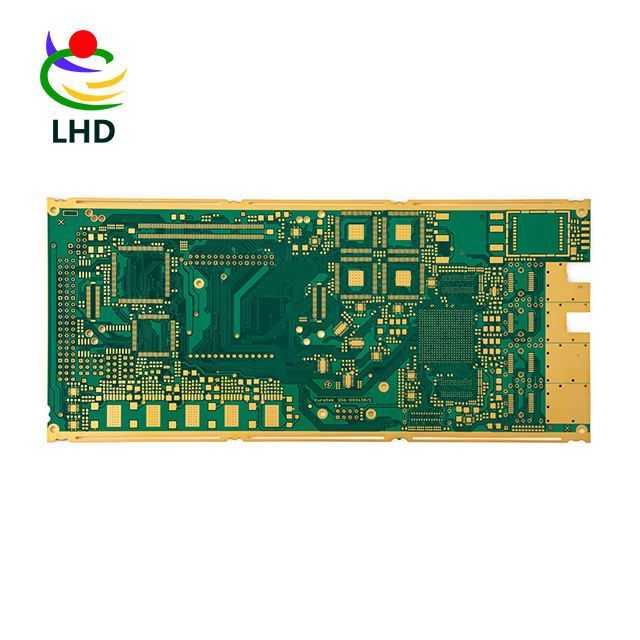

LHD Technology Professional Pcb Pcb High Frequency PCB Manufacturer

Supplier: Huizhou Linghangda Technology Co., Ltd.
Region: GuangDong, China
Contact: Mr Alan Liu
Price: $1.00 / 1 - 99 pieces
$0.60 / 100 - 999 pieces
$0.30 / 1000 - 9999 pieces
$0.10 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Minute line width:	0.075mm/0.075mm (3mil/3mil)	quality assurance:	AOI IQC PQC QA
port:	Shenzhen Guangzhou Hong Kong	product name:	A printed circuit board
Maximum board size:	457 * 356 (18 inches * 14 inches)	Spray flux:	Add on
Origin:	Guangdong, China	Surface treatment:	HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin
Maximum plate width:	400mm	Wave soldering:	2
Substrate:	FR-4/CEM-1/CEM-3/Polyimide/PTFE/Rogers	Minute Hole Size:	HDI is 0.1 mm (4 million) / 0.15 mm (6 million)
Board size:	custom	Packaging Details:	PCBA Gibson vacuum packaging or anti-static packaging Outer packaging: export carton or according to customer requirements.
capacity:	70 million impressions per month	Plate thickness:	0.2-6mm
Package preview:		Minute line spacing:	0.003 inches
speed:	0.15 seconds/chip, 0.7 seconds/QFR	brand:	left rudder technology
type:	High frequency PCB	Copper thickness:	0.4-2 mil (10-50 microns)
Supply capacity:	70000 square meters per month	model:	Custom PCB and PCB Assembly
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Application fields:	Automotive, medical, industrial, IoT, smart home, security equipment,
Biggest temper:	399 degrees Celsius

OEM Electronic Pcba Manufacturing Smt Professional Custom Pcba Design Circuit Board Prototype Assembly Service Supplier

the banner

Product Description

PCB manufacturing specification

project	parameter
project	double sided/multilayer
Maximum panel size	32'20'(800mm508mm)
Minimum track/clearance IL	0.075mm/0.075mm (3mil/3mil)
The smallest annular ring on the inner side	3 million (0.075 mm)
Maximum Copper Weight OL	6 oz (210 microns)
Maximum copper weight 1L	12 oz (420 microns)
Finished plate thickness	0.20-6mm
layers	2-32 liters
layer-to-layer registration	±3mil(±76um)
Minimum Finished Aperture	HDI 0.15mm (6mil), 0.1mm (4mil)
Hole position accuracy	±2mil(±50um)
Slot tolerance	±3mil(±75um)
PTH Diameter Tolerance	±2mil(±50um)
NPTH diameter tolerance	±1mil(25±um)
Maximum aspect ratio PTH	10:1
copper on hole wall	0.4-2 mil (10-50 microns)
Graphic Pattern Registration Tolerance	±3 mil (0.075 microns)
Minimum trace/clearance 1L(mil) - depends on copper weight	3 mil/3 mil (75 micron/75 micron)
Track etch tolerance	±1mil(±25um)
