Huawei AirEngine 5760-21 Wi-Fi 6 (802.11ax) indoor Access Point AP supports six spatial streams

Supplier: Combasst Industry Development (Shanghai) Co., Limited
Region: Shanghai, China
Contact: Ms Daisy Wang
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	Wireless LAN	Model:	Aero engine 5761-21
Maximum number of users:	≤ 1024	Interface Type:	2 GE ports
Radio protocol:	802.11a/b/g/n/ac/ac Wave 2/ax	brand:	Huawei
use:	indoor	Maximum rate:	5.375 Gbit/s
payment terms:	L/C, Western Union, T/T, PayPal; RMB account; WeChat; Alipay	Supply capacity:	200 pieces per week
Packaging Details:	original carton	Origin:	Guangdong, China
port:	Shanghai	Package preview:
product name:	Indoor Wireless Access Point (AP)	Antenna type:	Built-in smart antenna
model:	Huawei AirEngine 5760-21

Product Description

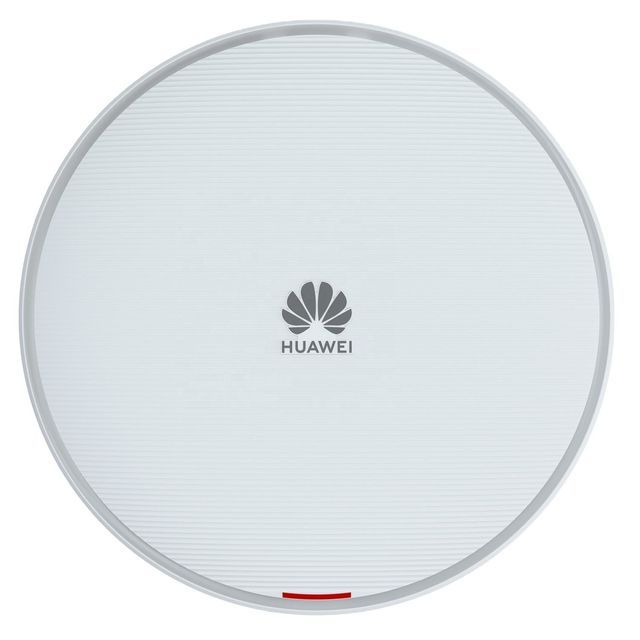

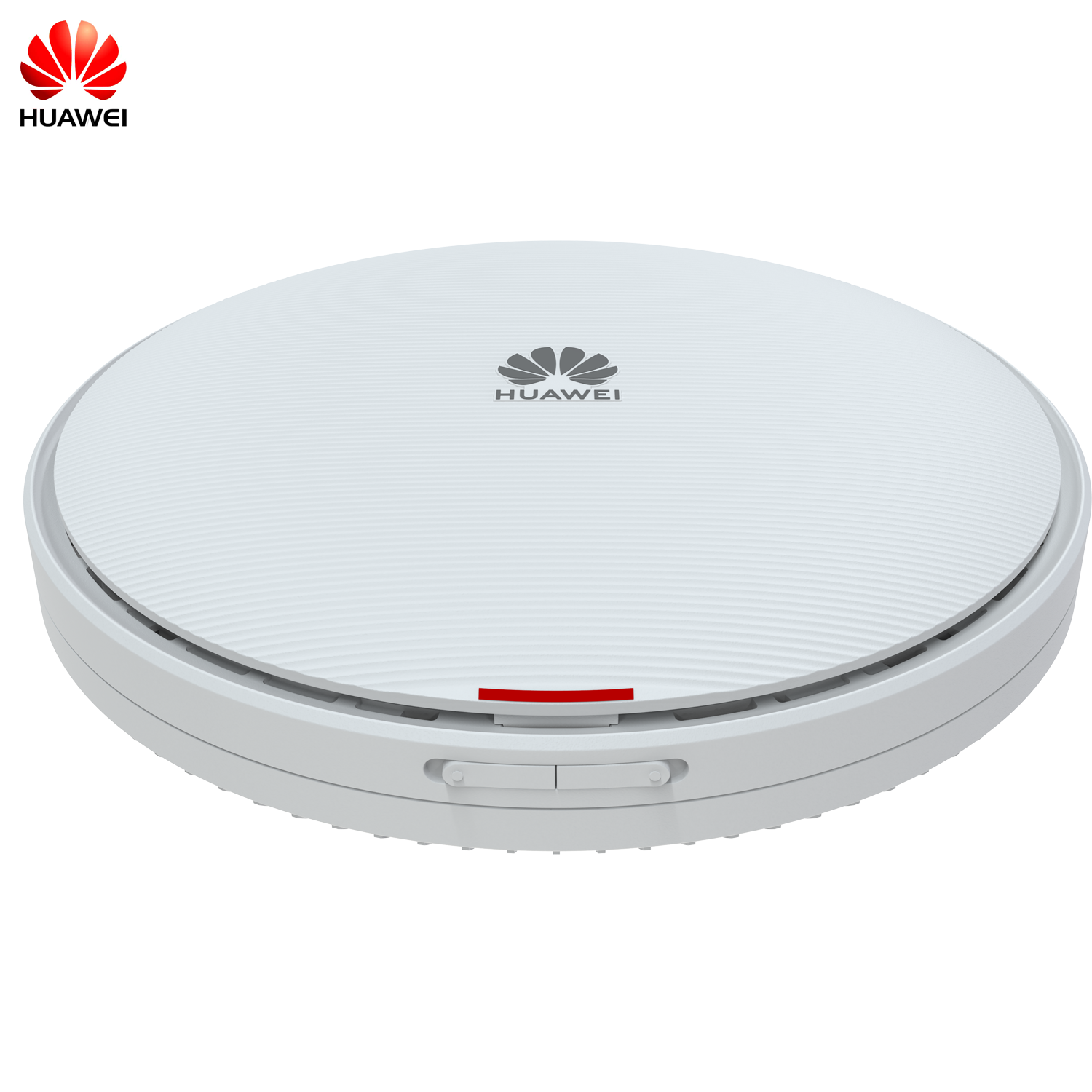

HuaweiAirEngine 5760-21 Access Point

AirEngine 5761-21 Access Point As a next-generation indoor Wi-Fi 6 (802.11ax) access point (AP), AirEngine 5761-21 supports six spatial streams and has a built-in smart antenna, the Wi-Fi signal always follows the user- on coverage, the highest rate is 5.375 Gbit/s. From SME offices, educational institutions to retail outlets, this AP performs well in scenarios that require high bandwidth and high-quality network experience.

detailed drawing

Features

Wi-Fi 6 technology

Features Multi-User Multiple-Input Multiple-Output (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA) for efficient data transmission, plus 1024 Quadrature Amplitude Modulation (QAM), six spatial streams, and up to 5.375 Gbit/s.

smart antenna

The dual-frequency coplanar smart antenna automatically suppresses interference, doubles the signal strength, and expands the coverage area by 20%, achieving high-quality wireless coverage with zero blind spots.

cloud management

The HUAWEI CLOUD management platform simplifies the management of APs and services, reducing network O&M costs.

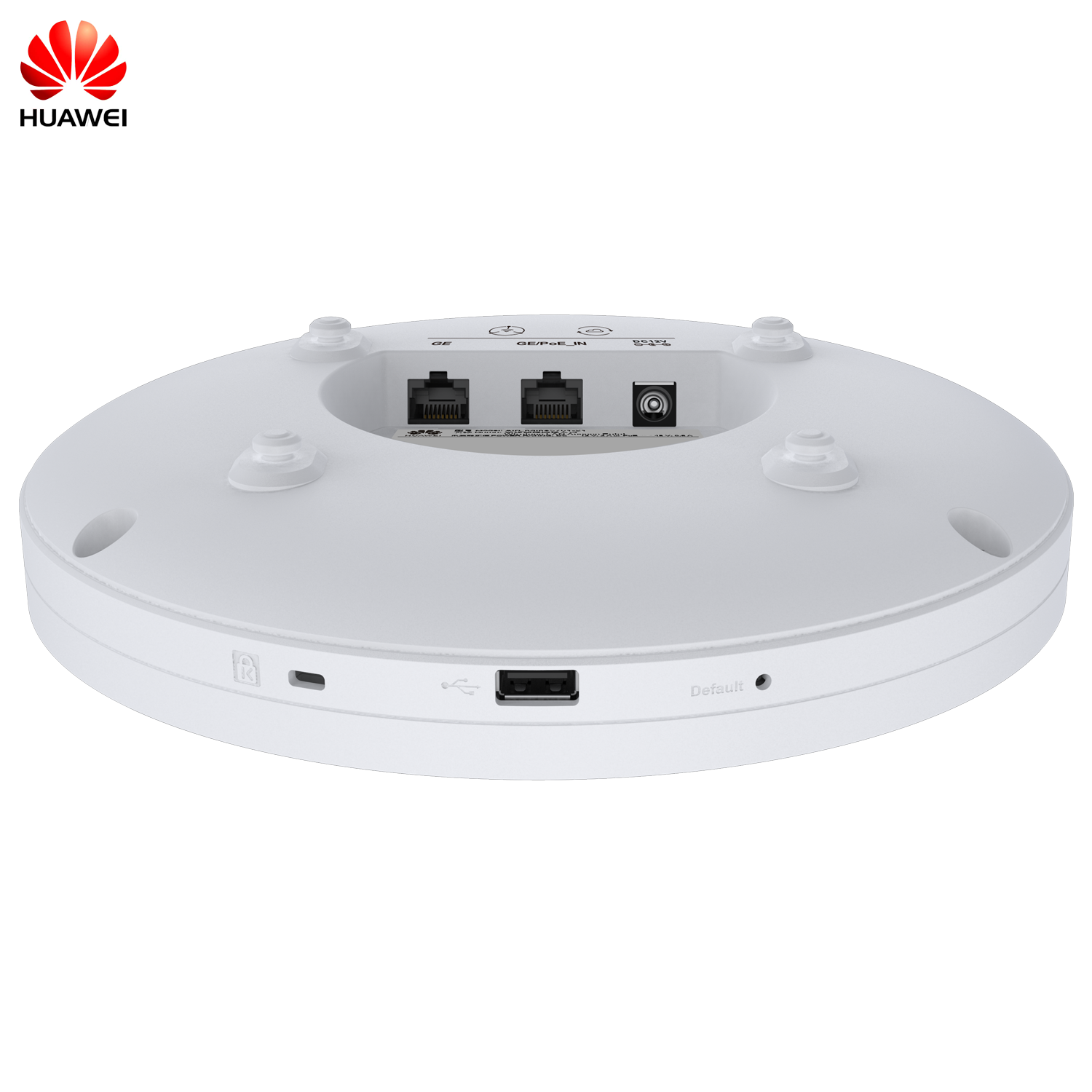

 Provide services in the 2.4GHz and 5GHz frequency bands at the same time, with a rate of up to 2.4GHz (2x2) 575Mbps, 5GHz (4x4) 4.8Gbps, and equipment 5.375Gbps.  Two GE ports.  Built-in smart antennas provide accurate coverage for STAs, reduce interference, and improve signal quality.  The USB interface can be used for external IoT expansion (support ZigBee, RFID and other protocols).  It supports O&M based on the Bluetooth serial port through the built-in Bluetooth and the CloudCampus APP, and cooperates with the positioning server to accurately locate Bluetooth terminals.  Support Fat, Fit, cloud three working modes.

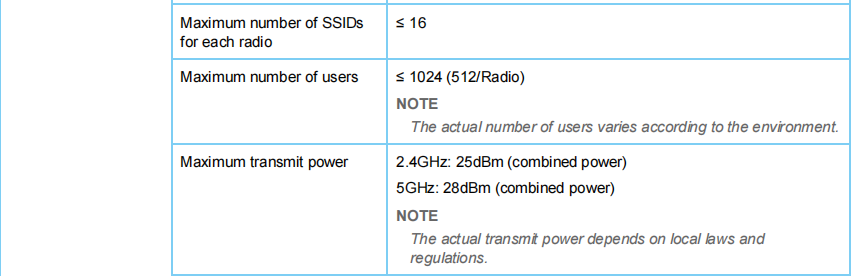

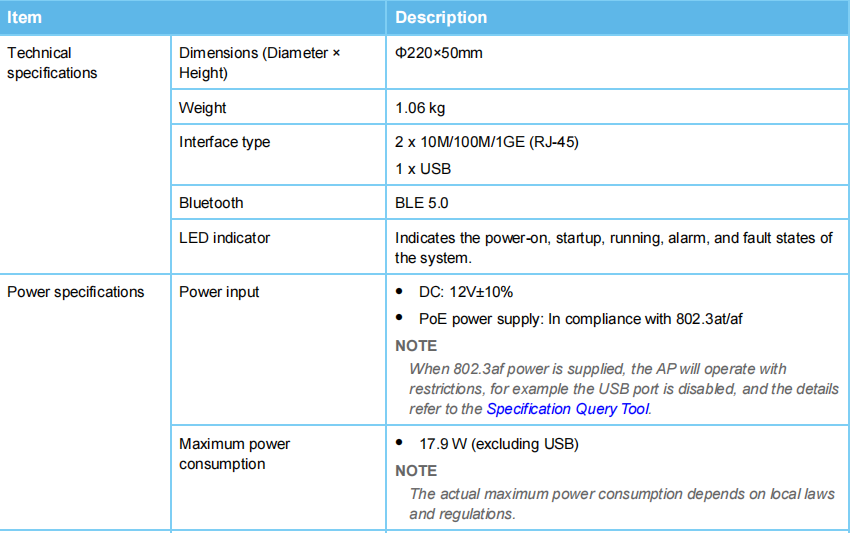

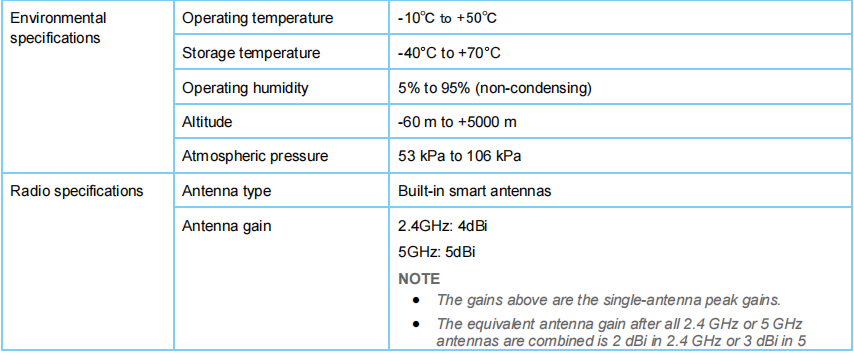

Product parameters

parameter	Aero engine 5761-21
Dimensions (diameter x height)	Φ220 x 50 mm
power input	DC: 12V±10%
power input		PoE power supply: Compliant with 802.3at.
Maximum power consumption	17.9 W (not including USB)
Maximum power consumption		Note: Actual maximum power consumption depends on local laws and regulations.
Maximum number of users	≤ 1024
Maximum number of users		Note: The actual number of users will vary depending on the environment.
Operating temperature	–10°C to +50°C
Antenna type	Built-in smart antenna
MIMO: Spatial Streams	2.4GHz: 2x2:2; 5GHz: 4x4:4
radio protocol	802.11a/b/g/n/ac/ac wave2/ax
maximum rate	5.375 Gbit/s
