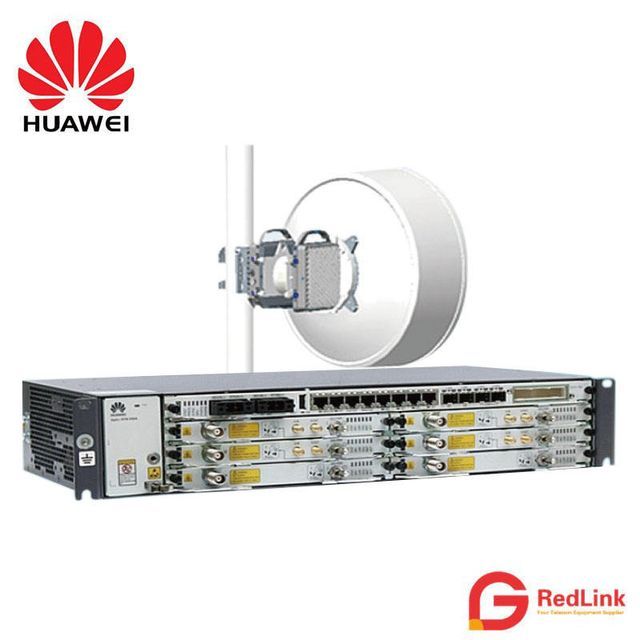

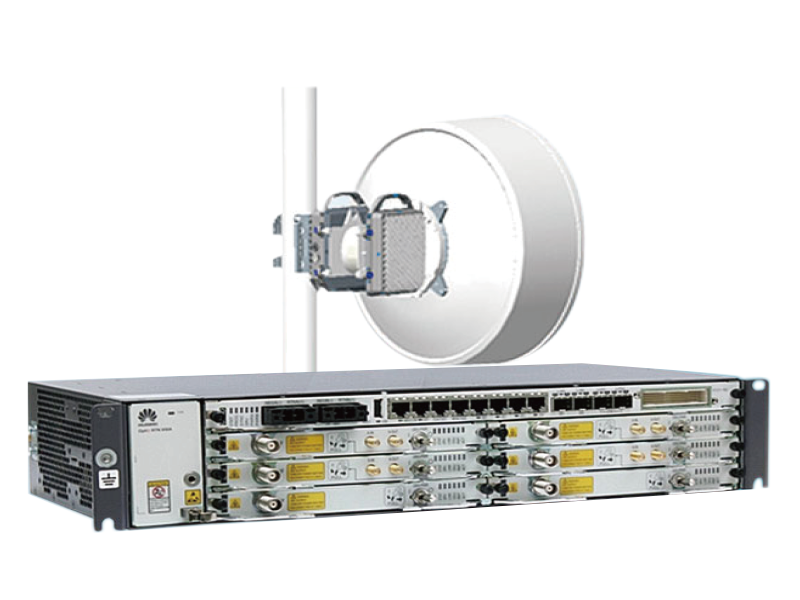

HUAWEI 6-42GHz traditional frequency IP microwave RTN 950A

Product Description

Universal split mount platform for TDM/hybrid/packet/routed microwave transmission. The platform provides rich service interfaces, large bandwidth, and easy expansion. The RTN 900 system fully meets the needs of enterprise microwave transmission networks.

The Huawei RTN 900 system is designed to protect existing enterprise infrastructure investments and enable smooth transformation to future new ICT networks. It is widely used in various vertical industries; especially in government, broadcasting, energy, and electric utilities.

Ultra-large bandwidth - using high modulation scheme, cross-polarization interference cancellation and Ethernet frame header compression technology; each channel provides a capacity of 2 Gbit/s
Carrier-grade reliability—protection and redundancy at the network, link, and device levels; water and dust ingress protection (IP65) and 8 kA surge protection for high-availability operation in harsh environments
Easy maintenance—unified network management and optical routing to realize end-to-end seamless networking, support TP-Assist feature, flexible operation and maintenance, and cost-effective
Enhanced Security - Supports AES 128/256 airlink encryption and device anti-theft features

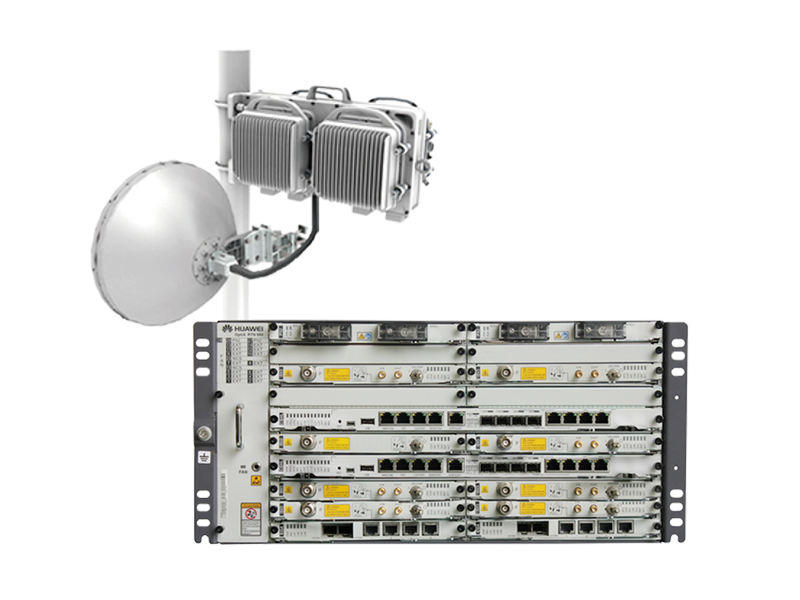

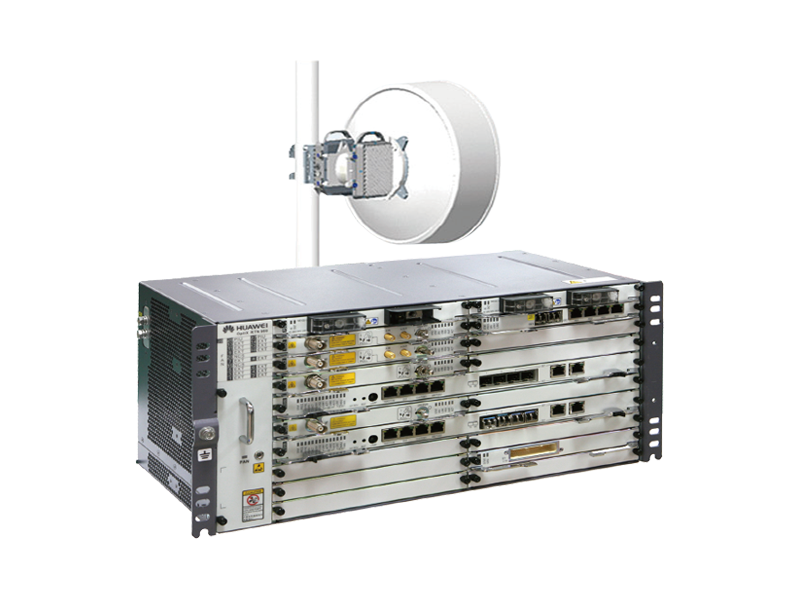

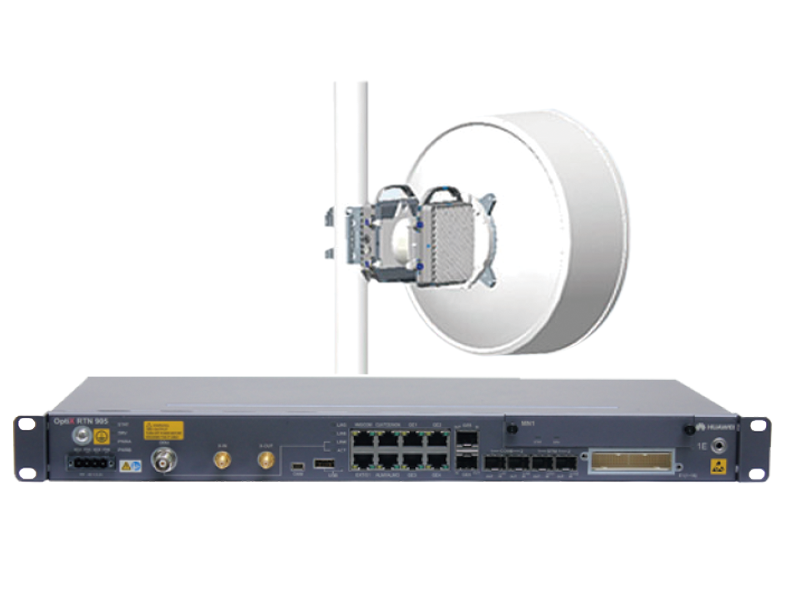

Specification	RTN905e	RTN950A	RTN980	RTN980L
frequency	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz			56/7/8/11GHz
channel spacing	3.5/7/14/28/40/50/56 MHz			3.5/7/14/28/40/50/56/112 MHz
RF direction	1U/2 RF	2U/10 RF	5U/20 RF	5U/16 RF
Switching capacity	8 Gbit/s	10 Gbit/s	22 Gbit/s	120Gbit/s
Cross-connect capacity	8 x 8 VC-4	32 x 32 VC-4	128 x 128 VC-4	128 x 128 VC-4
IDU Dimensions (WxDxH)	442mm x 220mm x 44mm	442mm x 220mm x 88mm	442mm x 220mm x 225mm	442mm x 220mm x 225mm
Syringe weight	3.1 kg	6.2 kg	15.4 kg	20.1 kg
power supply	–38.4V to –57.6V	-38.4V to -57.6V	-38.4V to -72V	-38.4V to -72V
Typical power consumption	92W	125W	470W	746W
environment	Temperature range: IDU –5°C to +60°C, ODU –35°C to +55°C Humidity range: IDU 5% to 95%, ODU 5% to 100%
