Huawei S5735-L8T4X-A1 8-Port Network Ethernet Switch Products from Combasst Industry Development (Shanghai) Co., Limited

Product Details

Origin:	Guangdong, China	Packaging Details:	original carton
payment terms:	Western Union, T/T	Forwarding performance:	84/102Mpps
model:	S5735-L8T4X-A1	port:	Shanghai
Switch capacity:	336Gbps/3.36Tb per second	brand:	Huawei
use:	enterprise	type:	enterprise switch

Product Description

HuaweiS5735-L8P4X-A1 (8*10/100/1000BASE-T ports, 4*10 GE SFP ports, AC power supply)

CloudEngine S5735-L series switches are very suitable for scenarios such as enterprise campus network access and gigabit-to-desktop scenarios. The S5735-L switch is based on next-generation high-performance hardware and Huawei's multi-functional routing platform (VRP). It stands out with attractive features such as intelligent stacking (iStack), flexible Ethernet networking, and diverse security controls. Support a variety of three-layer routing protocols to provide high performance and business processing capabilities.

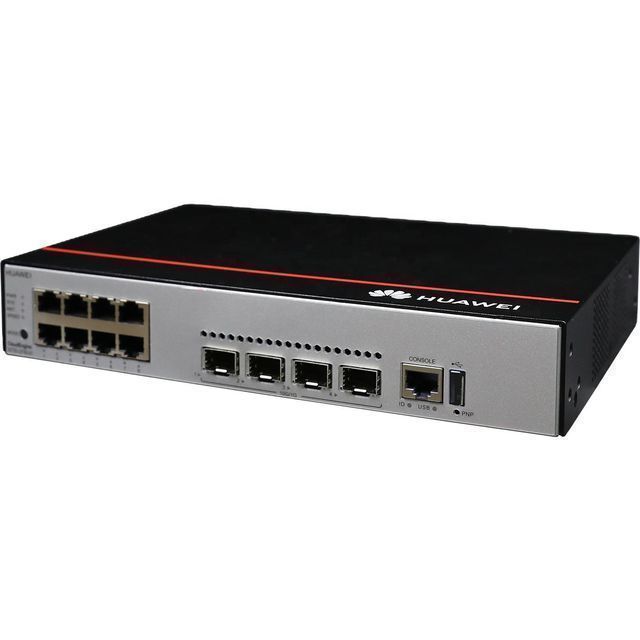

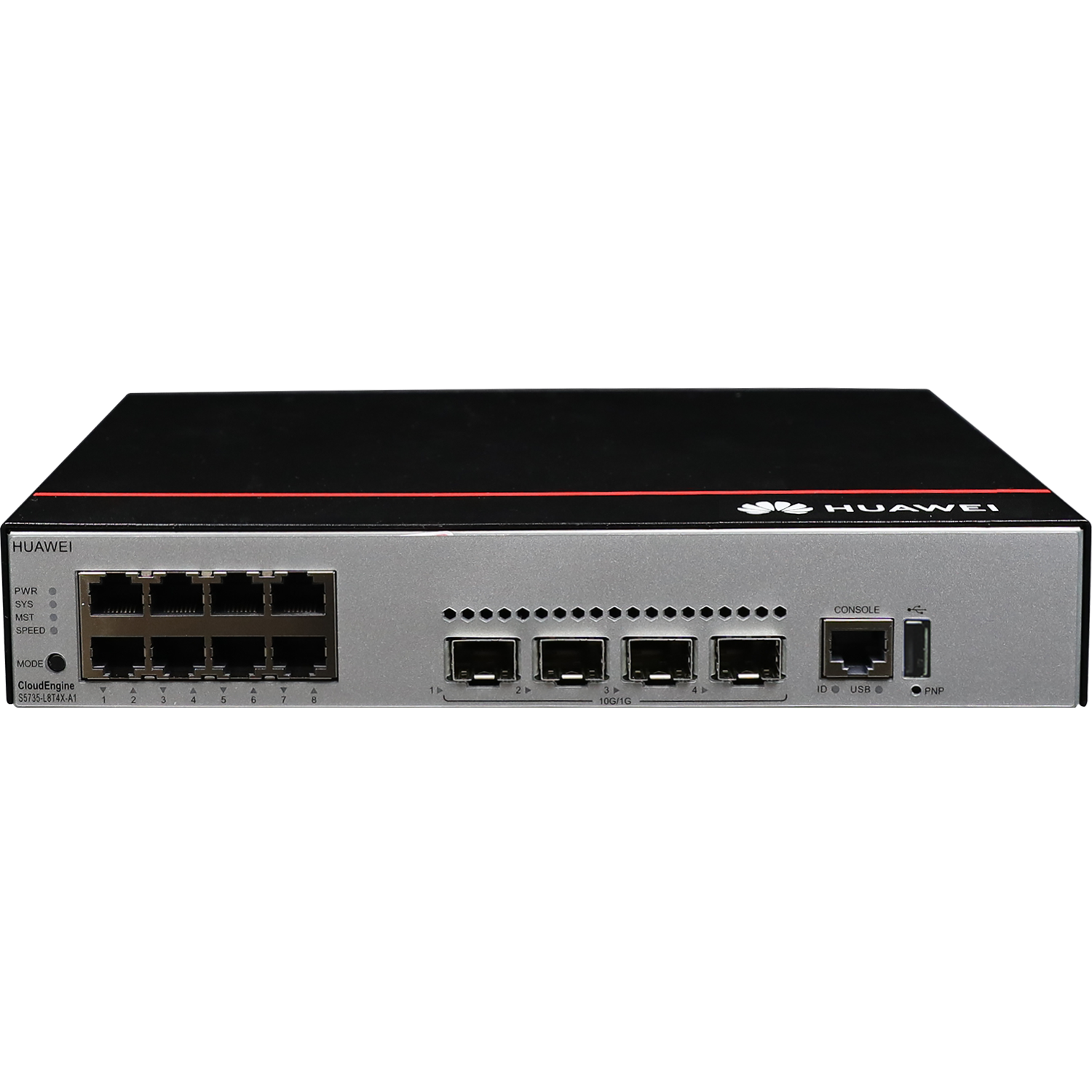

detailed drawing

Product parameters

S5735-L8T4X-A1 Technical Specifications
thing	Specification
Dimensions without packaging (H x W x D) [mm (in)]	Basic Dimensions (not including the part protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 inches x 9.84 inches x 7.1 inches)
Dimensions without packaging (H x W x D) [mm (in)]		Maximum size (depth is the distance from the front panel interface to the rear panel protrusion): 43.6mm x 250.0 mm x 187.0 mm (1.72 in x 9.84 in x 7.36 in)
Packaged Dimensions (H x W x D) [mm (in)]	90.0 mm x 370.0 mm x 380.0 mm (3.54 in x 14.57 in x 14.96 in)
Chassis height [U]	1 unit
Weight without package [kg(lb)]	1.38 kg (3.04 lbs)
Packaged weight [kg(lb)]	2.02 kg (4.45 lbs)
Typical power consumption [W]	21.2 watts
Typical heat dissipation [BTU/hour]	72.34 BTU/hour
Maximum power consumption [W]	26.3 watts
Maximum heat dissipation [BTU/hour]	89.74 BTU/hour
MTBF [year]	71.82 years
MTTR [hours]	2 hours
availability	>0.99999
Room temperature noise (sound power) [dB(A)]	43 dB(A)
Number of card slots	0
Number of power slots	0
Number of fan modules	1
Redundant power supply	not support
Long-term working temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) (altitude 0m to 1800m, non-industrial optics)
Long-term working temperature [°C(°F)]		-5°C to +55°C (23°F to 131°F) (0m to 1800m above sea level, the transmission distance is less than or equal to the industrial optical module to 10 km)
Short term operating temperature [°C(°F)]	not support
Limitations on Rate of Change of Operating Temperature [°C(°F)]	For altitudes of 1800-5000 m (5906-16404 ft), derate maximum operating temperature by 1°C (1.8°F) The altitude is increased by 220 meters (722 feet).
		When the ambient temperature is below 0°C (32°F), the switch cannot be actuated.
		When the transmission distance of the optical module is greater than Or equal to 70 kilometers.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term working relative humidity [RH]	5% to 95%, noncondensing
Long-term working height [m(ft.)]	0-5000 m (0-16404 ft)
Storage height[m(ft.)]	0-5000 m (0-16404 ft)
Power supply	built-in air conditioner
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A]	0.8A
memory	512MB
flash memory	512MB
console port	RJ45
Eth management port	not support
USB	not support
Real Time Clock	not support
RPS input	not support
Service port surge protection [kV]	Common mode: ±7kV
Power surge protection [kV]	Differential mode ±6kV, common mode ±6kV
Types of fans	built-in
Cooling method	Cooling with fan, intelligent fan speed adjustment
Airflow direction	Left wind, right wind
Power supply	not support
certified	Electromagnetic Compatibility Certification
		safety certificate
		Manufacturing Certification
