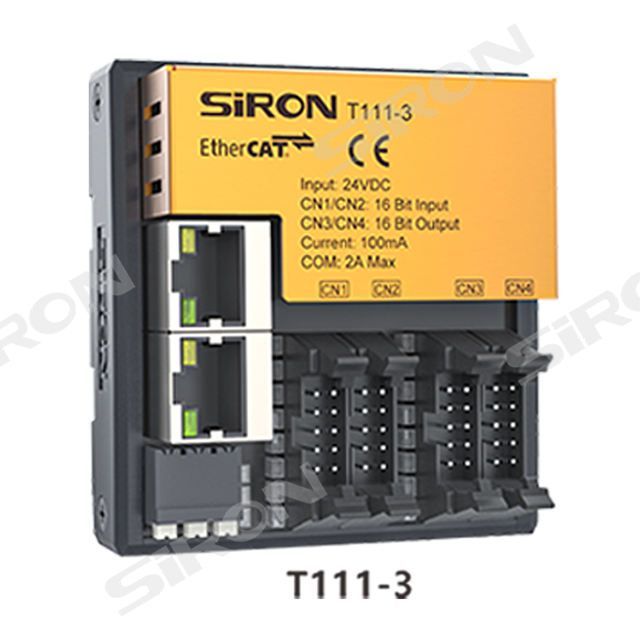

SiRON T110 ~T111 Series Digital/Analog Input and Output 8/16/32 Channels Ethercat Bus Couple Bus Io Module
- 249.34 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | race dragon | Rated voltage: | 24V DC (12~30V) |
| model: | T110-3~T110-5/T111-3~T111-5 | weight: | 130 grams |
| Protection class: | IP20 | Current consumption: | 60 mA |
| Origin: | Guangdong, China | network: | ether cat |
| port: | Guangdong Shenzhen Port | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Interface Type: | Analog input, angle output, digital input | Operating temperature: | -20~75℃ |
| Relative humidity: | 95%, no condensation | Supply capacity: | 500 pieces per month |
Our company has a wide range of products
If you have other needs, please contact us for consultation.
feature
Product parameters
Table 1: Input/Output Characteristics | ||||
3 | 16-channel digital input | 16-channel digital input | ||
4 | 32-channel digital input | 0 channel digital input | ||
5 | 0 channel digital input | 32-channel digital input | ||
Specification | ||
Rated voltage | 24V DC (12～30V) | |
current consumption | 60 mA | |

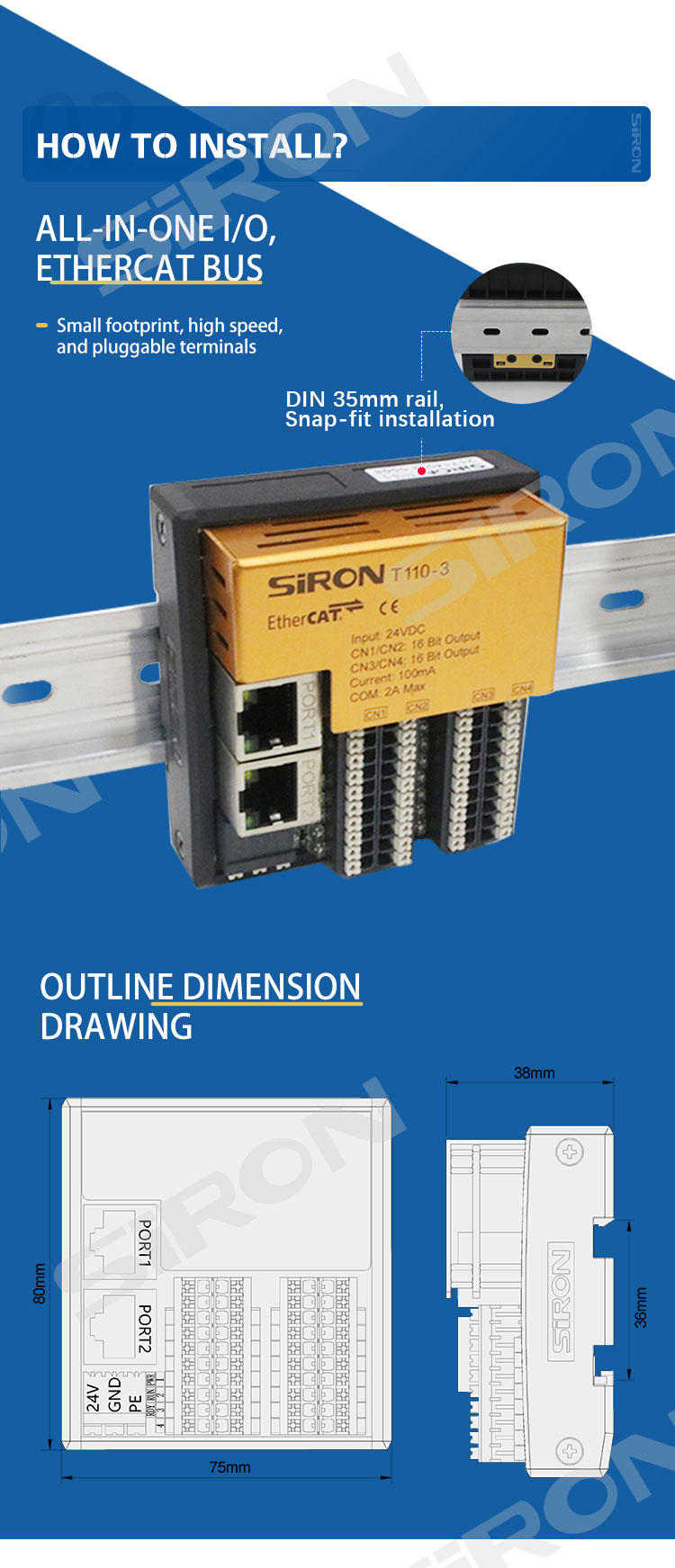

size | 80×75×38mm | |
degree of protection | IP20 | |
Operating temperature | -20～60℃ | |
Storage temperature | -20～75℃ | |
Relative humidity | 95%, no condensation | |
weight | 130 grams | |
Product Description
