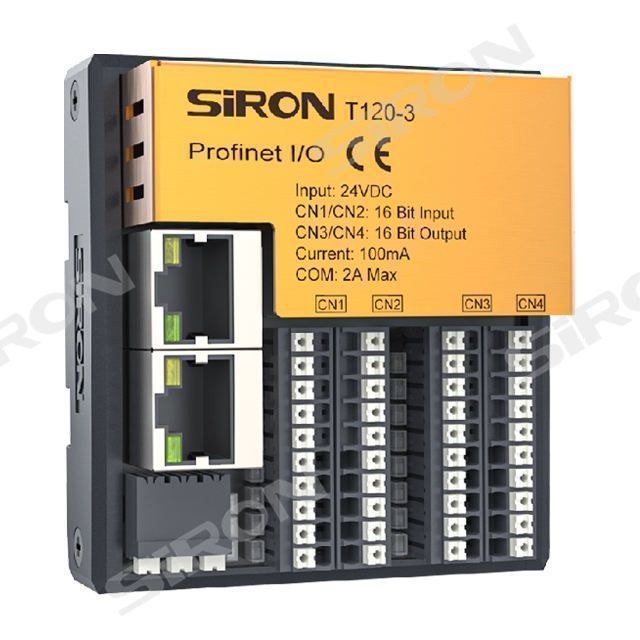

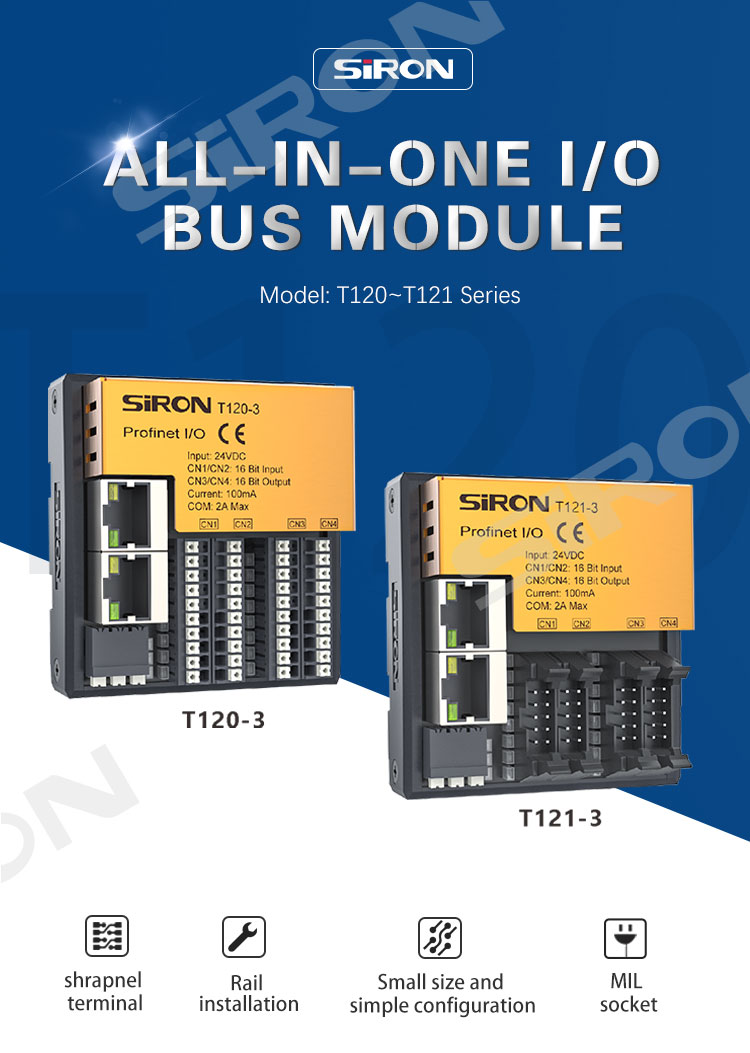

SiRON T120 ~T121 Series Digital/Analog Input and Output 8/16/32 Channels Ethercat Bus Couple Bus Io Module
- 249.34 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| place of origin; place of origin: | Guangdong, China | model: | T120-3~T120-5/T121-3~T121-5 |
| Supply capacity: | 500 pieces per month | weight: | 130 grams |
| Relative humidity: | 95%, no condensation | Protection class: | IP20 |
| Rated voltage: | 24V DC(12~30V) | port: | Shenzhen Port, Guangdong |
| brand: | Cylon | network: | EtherCAT |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Operating temperature: | -20~75℃ |
| Interface Type: | Analog input, angle output, digital input | Current consumption: | 60 mA |
Our company's product range is very rich
If you have other needs, please contact us for consultation.
Product parameters
Table 1: Input/Output Characteristics | ||||
3 | 16-channel digital input | 16-channel digital input | ||
4 | 32-channel digital input | 0 channel digital input | ||
5 | 0 channel digital input | 32-channel digital input | ||
Specification | ||
Rated voltage | 24V DC(12～30V) | |
current consumption | 60 mA | |

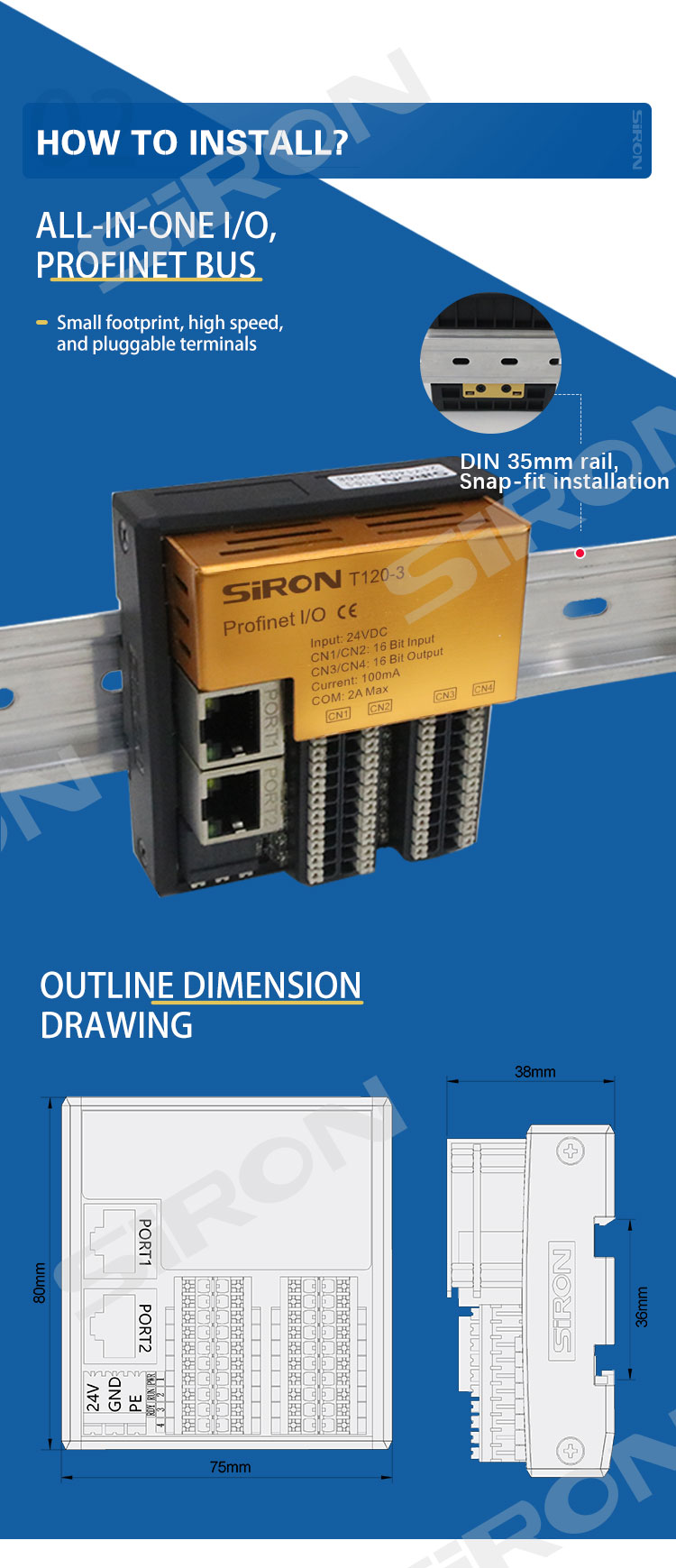

size | 80×75×38mm | |
Protection class | IP20 | |
Operating temperature | -20～60℃ | |
Storage temperature | -20～75℃ | |
Relative humidity | 95%, no condensation | |
weight | 130 grams | |
Product Description
