ODOT AUTOMATION CN-8031 Modbus-TCP IO Remote Network Adapter Bus Coupler

Supplier: Sichuan Odot Automation System Co., Ltd.
Region: Sichuan, China
Price: $154.93 /piece
Min. Order: 1 piece

Click here to contact

Product details

Number of extended IO modules:	Support is 32	Supply capacity:	10000 pieces per month
payment terms:	Wire transfer, Alipay	Maximum output:	8192 bytes
Modbus function code:	Support 01/02/03/04/05/06/15/16/23	Protection class:	IP20
Packaging Details:	3pcs/inner box 15 boxes/CARTON	support:	Modbus IO device communication
network:	EtherNet/IP, Profibus DP, Profibus IO, EtherCAT, Modbus, others	brand:	point automation
Name:	MODBUS TCP network adapter	Operating temperature:	40~85 degrees
Origin:	Sichuan, China	Package preview:
port:	Mianyang	Maximum input:	8192 bytes
protocol:	Profinet, EtherCAT, Ethernet/IP, Profinet, Modbus	product name:	I/O adapter
model:	CN-8031	Interface Type:	Analog input, angle output, digital input, digital output, encoder input, pulse output, serial communication, temperature input

About ODOT Automation

As a leading automation solution provider, we focus on industrial communication product development, industrial automation
Control system design, integration and technical services.

In these years of experience, there are more than 30 technicians, as many as
There are 130 employees and more than 6000 square meters of factory buildings.

Now we have established the ODOT product line consisting of PLC and remote I/O
Modules, Integrated I/O Modules, IIOT Gateways, Protocol Converters, Serial Gateways, Industrial Ethernet Switches, Industrial
Wireless, embedded modules, etc.

Product overview

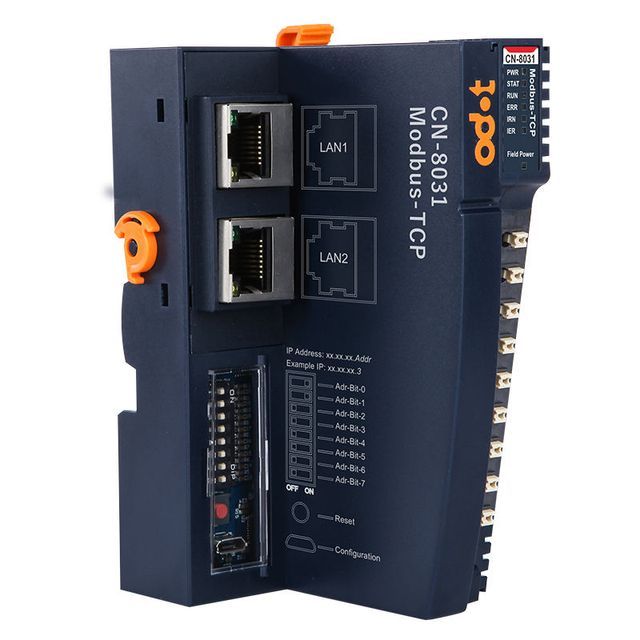

ODOT CN-8031 MODBUS TCP Network Adapter

thisODOT CN-8031 Modbus TCPNetwork Adapter SupportStandard Modbus TCP Server Communication, Ethernet supports dual-port switch cascading function.

This adapter supports simultaneous access to 5 Modbus TCP clients,

Support Modbus function code 01/02/03/04/05/06/15/16 /23,

Support watchdog Modbus application, support process data
The maximum sum of input and output is 8192 bytes,

Support 32 expansion IO modules.

The module has its own diagnostic function, which can monitor the communication status of the IO module in real time.

List of functions

Working temperature: -40~85℃

Working humidity: 5%-95%

(No condensation) Protection class: IP20

3 years warranty

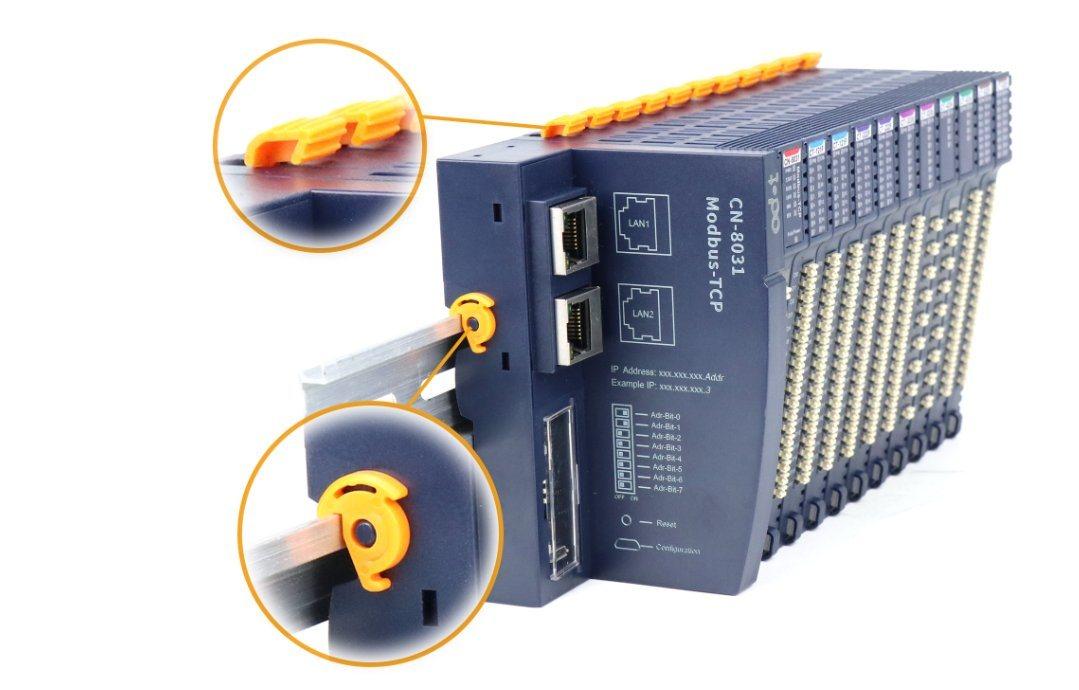

35mm DIN rail

size

LED terminal

product specification

No	thing	data
1	system power	24V DC
2	power range	9-36Vdc
3	energy consumption	110mA@24Vdc
4	current output	Maximum: 2A@5Vdc
5	extension module	32 slots
6	wiring	Max.1.5mm² (US Working Group 16)
7	installation type	35mm DIN rail
8	size	11551.575mm
