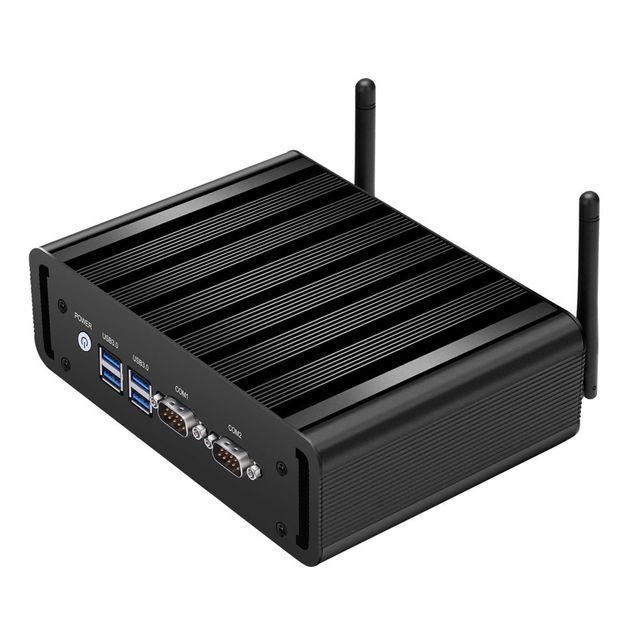

Industrial Mini PC Core I5 ​​​​5200U Hackintosh Minipc Desktop Computer with Dual Ethernet

processor

In-tel Ce-leron J4105 Processor, 4M Cache, up to 2.50 GHz, 4 Core 4 threads, TDP: 10WIn-tel Ce-leron Processor N2830, 1M Cache, up to
2.41GHz, 2 cores and 2 threads, TDP: 7.5W
In-tel Celeron processor N2930, 2M cache, up to 2.16GHz, 4 cores and 4 threads, TDP: 7.5W
In-tel Ce-leron processor 2955U, 2M cache, 1.40 GHz, 2 cores and 2 threads, TDP: 15W
In-tel Ce-leron processor 3205U, 2M cache, 1.50 GHz, 2 cores and 2 threads, TDP: 15W
In-tel Ce-leron processor J1800, 1M Cache, up to 2.58 GHz, 2 Core 2 threads, TDP: 10W
In-tel Celeron Processor J1900, 2M Cache, up to 2.42 GHz, 4 Core 4 threads, TDP: 10W
In-tel Ce-leron J4105 processor, 4M cache, up to 2.50GHz, 4 cores and 4 threads, TDP: 10W
In-tel Pentium processor 3805U, 2M cache, 1.90 GHz, 2 cores 2 threads, TDP: 15W
In-tel Co-re i3-4010Y processor, 3M cache, 1.30GHz, 2 cores and 4 threads, TDP: 11.5W
In-tel Co-re i3-4010U processor, 3M cache, 1.70GHz, 2 cores and 4 threads, TDP: 15W
In-tel Co-re i5-4200U processor, 3M cache, up to 2.60GHz, 2 cores and 4 threads, TDP: 15W
In-tel Co-re i3-5005U processor, 3M cache, 2.00GHz, 2 cores and 4 threads, TDP: 15W

exhibit

GPU: Intel HD Graphics
VGA: maximum resolution 1920×1080@60Hz
HD: Maximum resolution 1920×1080@60Hz
Dual display: VGA + HD, support synchronous or asynchronous display

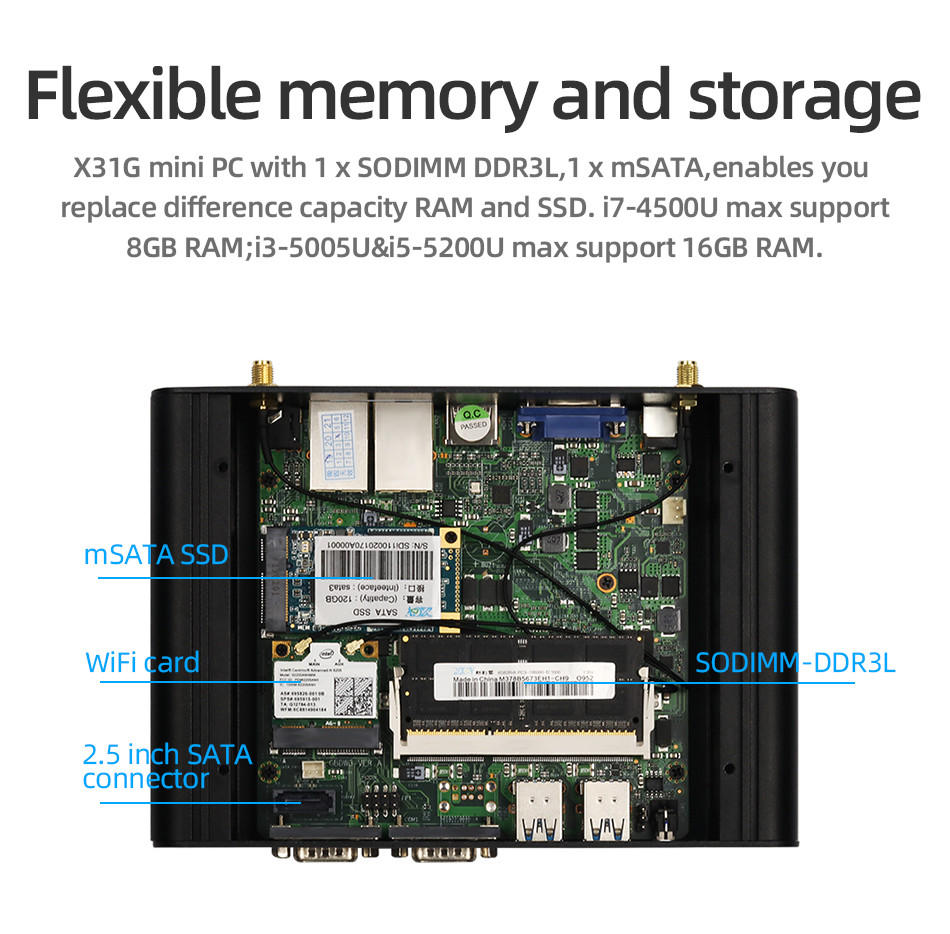

memory

2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V
1*204-pin SO-DIMM
Maximum capacity: 8G

hard disk

SSD: 1* full height mSATA slot, 16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD
Hard disk: support SATA 2.5" hard disk

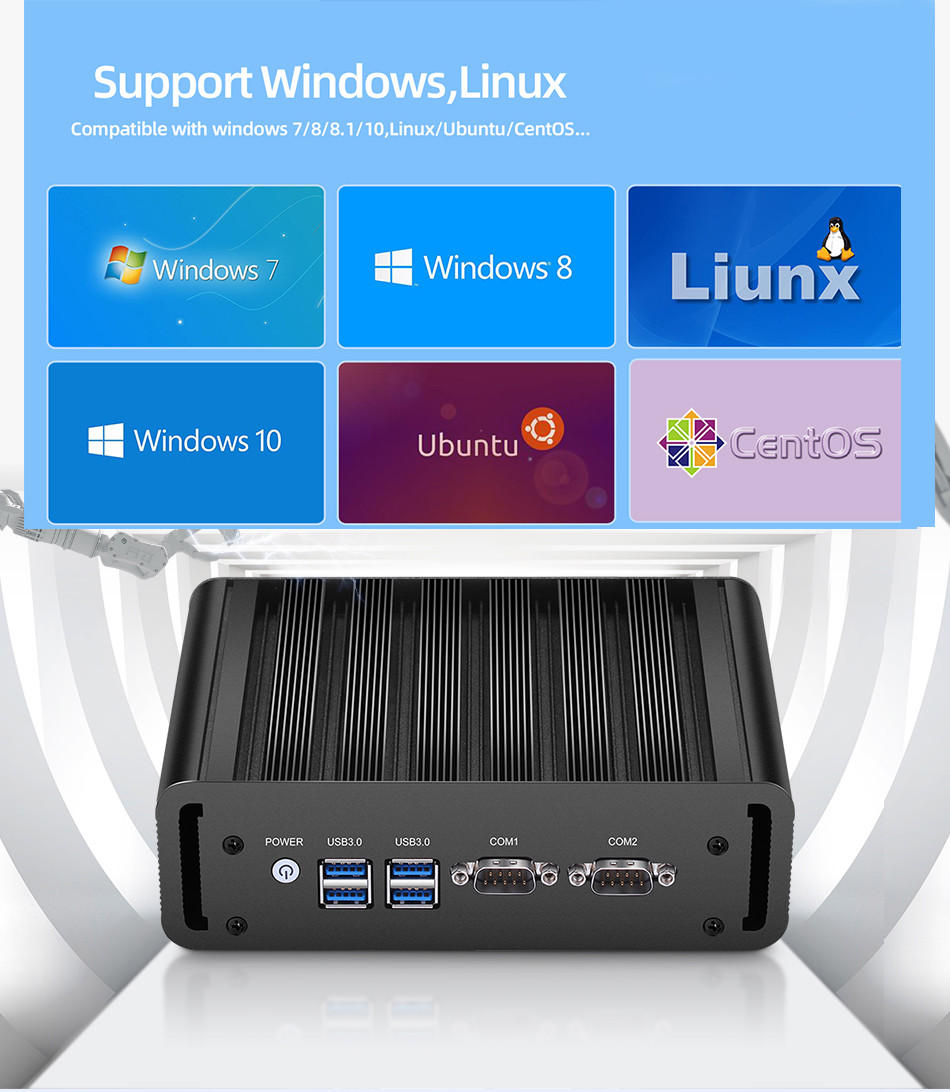

Supported OS

Official Win10/8/7/Linux/ubuntu/CENTOS etc.
Note: We pre-installed Win7/8/10 operating system for testing only, if you need legal genuine Win7/8/10 operating system or other operating systems such as Linux, Ubuntu,
Pfsense..., please contact us in time.

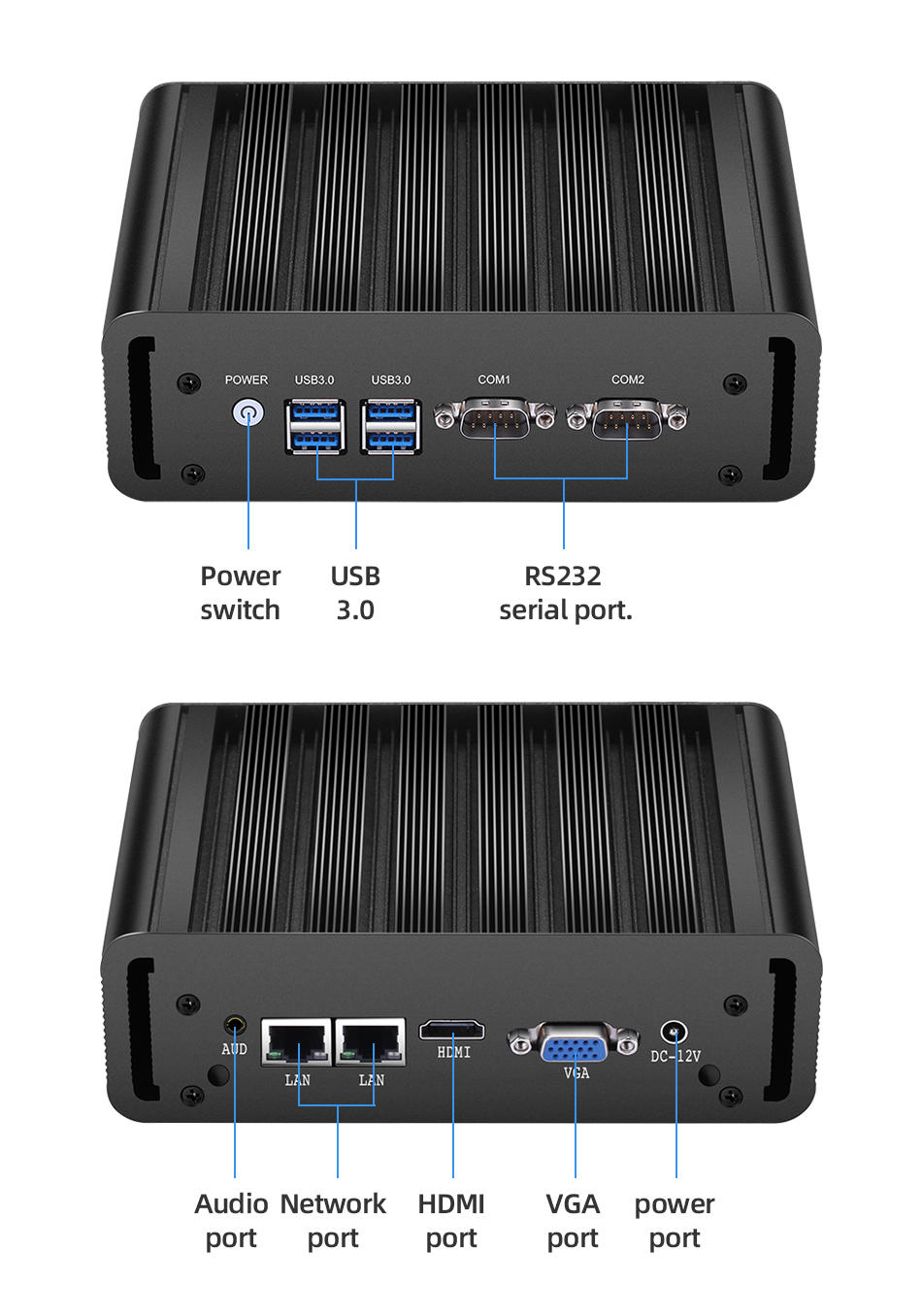

port

2xUSB2.0
2xUSB3.0
2xRS232 serial port
2xLAN, 10/100/1000/ Mbps Realtek 8111F, support wake-on-lan
1xVGA
1x HD
1x audio

sound

Main system: adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out

expand

1× Low profile mini PCIE

electricity demand

DC 12V 3A/36W (AC TO DC, 100~240V)

working environment

Working temperature'-20-65℃
Storage temperature 15°C-35°C
Relative humidity 5%~95% (non-condensing)

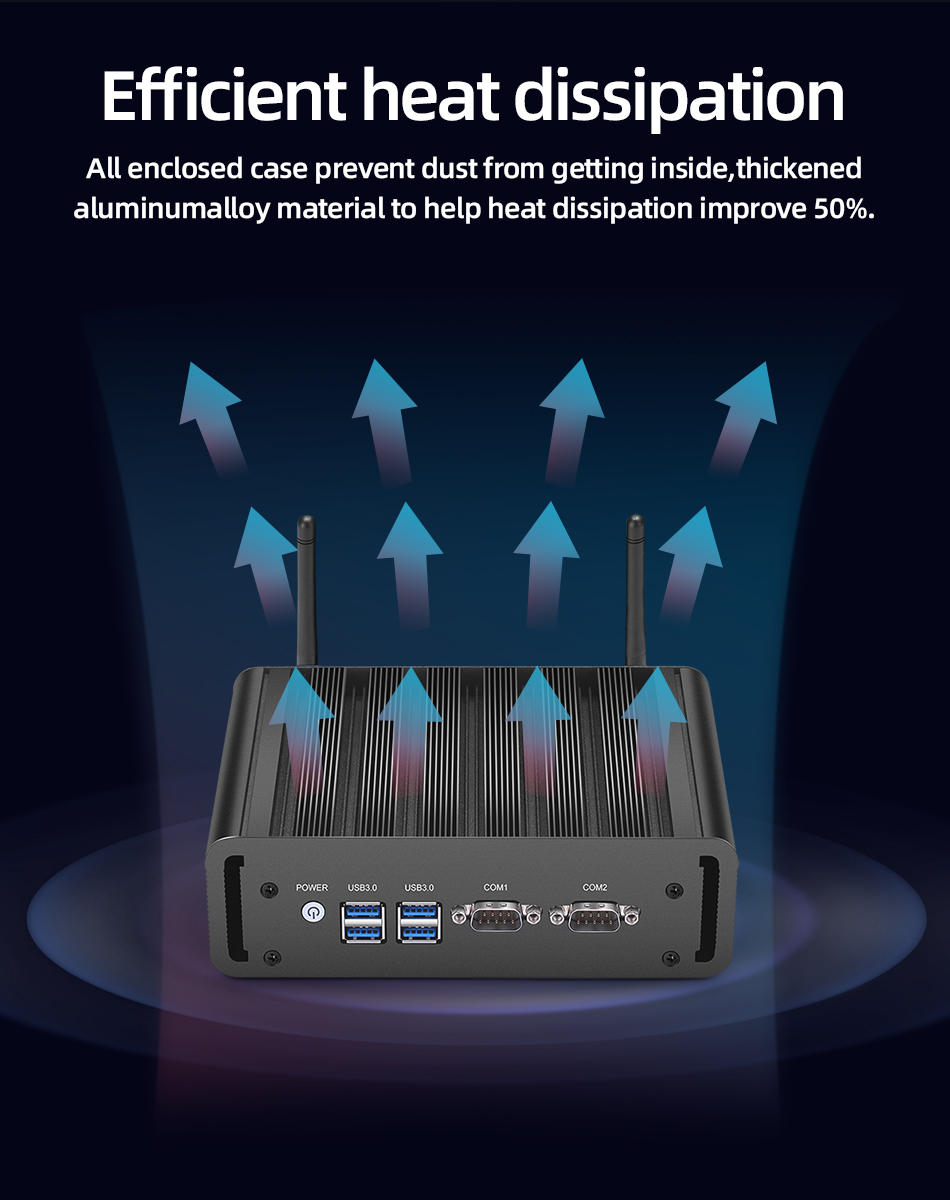

structure

Aluminum case, no fan

aspect

133mm*125mm*40mm

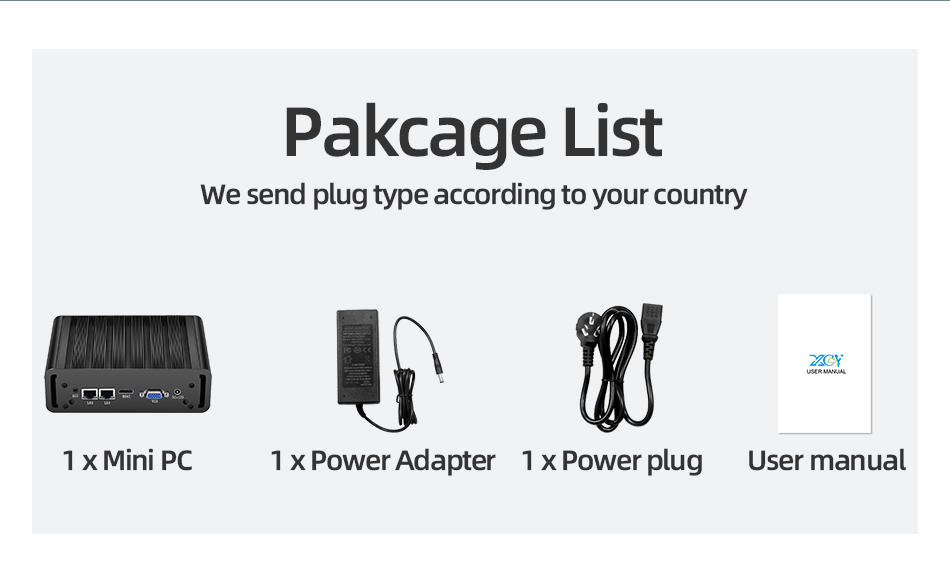

Package Contents

1 x Mini PC
1 x User Manual
1 power adapter
1 x VESE mount
2 x Wifi Antennas (except barebones)
