Mikrotik I7 6 Port Lan Ntp Desktop Network Server Protection Opnsense Pfsense Router Firewall 8Gb Ram Mini Pc

Supplier: Shenzhen Innovative Cloud Computer Co., Ltd.
Region: Guangdong, China
Contact: Mr Huangyong Pan
Price: $85.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	wired and wireless	Storage:	Support 1MSATA SSD + 12.5" HDD
brand:	XCY	CPU:	Celeron, Core i3 i5 i7
Throughput:	-	product status:	in stock
size:	209MM150MM58MM	Simultaneous sessions:	-
VPN support:	Yes	Warranty:	1 year
Memory:	1*DDR3L 1333/1600Mhz SODIMM (Max: 8G)	operating system:	Linux/Win XP/Win7/8/10/PFSense
Origin:	Guangdong, China	model:	X44
Name:	6 LAN Firewall Router Mini PC	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:	2USB, 1HD, 1serial, 6network	local area network:	6* RJ45 Gigabit Ethernet
cooling system:	Fanless passive cooling

Product Description

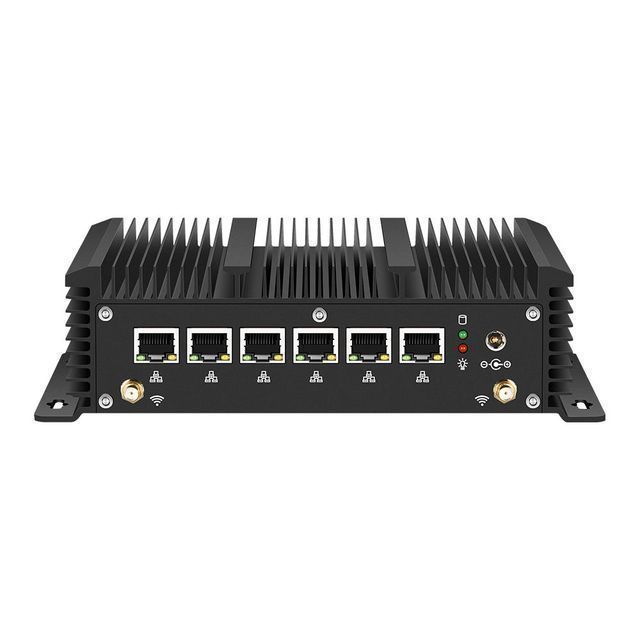

X44 6-LAN Firewall Appliance 3865U Mini PC

Intel Pentium Gold 5405U processor, 2M cache, 2.30 GHz, 2 cores and 4 threads, TDP: 15W

-In-tel Ce-leron Processor 2955U,2M Cache,1.40 GHz,2 Core 2 threads,TDP:15W In-tel Ce-leron Processor 3865U,2M Cache,1.80 GHz,2 Core 2 threads,TDP:15W In-tel Ce -leron Processor J1900,2M Cache, up to 2.42 GHz,4 Core 4 In-tel Core i3-7100U Processor,3M Cache, 2.40 GHz,2 Core 4 threads,TDP:15W In-tel Core i5-7200U Processor,3M Cache , up to 3.10 GHz, 2 cores 4 threads, TDP: 15W threads- With 1 channel 1.35V DDR3L 1066/1333/1600MHz memory, maximum support 8GB; - Support 1x mSATA SSD and 1x SATA 2.5 inch HDD/SSD; - Compatible with 6x LAN In-tel 210AT 10/100/1000Mbps, 2x USB 3.0, 2x USB 2.0, 1x HD-MI, 2x COM ports (one is RJ45 to RS232 console); - The operating system supports Windows 7/8/10, Linux, Ubuntu, CentOS, LEDE, Pfsense, SohpOS, ESXI6.7, etc.; - Support Wake-on-LAN, virtualization, automatic power-on when power off. - 1 slot Mini PCIE for WiFi / 3G 4G module; - Fanless passive cooling, aluminum case.

Package List: 1 x Mini PC 1 x AC Adapter 1 x Power Cord 1 x SATA Power and Data Cable 1 x User Manual

detailed drawing

processor	In-tel Ce-leron processor 2955U, 2M cache, 1.40 GHz, 2 cores and 2 threads, TDP: 15W In-tel Ce-leron processor 3865U, 2M cache, 1.80 GHz, 2 cores and 2 threads, TDP: 15W
exhibit	GPU: Intel HD Graphics HDMI: maximum resolution 1920x1080@60Hz
memory	2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V 1*204-pim SO-DIMM Maximum capacity: 8G
hard disk	SSD: 1*full height mSATA slot, 16GB/30GB/60GB/120GB/240GB/500GB/1TB mSATA SSD Hard disk: support SATA2.5" hard disk
Supported OS	Official Win7/8/10 ubuntu/LINUX/CENTOS/ LEDE /ESXI6.7 Note: We pre-installed Win7/8/10 operating system for testing only, if you need legal genuine Win7/8/10 operating system or other operating systems such as Linux, Ubuntu, Pfsense..., please contact us in time.

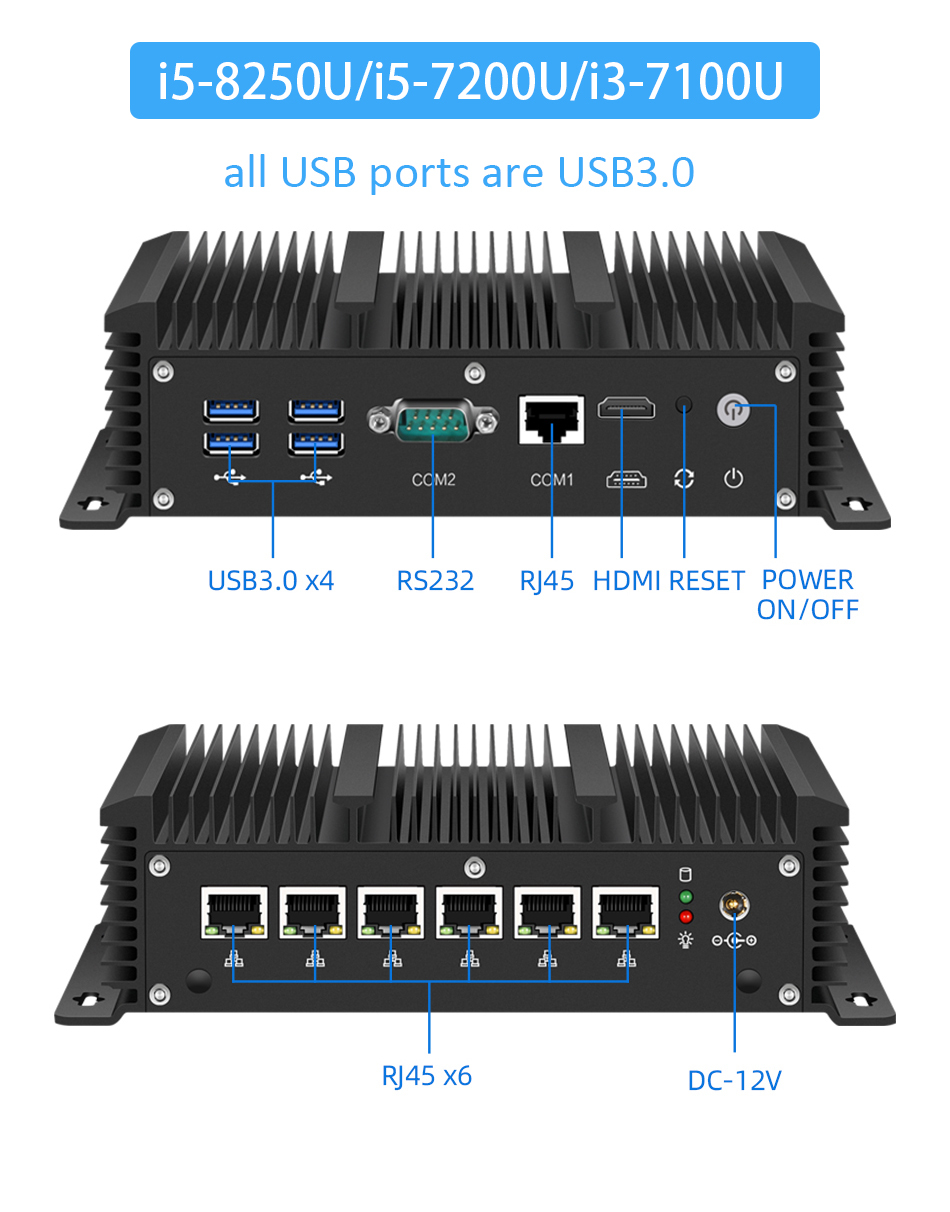

port	2xUSB3.0 (Mainboard can expand 2*USB2.0) 2xUSB2.0 2xRS232 COM (the motherboard can expand COM3) 6xLAN 10/100/1000/ Mbps Intel 210AT, supports Wake-on-LAN, S5 RTC wake-up settings 1x HD 1x switch
expand	Mini-PCIe:1* half-height Mini PCIe for WIFI/3/4G
electricity demand	Power type: DC-IN5.5*2.5 Power input voltage: 12V Power input current: 5A
working environment	Working temperature'-20-65℃ Storage temperature 15°C-35°C Relative humidity 5%~95% (non-condensing)
aspect	209MM150MM58MM
Package Contents	1 x Mini PC 1 x User Manual 1 power adapter 1 x SATA data and power cable
