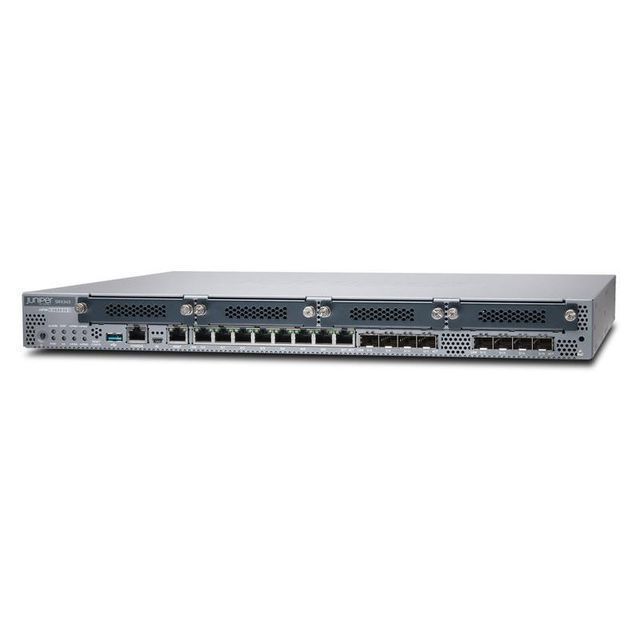

New Original SRX345-SYS-JB Juniper SRX345 Services Gateway SRX345-SYS-JB-DC SRX345-SYS-JB-2AC

Supplier: Beijing Fengyuan Tengda Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Niki Shang
Price: $1500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

part number:	SRX345-SYS-JB	port:	Beijing
payment terms:	Western Union, T/T, MoneyGram	Certification:	ce, RoHS
brand:	Juniper	System Memory (RAM):	4GB
place of origin; place of origin:	China	Onboard RJ-45 ports:	8x1GbE
type:	wired	Supply capacity:	25 pieces per day
USB 3.0 port (Type A):	1	Throughput:	2Gbps
PoE+ port:	0	VPN Support:	Yes
product status:	in stock	model:	SRX345-SYS-JB
Console (RJ-45 + miniUSB):	1	Ports that support MACsec:	16x1GbE
Out-of-band (OOB) management port:	1x1GbE	Packaging Details:	original juniper packaging
Mini PIM (WAN) slot:	4	Total number of onboard ports:	16x1GbE

Product Description

SRX345-SYS-JB

Model Number: SRX345-SYS-JB - Juniper Networks SRX Series Services Gateway Details: SRX345 Services Gateway includes hardware (16GE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cables and RMK) and Junos software foundation (firewall , NAT, IPSec, routing, MPLS and switching).

SRX345-SYS-JB-DC Model: SRX345-SYS-JB-DC - Juniper SRX Series Services Gateway Details: SRX345 DC PSU and JUNOS BASE (JSB) SRX345-SYS-JB-2AC Model: SRX345-SYS-JB-2AC - Juniper Networks SRX Series Services Gateway Details: SRX345-2AC Hardware and JUNOS BASE (JSB)

contact

Skype :in the eyes 1

WeChat:1032906002

WhatsApp :00 8615311706072Email ID:niki-shang@fytda.cn

Specification

Hardware Specifications

Specification	SRX300	SRX320	SRX340	SRX345	SRX380
connectivity
Total number of onboard ports	8x1GbE	8x1GbE	16x1GbE	16x1GbE	20 (16x1GbE, 4x10GbE)
Onboard RJ-45 port	6x1GbE	6x1GbE	8x1GbE	8x1GbE	16x1GbE
Onboard Small Form-Factor Pluggable (SFP) Transceiver Ports	2x1GbE	2x1GbE	8x1GbE	8x1GbE	4x10GbE SFP+
Ports that support MACsec	2x1GbE	2x1GbE	16x1GbE	16x1GbE	16x1GbE
Ports that support MACsec	2x1GbE	2x1GbE	16x1GbE	16x1GbE		4x10GbE
Out-of-band (OOB) management port	0	0	1x1GbE	1x1GbE	1x1GbE
Mini PIM (WAN) slot	0	2	4	4	4
Console (RJ-45 + miniUSB)	1	1	1	1	1
USB 3.0 port (Type A)	1	1	1	1	1
PoE+ port	Not applicable	62	0	0	16

Base System Model

Product number	describe
SRX300-SYS-JB	The SRX300 Services Gateway includes hardware (8GbE, 4G RAM, 8G flash, power adapter and cables) and Junos Software Base (firewall, NAT, IPSec, Routing, MPLS, and Switching). Does not include RMK.
SRX320-SYS-JB	SRX320 Services Gateway includes hardware (8GbE, 2 MPIM slots, 4G RAM, 8G Flash, power adapter and cables) and Junos software base (Firewall, NAT, IPSec, Routing, MPLS and Switching). Does not include RMK.
SRX320-SYS-JB-P	The SRX320 Services Gateway includes hardware (8GbE, 6-port POE+, 2x MPIM slots, 4G RAM, 8G Flash, power adapters and cables) and Junos Software foundation (firewall, NAT, IPSec, routing, MPLS and switching). Does not include RMK.
SRX340-SYS-JB	SRX340 Services Gateway includes hardware (16GbE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cables and RMK) and Junos software Basics (Firewall, NAT, IPSec, Routing, MPLS and Switching)
SRX345-SYS-JB	SRX345 Services Gateway includes hardware (16GbE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cables and RMK) and Junos software Basics (Firewall, NAT, IPSec, Routing, MPLS and Switching)
SRX345-SYS-JB-2AC	SRX345 Services Gateway includes hardware (16GbE, 4 MPIM slots, 4G RAM, 8G Flash, dual AC power, cables and RMK) and Junos Software Basics (Firewall, NAT, IPSec, Routing, MPLS and Switching)
SRX345-SYS-JB-DC	The SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, single DC power supply, cables and RMK) and Junos software foundation (firewall, NAT, IPSec, routing, MPLS, and switching)
SRX380-P-SYS-JB-AC	SRX380 Services Gateway includes hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cables and RMK) and Junos software foundation (firewall, NAT, IPSec, routing, MPLS and switching)
