Industrial Panel PC IP65 with 7 Inch Open Frame Fanless Built-in Touch Screen

Supplier: Shenzhen Wang Xin Yuan Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Celia Chen
Price: $60.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Built-in camera:	options	product status:	in stock
Packaging Details:	(bubble bag + pearl cotton soft bag) carton + plywood box fanless integrated capacitive touch screen open 7-inch industrial tablet IP65	touch screen:	Capacitive touch; resistive touch option
Package preview:		Internet function:	Wired network card RJ45, wireless WIFI, 3G, 4G network
brand:	shining star	Origin:	Guangdong, China
CPU:	J1800, J1900 quad-core; RK3288, RK3399 optional	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Full HD 1080P:	support	operating system:	Android, Windows, Ubuntu, Linux as options
Metal shell + tempered glass:	can be customized	Touch screen type:	COM port or USB port to communicate with the host
port:	Shenzhen/Hong Kong	type:	tablet
Certification:	FCC, ce, RoHS, others	ID:	OEM/Customization
Input voltage:	12V 24V optional	Supply capacity:	10000 pieces per month

Product Description

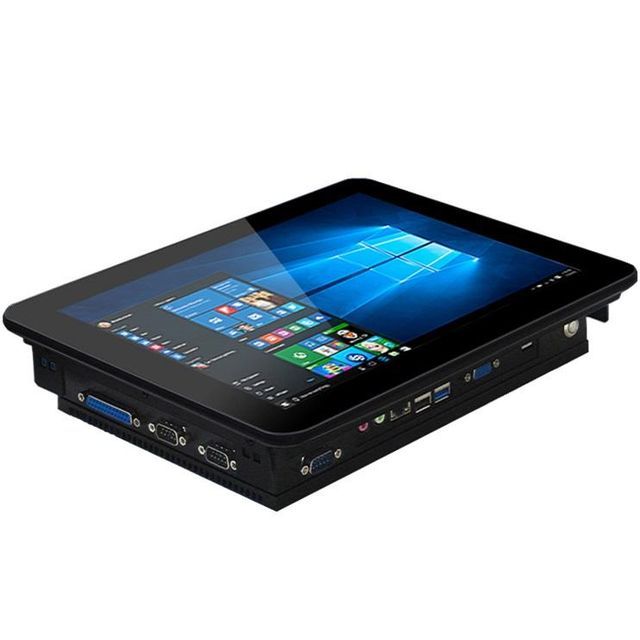

Fanless Integrated Capacitive Touch Screen Open Frame 7 Inch Industrial Panel PC IP65

Show Panel Details	display panel brand	LG,Samsung,AUO,Chimei,etc...Original brand new & A+ grade
Show Panel Details		size	7 inches to 55 inches
custom frame color	Black, white, green, pink, ivory, wine red, blue, purple, ... can be customized
body material	A durable aluminum frame and tempered glass protect the LCD panel from external shocks. The front panel complies with NEMA/IP65 waterproof and dustproof standards, making it suitable for harsh industrial site working environments. It is most suitable for industrial applications such as factory automation, machinery manufacturing, numerical control equipment, textile equipment, communication networks, and power automation.
Computer Configuration	chipset:	Celeron J1900/J1800/J2900, RK3288 RK3399... optional
		Chipset Frequency:	Quad Core up to 2.66Ghz
		integrated chipset	Intel Bay trail SOC
		Memory:	1GB DDR3 memory (up to 8G)
		hard disk:	32GB high-speed solid state drive (optional)
		Wifi	150Mbps 802.11b/n/g Wifi Integrated
Computer Configuration	sound	Realtek HD ALC662 HD Line-in/Line-out/Speaker-out with 1W AMP circuit
		ethernet port	Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
		VGA port	Default *1 (option)
		serial port	Default *2 COM (option)
		usb port	Default 4 USB (3USB2.0; 1*USB3.0) (optional)
operating system:	Win7, Win7 Embedded, Win8, Win10, Ubuntu, VXWORKS, QNX, Linux, Android, etc...

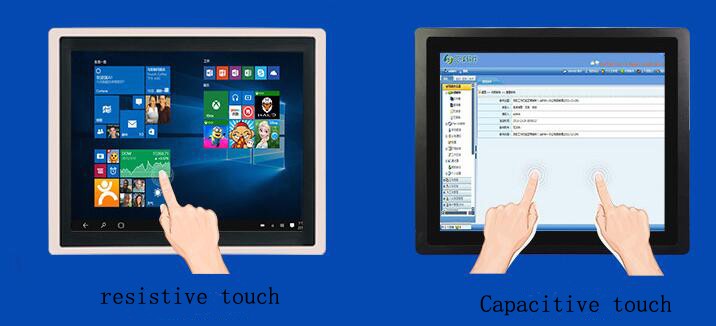

touch screen	touch screen type	Resistive (4-wire/5-wire); Capacitive; SAW/IR as option
		touch screen interface	Serial (RS232) or USB or COM as options
		Surface hardness	Mohs number 7; light transmittance>75%
power supply	Input voltage	DC12V or 24V
power supply		output rating	≦20W
environmental	Operating temperature	-20 ~ 60°C (-4~140°F)
		Storage temperature	-30 ~ 80°C (-22 ~ 176°F)
		Relative humidity	5~95% (non-condensing)
		Shake: Apply SSD	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hour/axis
		Shock: App SSD	10 G, IEC 60068-2-64, half sine wave, duration 11 ms
		electromagnetic compatibility	CE/FCC Class A

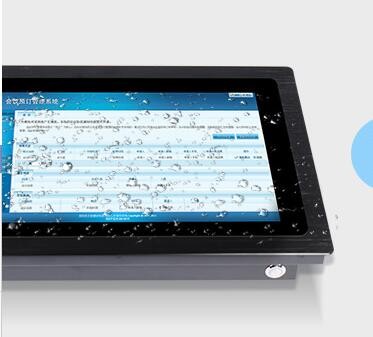

		waterproof	Front panel IP65

feature.

Our industrial panel PCs are fully integrated, waterproof and dustproof, combining high performance different touch screen technologies in an industrial grade TFT-LCD panel with a stylish IP65 / NEMA 4-4 x Ingress rated flat industrial design.

Our Industrial PCs are built for reliability, durability and long expected product life. Immune to environmental conditions such as liquid spills, splashes and washdowns, these screens are the most stain-resistant units on the market. Our industrial IP65/ NEMA 4 touch computers are designed for process control, food processing equipment, machine control, human machine interface, automation equipment and in-vehicle applications. Our tablets are available from 8" to 55"

specialty.

1. Long-lasting product cycles, maintaining continuity through all phases of project launch and service

2. Superior quality and highly engineered industrial displays

3. Provides drift-free operation with a lifetime of more than 35 million finger touches, such as resistive, IR, SAW, Scap, Pcap, etc.

4. All-steel structure designed for harsh and industrial environments

5. Rugged design with aluminum NEMA 4/ IP65 front panel or all steel enclosed chassis

6. Meet NEMA 4/4x/12 and IP65 standards

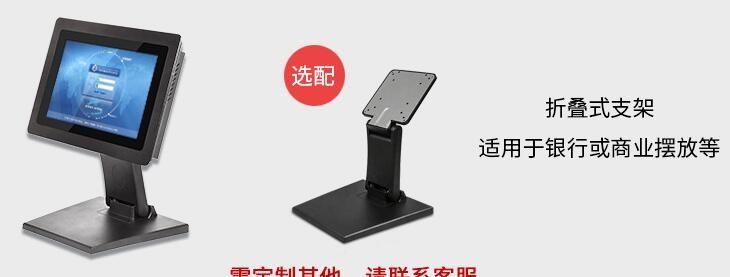

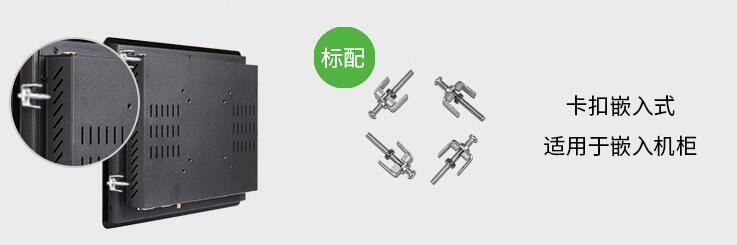

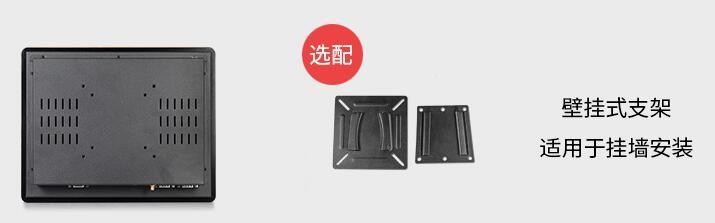

7. Various mounting methods (75*100mm VESA mount and clamps mounting)

8. Accuracy for High Usage Applications

9. Support Windows, Linux operating system, Android, Mac operating system, Ubuntu

10. Compliant with CE, FCC, RoHS, ISO9001:2008 standards.

11. VGA, DVI, support HDMI, AV, S-Video, BNC multiple input/output optional

12. Wide working temperature -30 to 80 degrees optional, support 7/24 operation
