Kale 24ft big ass mosque hvls fan

Supplier: Kale Environmental Technology (Shanghai) Corporation
Region: Shanghai, China
Contact: Ms Cora Hu
Price: $2100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mounting:	Ceiling Fan;	Packaging Detail:	hvls fan is packed into 2 wooden cases in export standard.;
Supply Ability:	3000 Set/Sets per Month hvls fan;	Power:	1.5KW;
Blade Material:	Magnalium;	Fan Weight:	120KG;
After-sales Service Provided:	No overseas service provided;	Motor brand:	LENZE;
Color:	Silver;	Type:	Other;
Payment Terms:	L/C,T/T,hvls fan;	Model Number:	KL-HVLS-D6BAA73;
Delivery Detail:	Shipped in 5 days after payment;	Speed:	60RPM;
Cooling Type:	Air Circulation;	Product Name:	explosion proof HVLS cooling ventilation fans;
Port:	Shanghai;	Material:	Aluminum Alloy;
Application:	industrial and commercial places;	Air Volume:	13050m³/min;
MOQ:	1set;	Function:	Ventilation & Cooling;
Voltage:	380V/220V;	Usage:	Industrial Use;
Brand Name:	KALE;	Electric Current Type:	AC;
Place of Origin:	Shanghai China (Mainland);	Certification:	CCC,CE,ROHS,UL;

Product Description

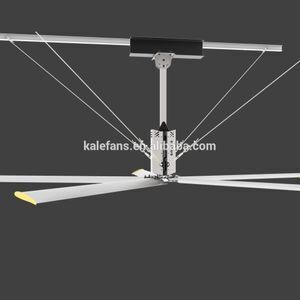

Kale 24ft big ass mosque hvls fan

Brief Introduction of EURUS Series KALEFANS

EURUS Series large energy-saving fan is a kind of super fan with a big diameter up to 7.3M/24FT, high volume and low speed(HVLS).

With a electricity power of 1.5kw or less, 5 pieces magnalium new Kale Airfoil Blades™ are able to drive a mass of air to ventilate and cool in 1400m2 area.

Compared with traditional small fans and air conditioners, EURUS Series KALEFAN has imcomparable advatanges:energy-saving, environment-friendly, large area cover, comfortable feeling etc.

EURUS Series is widely used in industrial places, factories, warehouses, farms and other high large spaces.

Product Main Parameter

Specifications	12ft(3.6m)	16ft(4.9m)	20ft(6.1m)	24ft(7.3m)
Model	D6BAA36	D6BAA49	D6BAA61	D6BAA73
Max Air Volume	10350m³/min	11250m³/min	12150m³/min	13050m³/min
Max Speed	95RPM	75RPM	65RPM	55RPM
Fan Body Weight	65KG	80KG	105KG	120KG
Power	1.1KW	1.5KW	1.5KW	1.5KW
Full-load Amps	2.4amps/380V 4.2amps/220V	2.4amps/380V 4.2amps/220V	3.5amps/380V 5.7amps/220V	3.5amps/380V 5.7amps/220V

Note:
1. Weight: the weight doesn't contain control box, top connection parts etc.
2. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
3. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.

Product Main Components

Main Components
	Motor System---imported Germany LENZE motor 1.Low backlash assembly process and gear grinding technique, lower noise 2.Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safety 3.Adopt IE2 high efficient motor, save more 5-10% than IE1 4.Passed CCC, CE, UL certificates
	Control Sytem (VFD Controller) 1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents. 2. Germany Rittal control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively. Protection level is IP55, passing UL, EMC, LVD, ROHS certificates. 3. YASKAWA VFD, JapanInternational Brand
	Driving Hub Adapt imported aluminum material and formed through 1500T hot forging+CNC lathe processing+CNC precious machincing technology. Processed by CNC, the precision error of chassis is within 100μm, making sure the precise dynamic balance.
	Jacketed Connector (independent development) Use aircraft grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.
	Patented Kale Airfoil Blades™ Fan Blade High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.

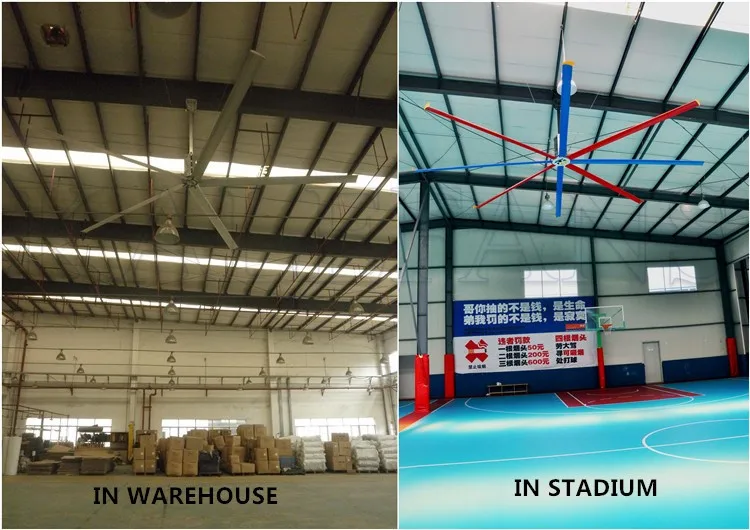

Installation Condition and View

Energy Efficieny Explanation

Area Coverage

Model	Area Coverage/m2	Suggest Installation Height/m
HVLS-D6BAA73	1400-2000	7-12
HVLS-D6BAA61	800-1400	6-10
HVLS-D6BAA49	600-800	5-8
HVLS-D6BAA36	400-600	4.5-7.5

Packaging & Shipping

Packing Details
MODEL	PKG/UNIT	DIMENSION	GROSS WEIGHT/UNIT
HVLS-D6BAA73	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:3700X420X450MM	250 KG
HVLS-D6BAA61	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:3100X420X450MM	230 KG
HVLS-D6BAA49	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:2500X420X450MM	210 KG
HVLS-D6BAA36	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:2000X420X450MM	190 KG
