Waterproof Alloy Blade Air Cool Industrial Ceiling Fan for HVLS

Supplier: Kale Environmental Technology (Shanghai) Corporation
Region: Shanghai, China
Contact: Ms Cora Hu
Price: $1900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Drive Type:	LENZE Motor Reducer;	Color:	Silver;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,T/T;
Port:	Shanghai;	Mounting:	Ceiling Fan;
Certification:	CCC,CE,ROHS,UL;	Usage:	Ventilation & Cooling;
Electric Current Type:	AC;	Ceiling Fan:	Waterproof Alloy Blade Air Cool Industrial Ceiling Fan for HVLS;
Voltage:	220V/380V/415V;	Fan Diameter:	7.3M/24FT;
Blade Material:	Magnalium;	Material:	Aluminum Alloy;
Application:	Warehouse, Factory, FARM;	Place of Origin:	Shanghai China;
Power:	1.5KW;	Brand Name:	KALE;
Package:	2 PCS Wooden Cases;	Speed:	55RPM;
Type:	Other;	Air Volume:	13050m³/min;
Packaging Detail:	Waterproof Alloy Blade Air Cool Industrial Ceiling Fan for HVLS is packed in 2 pcs wooden case;	Supply Ability:	3000 Set/Sets per Month;
Delivery Detail:	Shipped in 5 days after payment;	Amount of Blade:	5 PCS;

Product Description

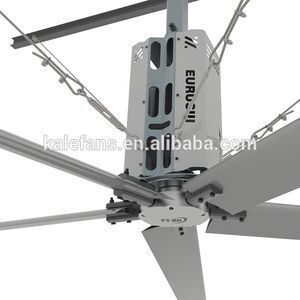

Waterproof Alloy Blade Air Cool Industrial Ceiling Fan for HVLS

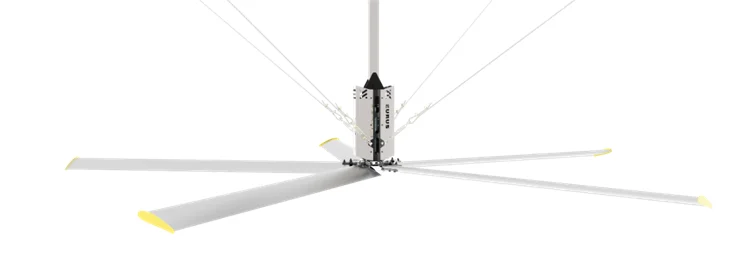

Brief Introduction of EURUS Series Fan

  EURUS series large energy-saving fan is a super fan with a diameter up to 7.3m, 5 fan blades!
    New Kale Airfoil Blades™, apply aerodynamic principles and the advanced technology.
    With a power of 1.5KW or less, the blades are able to drive a mass of air and make a large  area of natural breeze, leading to dual functions of ventilation and cooling.
    Compared with traditional HAVC and small high-speed air blower, EURUS series has incomparable advantages in use, which solves the problems of ventilation and cooling in such places perfectly.
     Because of the advantage of large coverage, KALE fans are widely used plants, logistics & warehouses, halls etc.

Technical Parameters

Specifications	12ft(3.6m)	16ft(4.9m)	20ft(6.1m)	24ft(7.3m)
Model	D6BAA36	D6BAA49	D6BAA61	D6BAA73
Max Air Volume	10350m³/min	11250m³/min	12150m³/min	13050m³/min
Max Speed	95RPM	75RPM	65RPM	55RPM
Fan Body Weight	65KG	80KG	105KG	120KG
Power	1.1KW	1.5KW	1.5KW	1.5KW
Full-load Amps	2.4amps/380V 4.2amps/220V	2.4amps/380V 4.2amps/220V	3.5amps/380V 5.7amps/220V	3.5amps/380V 5.7amps/220V

Note:
1. Weight: the weight doesn't contain control box, top connection parts etc.
2. Size: the above-mentioned product size is standard, other sizes can be customized.
3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
4. Packing: export standard crates.
5. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.

Kalefans Advantages:

1. Power is only 1.5KW or less, amazing energy-saving

2. Extremely large area cover per fan, up to 1600m³

3. Dimensional natural breeze, ventilate & cooling

4. Eliminate moisture & humidity

………………

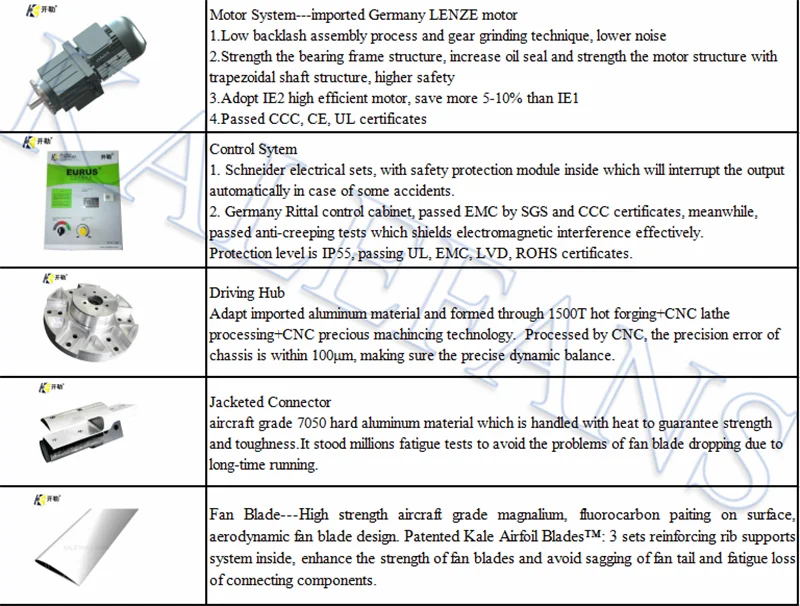

Components

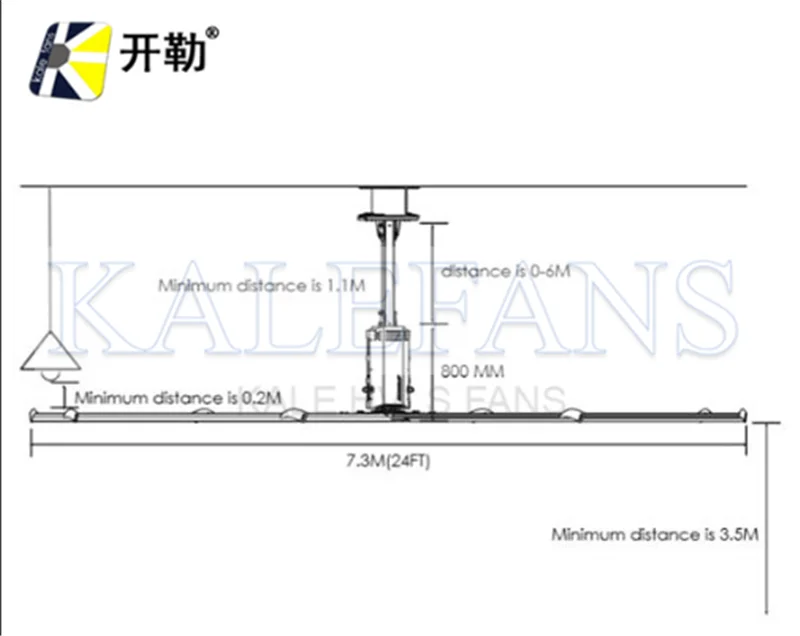

Installation Conditions

Packaging & Shipping

Packing Details
MODEL	PKG/UNIT	DIMENSION	GROSS WEIGHT/UNIT
HVLS-D6BAA73	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:3700X420X450MM	250 KG
HVLS-D6BAA61	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:3100X420X450MM	230 KG
HVLS-D6BAA49	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:2500X420X450MM	210 KG
HVLS-D6BAA36	2 wooden cases	1. motor crate: 950X830X520MM 2.blade crate:2000X420X450MM	190 KG
